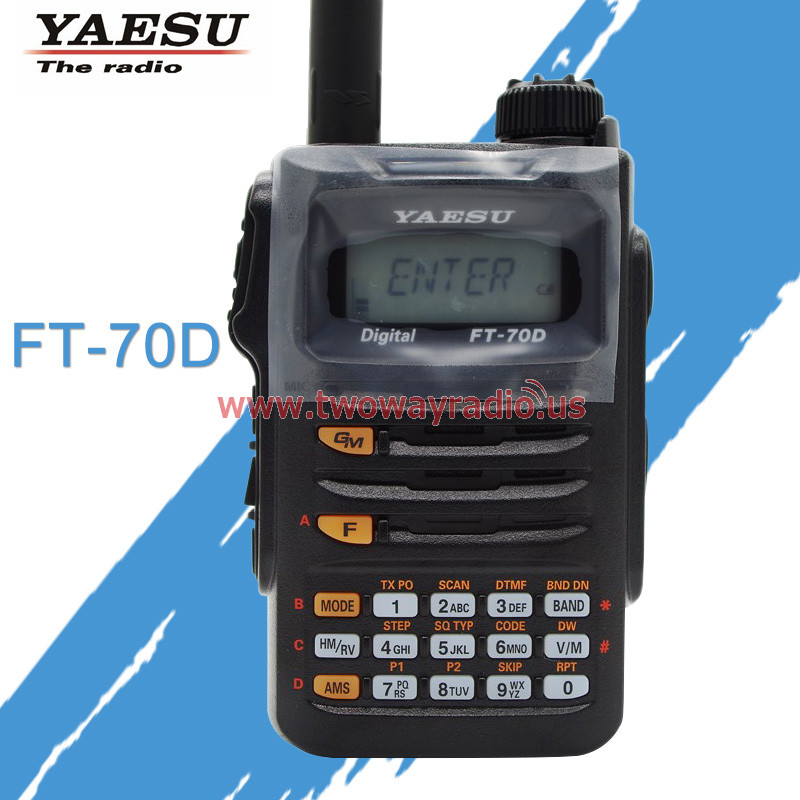

Yaesu FT-70D C4FM/FM Digital Walkie Talkie Dual Band 144/430 mHz Digital/Analog Transceiver
System compatible C4FM digital mode |
Provide clear audio |
Compatible with conventional FM mode and YAESU C4FM digital mode. Compared to other digital modes, C4FM digital mode has better bit error rate (BER) characteristics to ensure good voice quality during communication |
AMS coexists with traditional FM mode and digital mode friendly |
Large size multi-color LED mode indicator |
With excellent AMS capabilities, regular FM users and digital C4FM users can communicate bi-directionally. AMS automatically recognizes whether the received signal is a C4FM digital signal or a regular FM signal and switches the handset reception mode. Relative to the manual switch in communication mode, AMS automatic mode switching function, in use without any worries. The striking mode indicator LED shows the receive / transmit status |
Numeric ID display |
In C4FM digital mode, using the numeric group ID function, each group ID is easily set in a designated group of participants to facilitate communication. The group monitoring (GM) function automatically alerts the user that the group member ID being communicated in the communication sequence |
The DG-ID group operation is only available for C4FM digital walkie-talkies with DG-ID group operation. If your C4FM handset or your car’s DG-ID group operation has not been updated, please update your product’s firmware first. |
700mW audio power output |
Front speakers up to 32mm in size with 700mW of audio power for loud, crisp, clear audio |
Up to 1105 storage channels |
FT-7D provides the most convenient operating experience and rich information storage, including 900 conventional storage channels, 6 different frequency “HOME” channel, 99 temporary search channels, and 50 pairs of programmable storage scan channel |
Other functions: |
IP54 rating (dust and water protection) structural design |
Broadband receive coverage (108-579.995MHz) |
Scanning functions: (VFO programming scan, memory scan, priority channel scan) |
Meteorological Service Channel (US version) |
7.4V 1800mAh Lithium Battery Pack (SBR-24LI) |

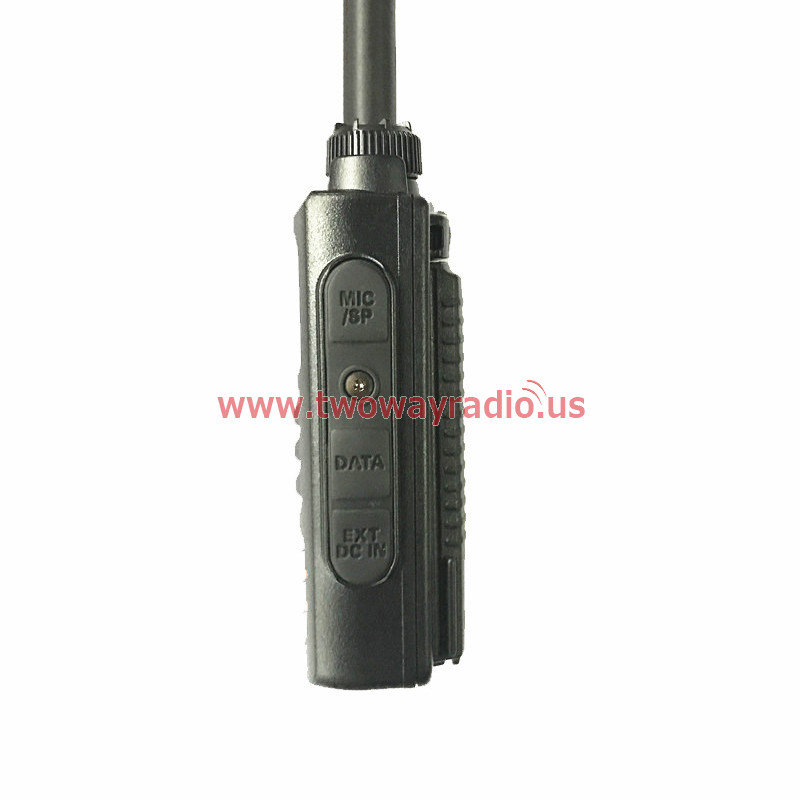

Equipped with a DC interface for external power supply can also be used to charge the battery |
Equipped MINI-USB port, can be used for storage management, but also for software upgrades |
Analog audio / digital audio |
RF Squelch |
Automatic shutdown function (APO) |
Time out disable function (TOT) |
Frequency range: receive 108-579.995MHz |
          Launch 140-174 MHz 420-470 MHz |
Circuit Type: Double conversion superheterodyne |
Modulation type: F2D, F3E, F7W |
RF Output Power: 5 W / 2 W / 0.5 W (@ 7.4 V or EXT DC) |
AF Audio Output: 700 mW (@ 16 ohms 10% THD: Built-in Speaker) |
Dimensions (W x H x D): 60 x 98 x 33 mm without antenna and knob |
Weight (approx.): 255g (with SBR-24LI battery and antenna) |
