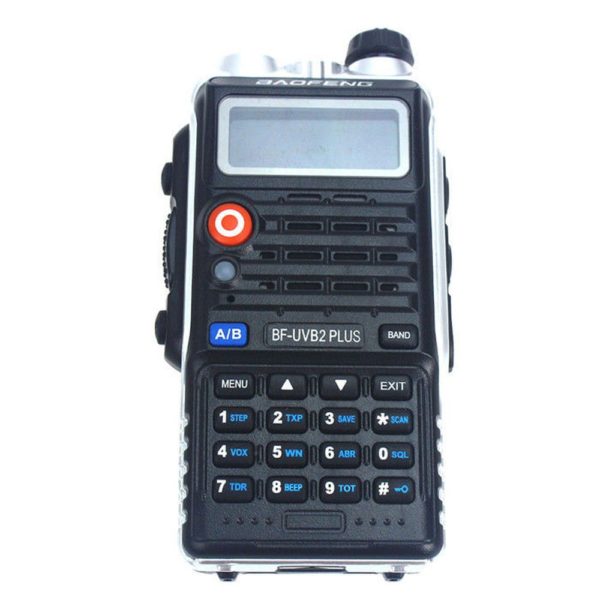

Baofeng BF UVB2 Plus Tri Band Portable Radio 136-174MHz 220-260MHz 400-520MHz

$44.00

Sold By: Baofeng

Description

Baofeng BF UVB2 Plus Tri Band Portable Radio 136-174MHz 220-260MHz 400-520MHz



TRI-BAND VHF 136-174MHz & 220-260MHz & 400-520MHz TWO WAY RADIO

Feastures:

. Dual-band handheld transceiver with display function menu on the display “LCD”
. DTMF encoded
. Lithium-ion battery with high capacity
. Commercial FM radio receiver (65 MHz ~ 108MHz)
. Incorporates 105 codes “DCS” and 50 privacy codes “CTCSS” programmable
. Function “VOX” (voice operated transmission)
. Alarm function
. Up to 128 memory channels
. Broadband (wide) / Narrowband (narrow), selectable
. High power / low (5W/1W) selectable
. Display illumination and programmable keyboard
. Function “beep” on the keyboard
. Dual watch/dual reception
. Selectable frequency step 2.5/5/6.25/10/12.5/25kHz
. Function “OFFSET” (frequency offset for repeater access)
. Battery saving function “SAVE”
. Timer transmission “TOT” programmable
. Selecting the Scan Mode
. Function Busy Channel Lock “BCLO”
. Built-in RX CTCSS/DCS scan
. Built-in LED flashlight
. Programmable by PC
. Level threshold “Squelch” adjustable from 0 to 9
. Crossband reception
. Tone end of transmission
. Built-in key lock

GENERAL

Frequency Range: VHF 136-174MHz 220-260MHz UHF 400-520MHz

Memory channels: Up to 128 channels

Frequency stability: 2.5ppm

Frequency step: 2.5/5/6.25/10/12.5/25kHz

Antenna impedance: 50Ω

Operating temperature: -20°C to +60°C

Supply voltage: Rechargeable Lithium-lon mAh 7.4V/1800

Consumption in standby: ≤75mA

Consumption in reception: 380mA

Consumption in transmission ≤1.4A

Mode of operation: Simplex or semi-duplex.

Duty cycle: 03/03/54 min. (RX/TX/Standby).

Dimensions: 58mm x 110mm x 32mm

Weight: 130g (approximate)

TRANSMITTER

RF power 4W/1W

Type of modulation FM

Emission class 16KΦF3E/11KΦF3E (W/N)

Maximum deviation ≤±5 / ≤±2.5kHz (W/N)

Supurious emissions <-60dB

RECEIVER

Receiver Sensitivity 0.2 V(at 12dB SINAD)

Intermodulation 60dB

Audio output 1000mW

Adjacent channel selectivity 65/60dB

PACKAGE CONTAIN
  • 1 x BAOFENG BF-UVB2 Plus (Tri-band 136-174MHz & 220-260MHz & 400-520MHz)
  • 1 x 7.4V 4800mah Li-ion Battery Pack
  • 1 x Antenna
  • 1 x Belt Clip
  • 1 x Desktop Charger ( 100V ~ 240V )+(2pin USA or 3pin UK or 2pin EURO or 2pin Australia)
  • 1 x ENGLISH USER MNUAL
  • 1 x PTT Earpiece for free
