Sale!

2018 Upgraded GPS TYT MD-UV390 IP67 Waterproof UV Dual Band Handheld DMR Transceiver

$148.00$158.00

Clear
Sold By: TYT | Tytera

Description

2018 Upgraded GPS TYT MD-UV390 IP67 Waterproof UV Dual Band Handheld DMR Transceiver

TYT MD-UV390 DMR 5W Digital Walkie Talkie, UHF 400-480MHz & VHF 136-174 MHz Dual-Band 1000 Channels Two Way Radio, GPS Function, IP67 Waterproof & Dustproof Compatible with Mototrbo



  • To fully utilize all the features you have to use Windows PC to program this radio. Not Compatible with CHIRP and RT systems software.
  • TYT MD-UV390 GPS model is a Dual Band DMR/Analog radio IP67 waterproofed Compatible with Mototrbo Tier Ⅰ & Ⅱ Dual time slot Frequency Band:136-174 & 400-480MHz Use Time-Division Multiple-Access (TDMA)digital function Dual time slot for repeater and point to point Lone worker Encryption function Single/group/all call Analog and digital combined Dual Standby Remote kill/stun/activate Comply with digital protocol ETSI TS 102 361-1,-2,-3
  • Color LCD display Transmit interruption Private/Group call match off = Promiscuous on Digital and Analog Monitor mode Voice Record (Option with firmware update) CTCSS/DCS Emergency Alarm VOX TOT Talk around Squelch Keypad lock LED Indicator Password Lock Clock (with time zone)
  • Firmware upgradeable
  • 1 x TYT MD-UV390 GPS model Dual Band Digital Mobile Radio (DMR) 1 x USB Programming Cable 2 x Antenna 1 x Li-ion Battery 2200mAh 1 x Belt Clip 1 x Charger 1 x Adapter (Input:110-250V 50Hz) 1 x User’s Manual



  • 1. TYT Handheld Transceiver Series, ONE YEAR U.S Based Warranty, Warehouse (Domestic Return) in CA State–No Further Return Issue.
  • 2. Upgraded Version of TYT MD-390, With GPS Functions, Dual Band VHF: 136-174MHz/UHF: 400-480MHz, Rugged IP67 (Waterproof/Dustproof) , Handheld with Dual Mode Digital/Analog, 5/1W Output Power, 1000 Channels.
  • 3. Features: Updated Firmware/Software available for new Features; Remote Kill/Stun/Activate; Voice Prompt; Encryption Function; Built-in CTCSS/DCS; Priority Scan; Complying with Digital Protocol ETSI TS 102 361-1, -2, -3; Compatible with MotoTRBO Tier 1 & 2; DTMF decoding and encoding; Private Call, Group Call, All Call & Text Messages in Digital Mode.
  • 4. Programming cable for easier Computer/PC (Microsoft Window 7/8/10 ONLY, No Mac supported) programming, Useful Tips on MIKLOR or FB Group, Free Driver/Firmware/Programming Software available on manufacturer TYT official website, Mess of video tutorials on YouTube (KEY: MD380Tools firmware & Codeplug from DMR-MARC site)
  • 5. Package includes:

TYT MD-UV390 GPS

7.4 V 2000mAh Li-ion Battery Pack,

Stubby 3 3/4″ (10cm) & Whip 6 3/4″ (17cm) Antenna,

Belt Clip,

Adapter,

Desktop Charger,

Programming Cable,

Earpiece with PTT,

User Manual



TYT MD-UV390 GPS Model waterproofed Dual Band DMR Tier I & II /Analog 144 & 430MHz Radio

Let’s Get Ready

We do not sell liquidation items

With USB programming cable!

In Stock in Los Angeles CA USA, Ships Fast!

Includes Programming Cable & Windows PC software

All radio items ship from Los Angeles CA USA



Description

TYT MD-UV390 GPS model is a Dual Band DMR/Analog radio

IP67 waterproofed

Compatible with Mototrbo Tier Ⅰ & Ⅱ Dual time slot

Frequency Band:136-174 & 400-480MHz

Use Time-Division Multiple-Access

(TDMA)digital function Dual time slot for repeater and point to point

Lone worker

Encryption function

Single/group/all call

Analog and digital combined Dual Standby

Remote kill/stun/activate

Comply with digital protocol ETSI TS 102 361-1,-2,-3

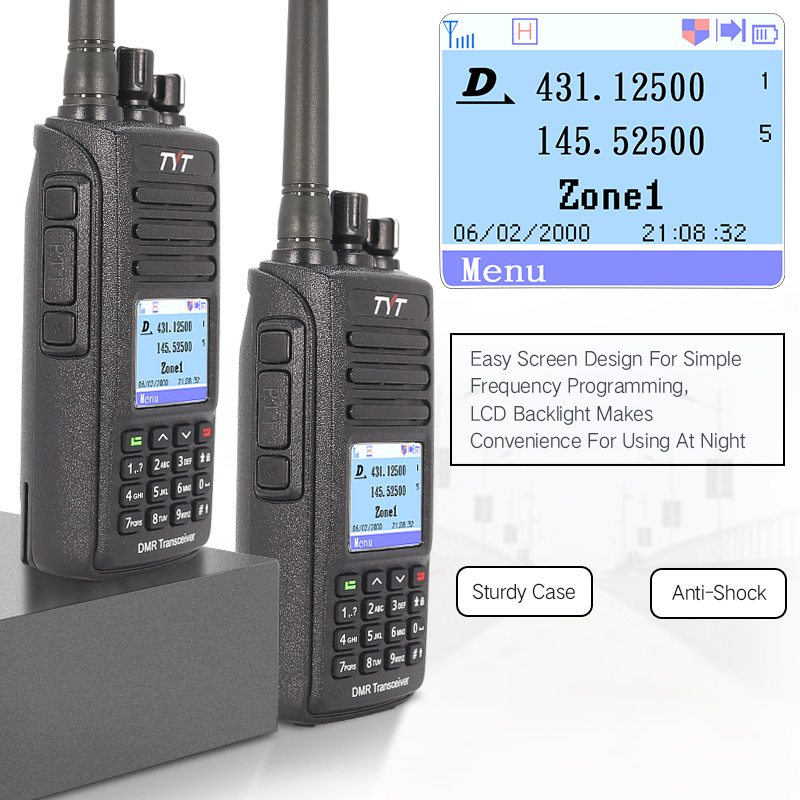

Color LCD display

Transmit interruption

Private/Group call match off = Promiscuous on

Digital and Analog Monitor mode

Voice Record (Option with firmware update)

CTCSS/DCS

Emergency Alarm

VOX

TOT

Talk around

Squelch

Keypad lock

LED Indicator

Password Lock

Clock (with time zone)

Firmware upgradeable



Specifications

General Specification
Frequency 136-174 & 400-480MHz VHF and UHF Dual Band
Channel 3000
Frequency Stability ± 1ppm
Operating Temperature -30℃~+60℃
Operating Voltage 7.4V DC
Dimension(Hxuxd) 131 x 61 x 36 mm
Weight 258g (with battery)
Battery Type Li-in
Battery Capacity 2200mAh
Antenna impedance 50Ω
Audio output power 1W @ 16Ω
Channel Spacing 12.5KHz
Transmitter
Power UHF≦4W, VHF≧5W
Transmitter current Analog≦1.6A Digital≧0.9A
Standby current 0.18A
FM modulation mode 11K0F3E @ 12.5KHz
14K0F3E @ 20KHz
16K0F3E @ 25KHz
4FSK digital mode 12.5KHz (data only0):7K60FXD
12.5KHz (data and voice):7K60FXW
Modulation distortion <5%
Hum & Noise ≧45dB@25KHz
/≧40dB@12.5KHz
Adjacent channel power ≦60dB@12.5KHz
Audio response +1~-3dB
Digital protocol ETSI-TS102 361-1,-2,-3
Receiver
Analog Sensibility 0.2μV @ 12dB SINAD
Digital Sensibility 0.25μV(BER:5%)
Adjacent Channel Selectivity ≦-60dB@12.5KHz
Co-channel rejection ≧65dB
Spurious response ≧70dB
Audio response +1~-3dB
Rated audio distortion <5%
Audio power 1W
Modulation noise ≧45dB@25KHz
/≧40dB@12.5KHz



TYT-MD-UV390-GPS

TYT-MD-UV-390 GPS IP67 Walkie Talkie DMR, Dual ANALOG and DIGITAL band 144/430 MHz with digital protocol ETSI TS 102 361-1, -2, -3

It has CE and FCC certifications, with 3000 channels and 100,000 contacts; provides clear voice communications.
Approved for radio-connection.
Includes programming cable TLUSB-308 for PC.

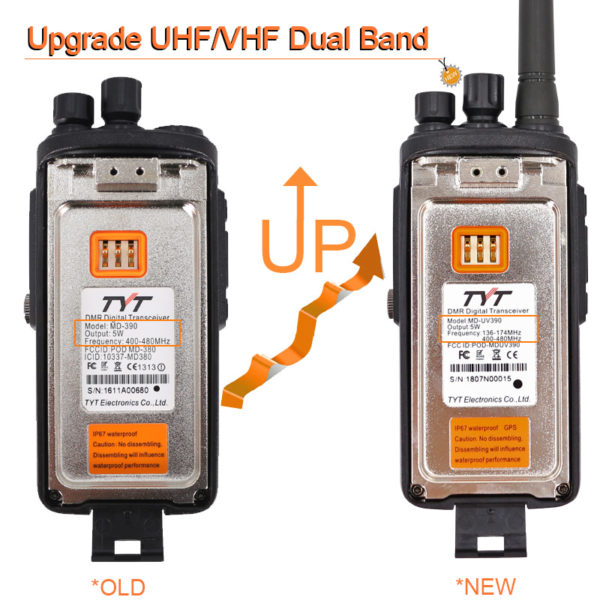

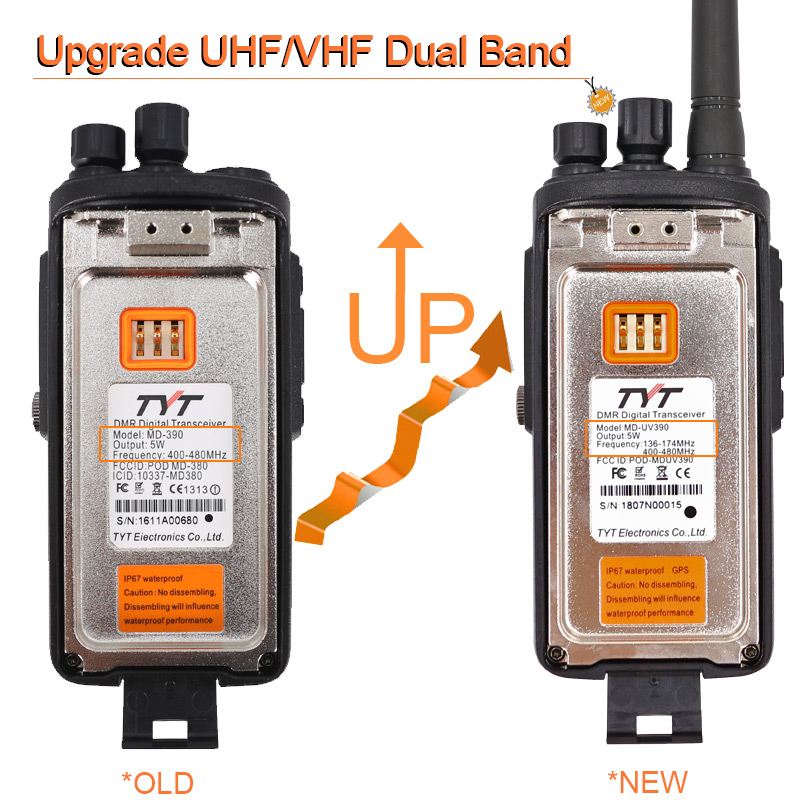

Difference between MD-UV380GPS and MD-UV390GPS

MD-UV380GPS does not have IP67
MD-UV390GPS has IP67 dust and water protection, is the only difference with the MD-UV380GPS



NEW DUAL BAND RADIO FROM TYT!
GPS VERSION

Brand new dual band version of the very popular MD-390.

Come with programming cable, download software from the Downloads Tab on this website.



The MD-UV390, just like the monoband 390, has a stronger shell/case and is supposedly waterproof.  I wouldn’t try to use it when swimming, but if you get it rained on, it should survive better than the MD-UV380 model. Internally, they are the same radio.

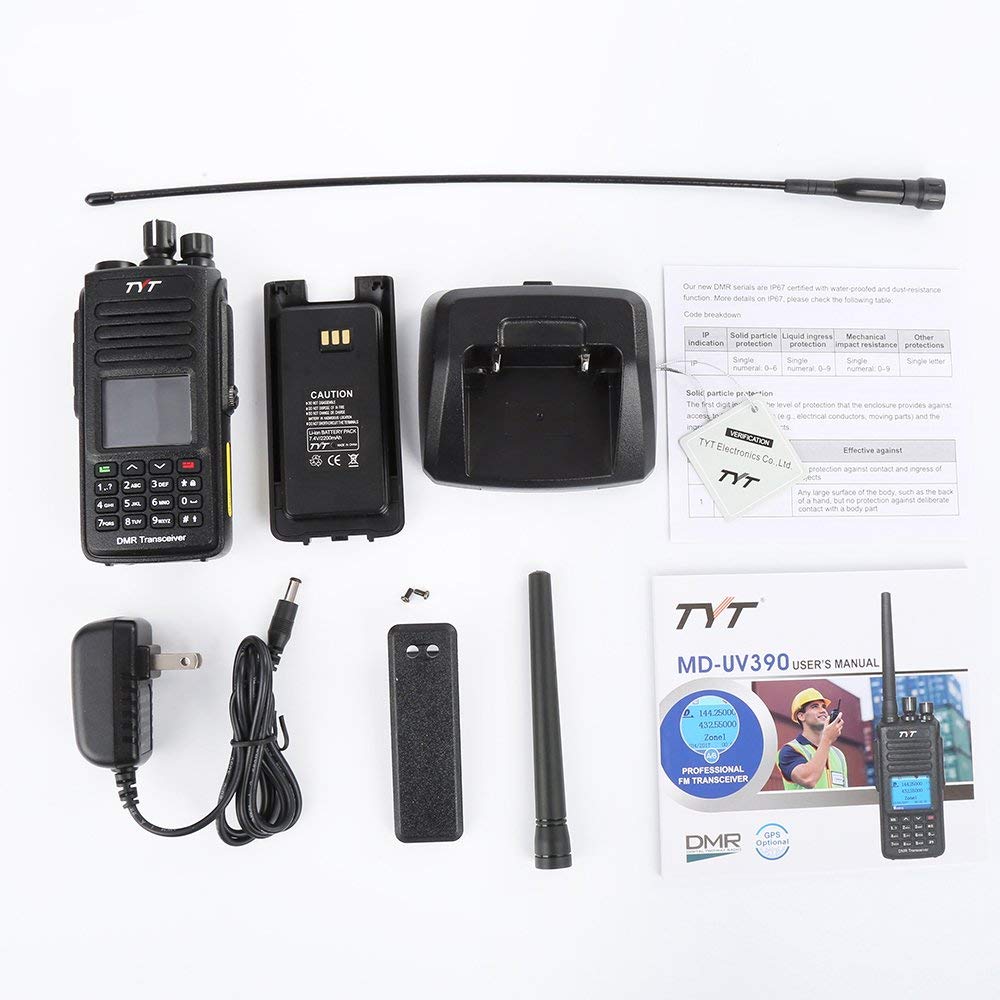

Package Includes:

1 x TYT MD-UV390 GPS model Dual Band Digital Mobile Radio (DMR)

1 x USB Programming Cable

2 x Antenna

1 x Li-ion Battery 2200mAh

1 x Belt Clip

1 x Charger

1 x Adapter (Input:110-250V 50Hz)

1 x User’s Manual



If any questions Or bulk order, please contact Ms. Amy Huang:

Email:  sales@twowayradio.us

WhatsApp / Skype: +8613860123881

Tel: 86(592)5995025

Fax: 86(592)3720556

Hits: 285

Additional information

Weight 1 kg
Dimensions 300 × 200 × 100 cm
