Baofeng BF-A58 IP67 Waterproof Dual Band FM Transceiver

Original price was: $68.00.Current price is: $46.00.

& Free Shipping
Guaranteed Safe Checkout
Sold By: Baofeng

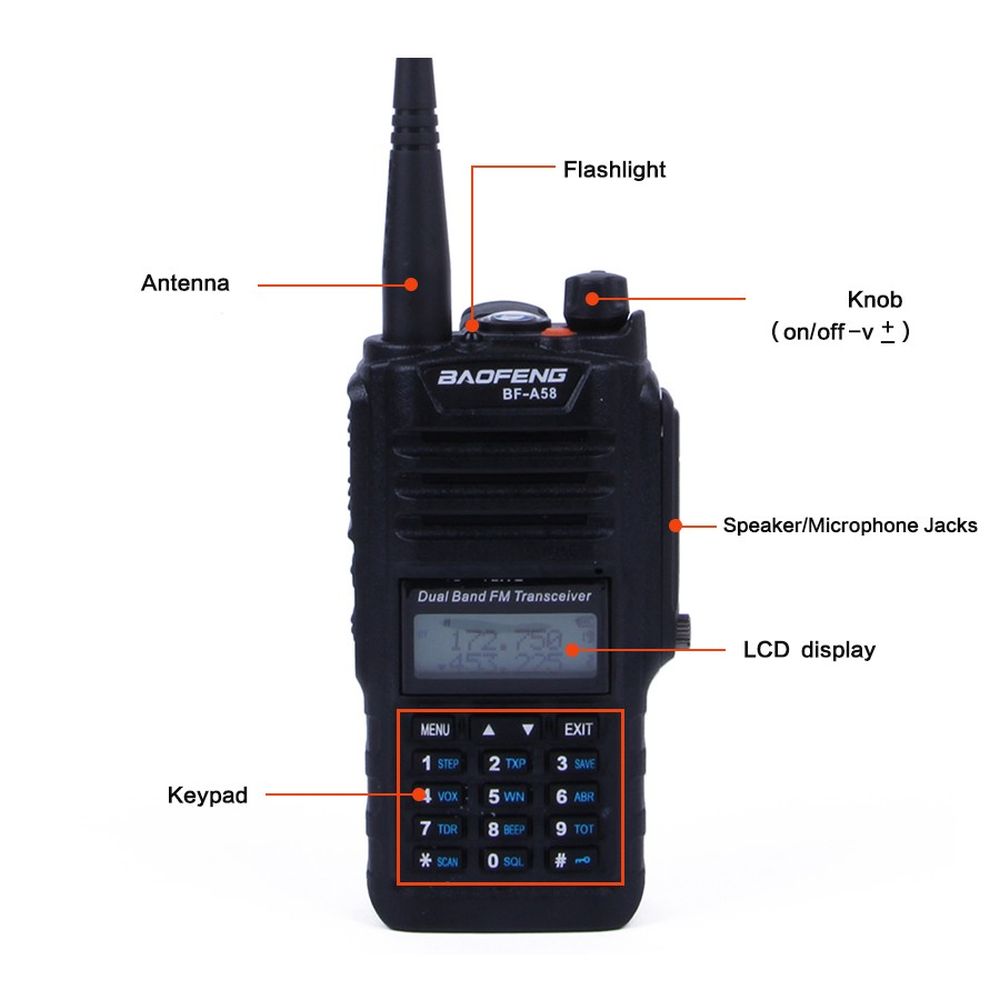

Baofeng BF-A58  UHF VHF IP67 Waterproof Dual Band FM Transceiver

IP67 Waterproof Transceiver

Sound loud
Using 40mm large-caliber speakers, with professional-grade audio amplifier circuit design, issued a loud voice to meet the complex needs of the hearing environment.
Intelligent Design Waterproof Transceiver
Dot matrix LCD screen with Chinese and English voice prompts, friendly interface, more convenient to control and select the function.
Double Standby
Double, double significant, dual frequency waiting, U / V segment relay cross-section transceiver, user-friendly network at any time.
Large capacity channel storage
Up to 128 memory channels are available for programming frequency and various other data.
Rich signaling
Each channel can set different CTCSS / DCS, DTMF signaling, reject redundant calls from other stations.
The tail is eliminated
Tail to eliminate, to avoid the end of the call after the impact of noise emitted by the speaker, to avoid the user by the impact of noise.
VOX voice transmission
Voice-activated transmission function (VOX), allowing users to liberate their hands, without pressing the PTT button to normal call.
Pilot and scrambling functions
Equipped with the use of the cluster network transmission pilot, scrambling function, to adapt to a variety of complex conditions set requirements.
Full manual operation
Menu item keyboard digital direct election function, the transmission and reception frequency can be input directly.
High / low power switch
Users can set the channel power through the computer programming software for high power or low power, or manually switch the high and low functions, according to the actual use of the environment and distance requirements, select a reasonable power, effectively save power.
Three anti-design
One meter of water soak for half an hour is still normal and stable work, the choice of PCABS engineering materials to ensure that 1.5 m drop shell does not fission.

Feature:

1. Dual Band 136-174MHz & 400-520MHz

2. IP67 Waterproof Dustproof

3. Dual band, Dual display, Dual standby

4. Commercial FM radio receiver(65Mhz-108MHz)

5. Relay forwarding confirmed (1750Hz)

6. Emergency SOS sound and light alarm

Functions:

1) Output : 8W(H)/4W(M)/1W(L) （Max.Power: 8W）

2) Frequency Range: 136.00-174.00 MHz  400.00-520.00MHz

3) IP57 waterproof and dustproof (Not diving)

4) High &Low Power Switchover

5) Battery Saving

6) VOX Function

7) Wide/Narrow Band Selection

8) Auto-Back Light

9) Dual Band Standby Waterproof Transceiver

10) Time-out Timer (TOT)

11) 50 CTCSS and 104 DCS Codes

12) Voice Prompt

13) ANI Code

14) PC or Manual Program Waterproof Transceiver

15) DTMF Code

16) PTT-ID

17) ATUO Keypad Lock

18) Busy Channel Lock Function

19) Dual Band, Dual Display and Dual Standby

20) Emergency Alarm

21) Priory Scanning Function

22) Relay Forwarding Confirmed (1750 HZ)

23) Low Battery Warning

24) U/V Cross Band Dual Watch Waterproof Transceiver

Specification

All of our item are brand News
Model BAOFENG BF-A58
Frequency Range VHF:136-174MHzUHF:400-520MHz
Channel capacity 128CH
Output power 5W 1W
Operating Voltage DC7.4V
Antenna Impedance 50ohm
Working Temperature -20°C—+60°C
Mode of operation Simplex or semi-duplex
Frequency stability 2.5ppm
Frequency Spacing 2.5/5/6.25/10/12.5/20/25kHz
Battery capacity 1800mAh
Color Black
Dimensions (Exclude antenna) 110x58x32mm
Weight (Include Battery) 260g
Feature
CTCSS/DCS 50 CTCSS and 104DCS codes
Dual band, Dual display, Dual standby Yes
IP 57 Waterproof and dustproof Yes
High power/mid/low(5W/3W/1W)selection Yes
Up to 128 Memory channels Yes
Cross band reception/transmission Yes
Battery Saving Yes
VOX(voice operated transmission) Yes
Wide/Narrow band selection Yes
Tone end of transmission Yes
Auto-Back light Yes
Dual band standby Yes
Time-out timer(TOT) Yes
Voice prompt(English /Chinese) Yes
DTMF emergency alarm Yes
ANI code PTT-ID Yes
Frequency reverse Yes
Auto keypad lock Yes
Busy channel lock function Yes
Emergency SOS sound and light alarm Yes
PC software or Manual program Yes
Priory scanning Function Yes
Commercial FM radio receiver(65Mhz-108MHz) Yes
Relay forwarding confirmed(1750Hz) Yes
Low Battery warning Yes
Display illumination and programmable keyboard Yes
Specification
Type of modulation FM
Emission class 16k¢F3E/11¢F3E(W/N)
Maximum deviation <=±5kHz/<=±2.5kHz(W/N)
Spurious emission <-60dB
Receiver sensitivity 0.2µW(At 12dB SINAD)
Inter modulation 60dB
Audio output 1W
Spurious Radiation >=65dB
Consumption in standby 380mA
Consumption in transmission <-1.4A

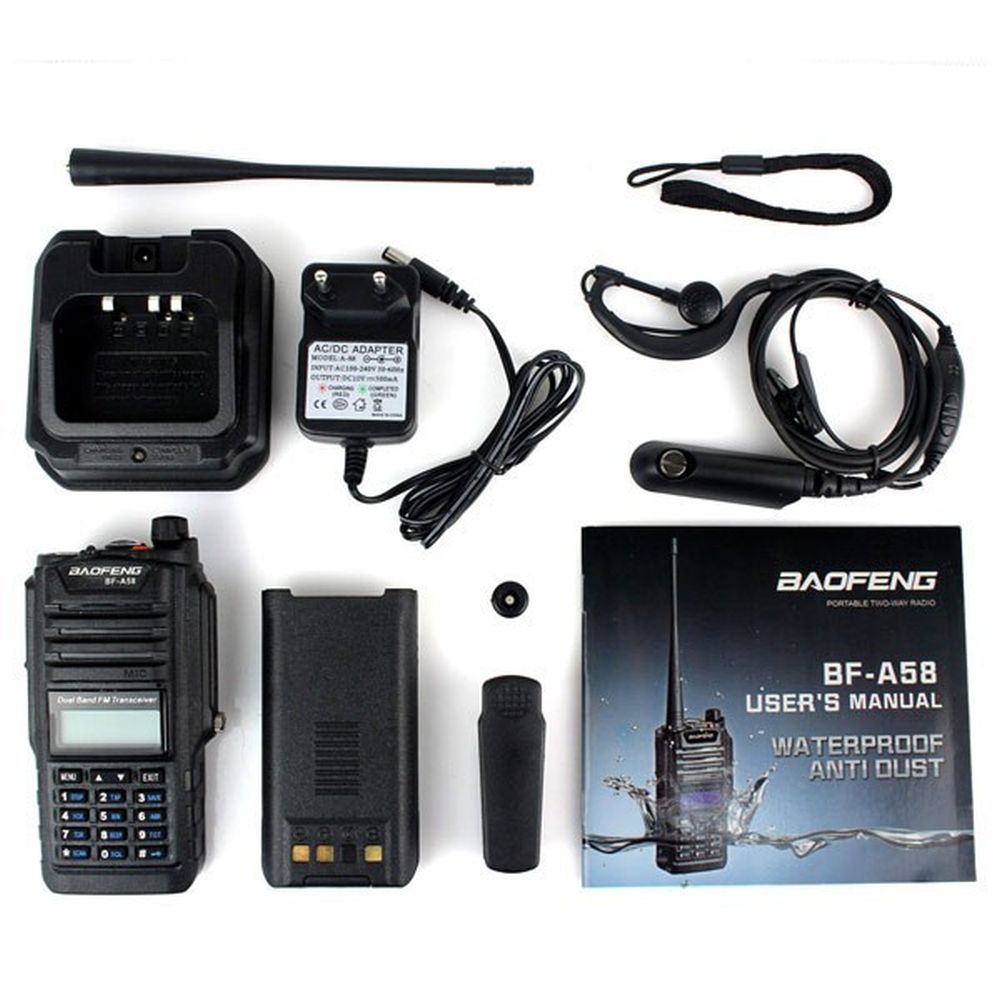

Package Include:

1 x Baofeng BF-A58 Portable Waterproof Transceiver

1 x U/V Dual Band Antenna

1 x Li-ion battery pack

1 x Charger

1 x Belt clip

1 x Sling

1 x User´s manual

1 x Waterproof PTT Headset
