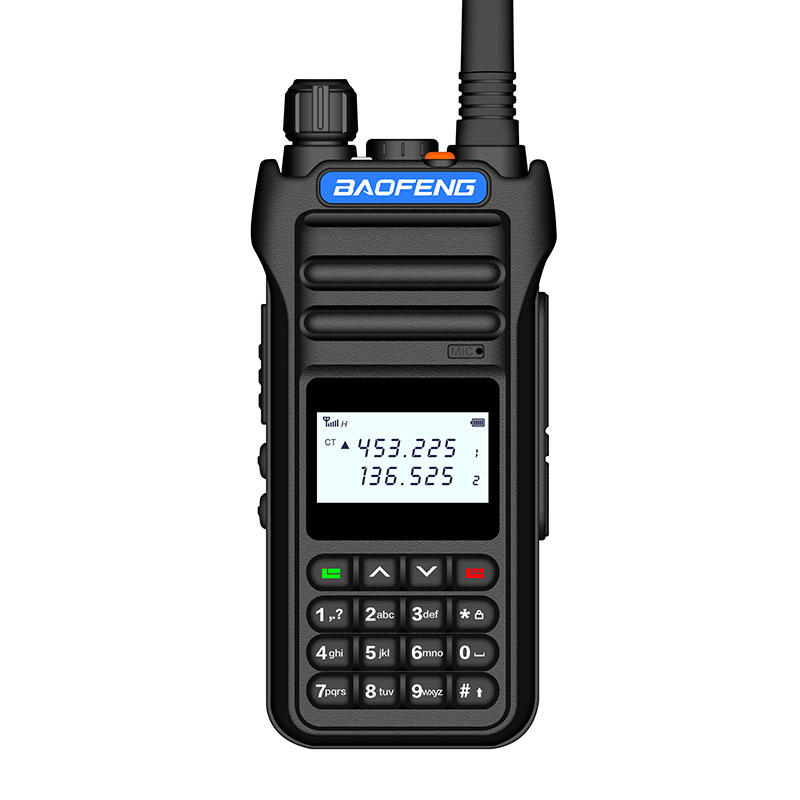

Baofeng BF-8000D 10W 30km Walkie Talkie High Power Dual Band Handheld Two Way Radio Communicator HF Transceiver Amateur Handy
Features :
1. 5-20 km signal coverage
2. 1-7 days long standby time, IP65 waterproof
3. Automatic scanning , Flashlight/radio function , Optional signaling , Alarm function , Adjustable high and low strategy , UV dual-segment transceiver adjustment , Relay tail cancellation , Boot display icon
4. Full-band three-segment walkie-talkie, switch at will
2. 1-7 days long standby time, IP65 waterproof
3. Automatic scanning , Flashlight/radio function , Optional signaling , Alarm function , Adjustable high and low strategy , UV dual-segment transceiver adjustment , Relay tail cancellation , Boot display icon
4. Full-band three-segment walkie-talkie, switch at will
Specification :
| Overall | frequency range | UHF:136-174MHz/400-520MHz |
| Channel capacity | 128 | |
| Channel spacing | 25/12.5kHz | |
| Input voltage | 7.4 VDC | |
| Battery (standard ) | 9500mAH(Li-lon) | |
| Battery life
(5-5-90, off power emission) |
About 14 hours | |
| Standby | ≤65mA | |
| Receive | ≤ 450 mA | |
| Launch | ≤1.2A@ High Power,650mA@ Low Power | |
| Frequency stability | ±2.5ppm | |
| Operating temperature | -30℃ to +60℃ | |
| Antenna impedance | 50Ω | |
| Walkie-talkie size
(with battery, but without antenna) |
95 x 95 x 35MM | |
| Walkie-talkie weight
(including antenna and battery) |
195g | |
| Transmitting part | Transmitting output power | 10W |
| Modulation method | 16K0F3E@25KHz, 11K0F3E@12.5KHz | |
| Spurious emission | -36dBm<1GHz, -30dBm>1GHz | |
| FM signal ratio | 45dB@25KHz, 40dB @12.5KHz | |
| Audio distortion | ≤5% | |
| Modulation limit | ±5.0 KHz@25KHz,±2.5KHz@12.5KHz | |
| Adjacent channel power | 70dB @ 25KHz, 60dB @ 12.5KHz | |
| Audio response (300-3000HZ) | +1~3dB | |
| Receiving part | Receive sensitivity | 0.25≥v(12dB SINAD) |
| Adjacent channel selectivity | ≥60dB@25KHz , ≥55dB@12.5KHz | |
| Intermodulation immunity | ≥60dB@25KHz, ≥55dB@12.5KHz | |
| Conducted spurious emission | ≤57dB@25KHz, ≤-57dB@12.5KHz | |
| FM signal to noise ratio | ≥45dB@25KHz, ≥40dB @12.5KHz | |
| Audio output power | 0.5W @8 ohms | |
| Audio distortion | ≤5% | |
| Audio response (300-3000HZ) | +1~-3dB |
Package includeds :
1 x Baofeng BF-8000D Walkie Talkie
1 x User’s manual
1 x User’s manual
Details pictures :
