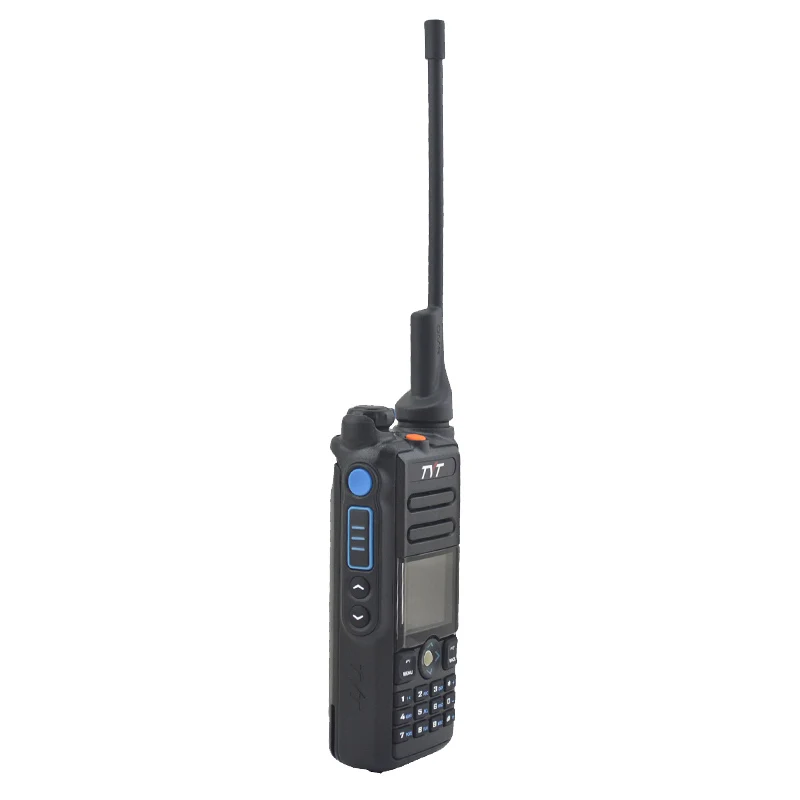

TYT MD-2017 Dual Band DMR Digital Portable Two-way Radio TDMA Digital Function Dual Time Slot for repeater
Main Function:
Frequency Band：Dual Band 136-174 &400-480MHz
1000 Contacts
IP67 Waterproof
Use Time-Division Multiple-Access (TDMA)
(TDMA) Digital Function
Dual Time Slot for repeater
Dual Time slot for point to point
Firmware upgradeable
Lone Worker
Encryption function
Compatible with Mototrobo Tier I &II
Single call, group Call and all Call
Analog and digital Combined
Remote kill/Stun and active
Comply with digital protocol ETSI TS 102 361-1,-2,-3
Color LCD Display
Up to 3000 channels
Transmit interruption
Group call match (Promiscuous)
Private call match (Promiscuous)
Specifications:
|
General |
|
|
Frequency |
136-174 & 400-480MHz |
|
Channels |
3000 |
|
Frequency Stability |
±1ppm |
|
Operating Temperature |
-30°c~ +60°c |
|
Operating Voltage |
7.4V DC |
|
Dimension (H×W×D) |
131.5×36.8×64mm |
|
Weight |
300g (With battery) |
|
Battery Type |
Li-ion |
|
Antenna Impedence |
50 ohm |
|
Audio Output Power |
1W 16 ohm |
|
Channel Spacing |
12.5KHz |
|
Transmitter |
|
|
Output Power |
UHF≤5W, VHF≥4W |
|
Transmit Current |
Analog≤ 1.6A, Digital ≤ 0.9A |
|
Standby Current |
0.18A |
|
FM Modulation Mode |
11K0F3E 12.5KHz 14K0F3E 20KHz 16K0f3e 25KHz |
|
4FSK Digital Mode |
12.5KHz (Data only):7k60FXD 12.5KHz (data and voice): 7K60FXW |
|
Modulation Distortion |
≤5% |
|
Hum and Noise |
≥45dB 25KHz ≥40dB 12.5KHz |
|
Adjacent Channel Power |
≤60dB 12.5KHz |
|
Audio Response |
+1~-3dB |
|
Digital Protocol |
ETSI-TS102 361-1,-2,-3 |
|
Receiver |
|
|
Analog Sensibility |
0.2μ V 12Db SINAD |
|
Digital Sensibility |
0.25μ V(BER:5%) |
|
Adjacent Channel Selectivity |
≤-60dB 12.5KHz |
|
Co-Channel rejection |
≥65dB |
|
Spurious Response |
≥70dB |
|
Audio Response |
+1~-3dB |
|
Rated Audio Distortion |
≤5% |
|
Audio Power |
1W |
|
Modulation Noise |
≥45dB 25KHz ≥40dB 1.5KHz |
|
NOTE: Specifications will be revised without notice due to technical improvement. Thank you! |
|
