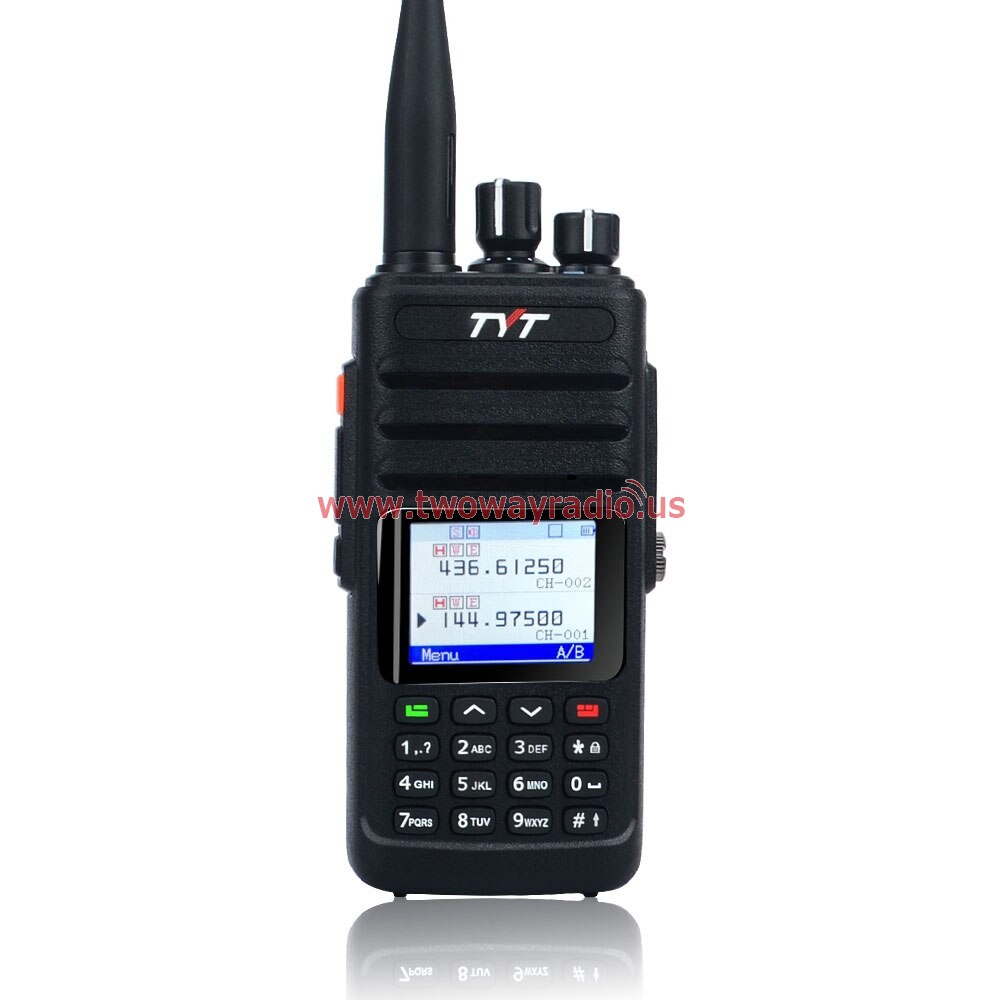

10w walkie talkie TYT TH-UV8200 IP67 Waterproof DUAL BAND GPS DTMF Portable FM two way radio analog VOX 256CH color diplay radio
Features:
- IP67 waterproof analog two way radio
- Dual Band,dual display,Duan wait and dual standby
- 256 groups of memory channels
- Wide/Narrow bandwidth selection (25kHz/12.5kHz)
- Handsfree VOX function
- English/Chinese Voice prompt
- CTCSS/DCS encoding and decoding
- Non-standard CTCSS/DCS input
- Auto Scan
- ANI function
- FM radio receiver and 25 memory radio stations
- PC program
- 1750 Tone
- DTMF decoding and encoding
- Remote stun,kill and activated
- Man down
- 1.77 inch color Display
- Emergency alarm
- Roger beep
- Tail tone elimination
- GPS position
- Step: 0.50/2.50/5.00/6.25/10.0/12.5/25.0/37.5/50.0/100KHz
Specifications
|
General |
|
|
Frequency Range |
136-174MHz & 400-520MHz |
|
Frequency Stability |
±2.5ppm |
|
Channel Capacity |
256 channels |
|
Operating Voltage |
DC 7.2V |
|
Antenna |
SMA-Male Dual band High gain antenna |
|
Antenna Impedance |
50 ohm |
|
Mode of operation |
Same or different frequency simplex |
|
Dimension (H*W*D) |
120*55*33mm |
|
Transmitter |
|
|
RF POWER |
High≤ 10W Low ≥5W |
|
Modulation Type (Wide/Narrow band) |
16K Ø F3E/11K Ø F3E |
|
Max. Fr. Deviation (Wide/Narrow band) |
≤ 5KHz/≤ 2.5KHz |
|
Adjacent Ch. Power(Wide/Narrow band) |
≤-65dB/≤ -60dB |
|
Spurious Power |
≤7µW |
|
Pre-emphasis character |
6dB/Each frequency doubling the increment |
|
Modulated noise |
<-40dB |
|
Current |
≤2.8A(10W) ≤1.8A(5W) |
|
DCS/CTCSS Frequency deviation |
0.6KHz ±0.15KHz,0.4KHz± 0.1KHz |
|
Intermediation sensitivity |
8~12mV |
|
Modulation distortion |
<5% |
|
Receiver |
|
|
Reference Sensitivity |
<-122dBm (12Db SINAD) |
|
Audio power |
1W |
|
Audio Distortion |
<5% |
|
Blocking |
≥85 |
|
Inter-modulation (wide/Narrow band) |
≥60dB ≥55dB |
|
Adjacent Ch. Selection |
≥65dB ≥60dB |
Note: Specifications will be revised without notice due to technical improvement. Thank you.
Package Contains:
1 x TH-UV8200 Dual Band GPS radio
1 x DC7.4V 2200mAh Li-ion battery Pack
1 x 16.5cm SMA-MALE standard antenna
1 x 37.5cm SMA-Male high gain antenna
1 x Belt clip
1 x Desktop charger
1 x 110-250V AC Adapter
1 x English Users’ manual
