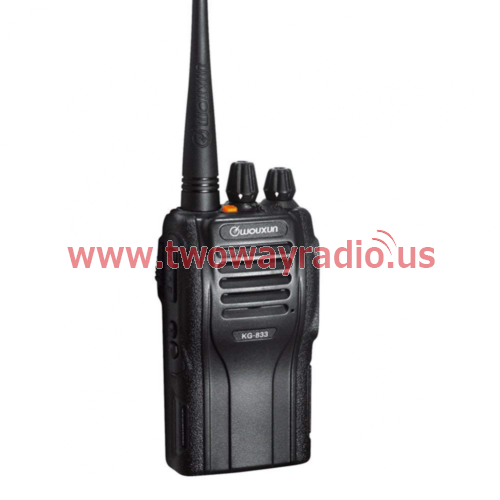

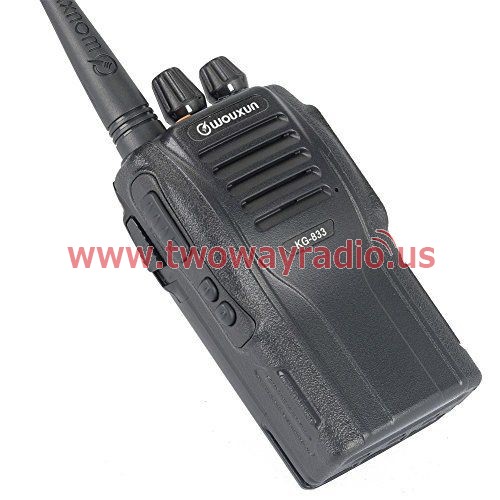

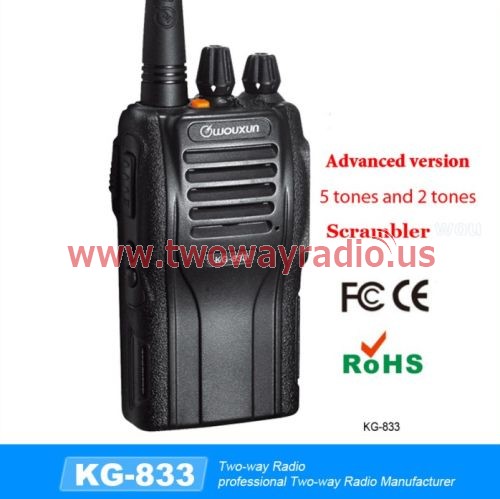

Wouxun KG-833 Advanced Scrambler FC CE RoHS UHF VHF KG833 Walkie Talkie
| Main Features |
| . 16 memory channels |
| . Output power UHF 4W |
| . High/Low power can changeable by top key |
| . VOX (Level adjustable) |
| . DTMF encoding and DTMF decoding |
| . 105 groups D.C.S/50 groups CTCSS |
| . DCS/CTCSS of RX and TX can be set respectively |
| . Busy channel lockout |
| . Distant alarm |
| . Multi scan mode (TO/CO/SE) |
| . Inspection, monitor, stun, kill and emergency alarm |
| . Calling ring and ring overtime auto answer |
| . Multi silent mode (QT/QTADT/QTXDT) |
| . Channel steps (5K/6.25K/10K/12.5K/25K) |
| . Wide/Narrow bandwidth selection (25KHz/12.5KHz) |
| Optional Features |
| . 5/2 tone and 1750Hz burst tone |
| . Priority scan |
| Digital FM radio |
| Remark:
If the radio with above optional features, it will available 200 Memory channels |
| Super Features |
| . Voice guide (Chinese / English) |
| . Side key programmable |
| . Wireclone function |
| . Program by software |
| . Come with 1300mAh/1700mah Li-ion battery and intelligent charger |
| Technical Specification | |
| Frequency Range | UHF: 400-470MHz / VHF: 136-174MHz |
| Channel Capacity | 16 |
| Channel Spacing | 25/12.5KHz |
| Maximum Deviation | ±5KHz to 25KHz ±2.5KHz to 12.5KHz |
| Frequency Stability | ±2.0ppm |
| Operating Voltage | 7.4V |
| Operating Temperature | -30℃～+60℃ |
| Battery | 1300/1700mAh(Li-ion) |
| Standby Current | 50mA |
| Antenna Impedance | 50Ω |
| Dimension(without antenna＆battery(L×W×H) | 103×62×39(mm) |
| Weight(with antenna＆battery) | 242g |
| Transmitter | |
| RF Power Output | 4W |
| Modulation | 16KфF3E/11KфF3E |
| Spurious and Harmonious | -36dBm＜1GHz -30dBm＞1GHz |
| FM Noise | 40dB |
| Adjacent Channel Power | 70dB/60dB |
| Audio Distortion | ≤5﹪ |
| Receiver | |
| Sensitivity(12dB SINAD) | 0.25μV |
| Selectivity | 60dB |
| Intermodulation | 60dB |
| Spurious Response Rejection | 65dB/70dB |
| Audio Power Output | 500mW |
| Audio Distortion | ≤3﹪(0.5W) |

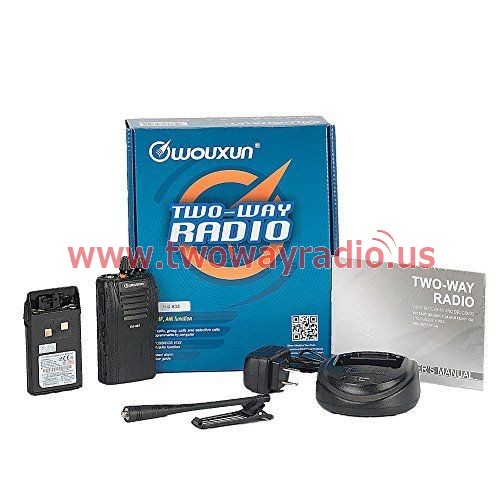

| Each Set PACKAGE CONTAIN |
- 1x Wouxun KG833 Walkie Talkie
- 1x 7.4 1400mah Battery Pack.
- 1x Antenna.
- 1x Wrist Strap
- 1x Belt Clip
- 1x English Manual
- 1x Earpiece
- 1x Desktop Charger
- 100V ~ 240V PSU ( Provide Plug for USA / UK / EURO / Australia)
