Sale!

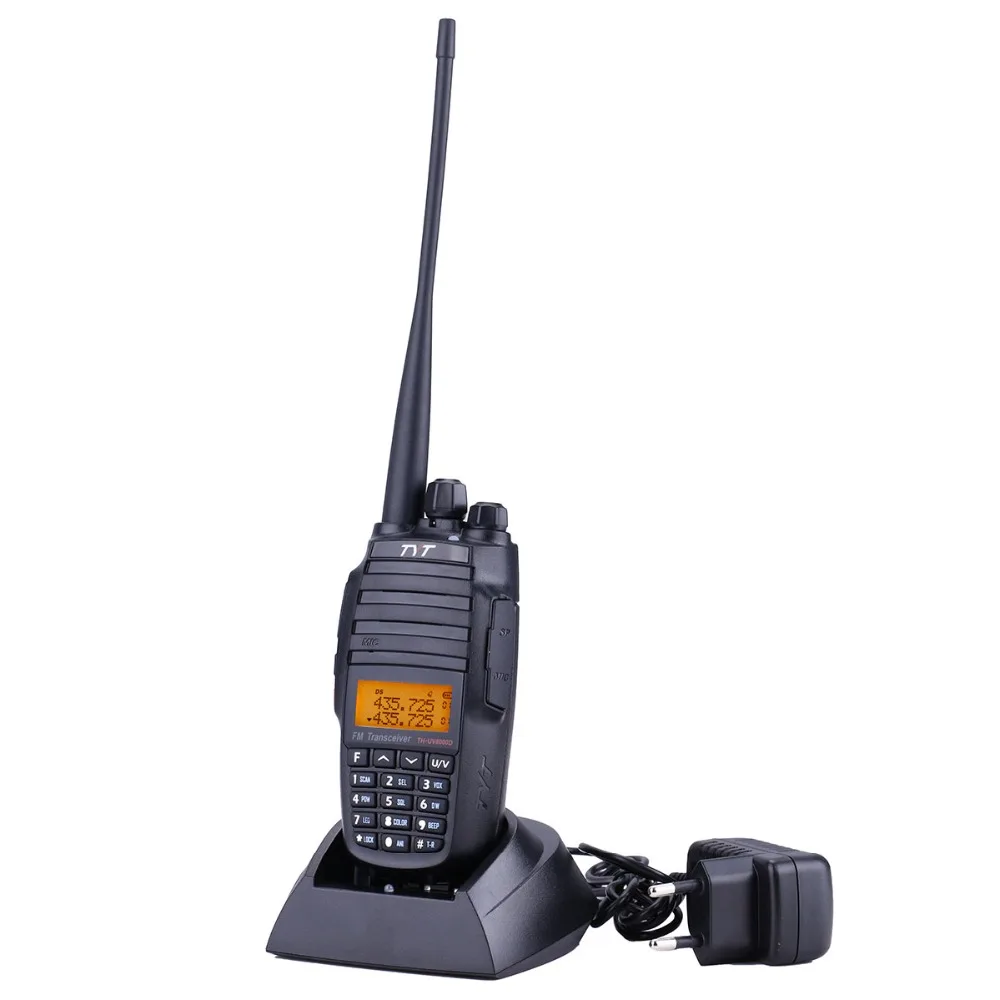

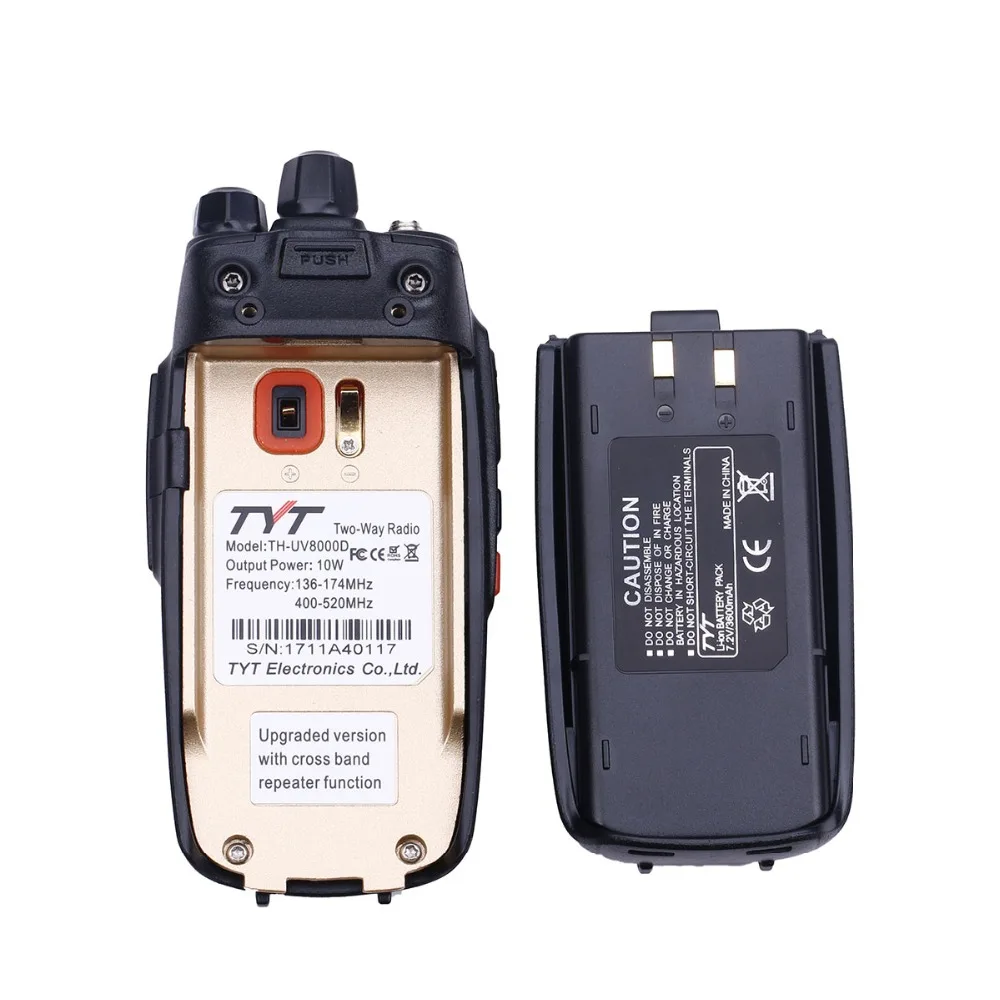

TYT TH-UV8000D 10W Powerful Walkie Talkie Cross-band Repeater Dual Band VHF UHF 3600mAh Battery 10km Portable Radio Transceiver

$61.74$87.10

standard pacakge
standard pacakge
add usb cable
add usb cable
add car charger
add car charger
add speaker
add speaker
Telescopic antenna
Telescopic antenna
add ac headset
add ac headset
as picture1
as picture1
as picture 2
as picture 2
as photo show 1
as photo show 1
as photo show 2
as photo show 2
Euro
Euro
American
American
Clear
Sold By: Two Way Radio
SKU: 32315900953 Categories: , Tags: , ,

All the following products are compatible with TYT TH-UV8000D





1



TH-8000D_MG_1787_MG_1788_MG_1789_MG_1803_MG_1806_MG_1810_MG_1814



2

Feature:

1.  100% Brand New & Never Used

2.  Dual band, dual display, dual standby

3.  2*128 channels to store

4.  FM radio receiver and 25 channels

5.  Channel spacing selectable (25/12.5 KHz)

6.  Hand free VOX function

7.  CTCSS/DCS encoding and decoding

8.  Cross band function

9.  Low battery alarm

10.  Emergency Alarm

11.  Shift repeater function

12.  ANI function

13.  DTMF & Remote kill/stun function

14.  Reverse frequency function

15.  Tri-color background light selectable

16.  Chinese & English prompt

17.  MSK

18.  1750 Tone

19.  PC software programmable

20.  Channel scan function

21.  Busy channel lock-out (BCL)

22.  Monitor function

23.  Time-out timer (TOT)



Specification:

General

Frequency range

VHF:136~174MHZ
UHF:400~520MHZ

Frequency Stability

±2.5PPm

Operating voltage

DC 7.2V (Rechargeable Li-ion battery)

Channel NO.

128×2

Antenna impedance

50 ohm

Mode of operation

Simplex or semi-duplex

Battery capacity

3600mAh

Color

Black

Dimension(Exclude antenna)

13x6x3.5cm

Weight

291g

Receiver

RF Sensitivity

-122dBm(12dB SINAD)

Audio power

>0.5W

Audio distortion

<10%

Blocking

>=85dB

Intermediation

>=60dB, >=55dB

Selectivity

>=65dB, >=60dB

Spurious rejection

>=65dB

Transmitter

Output power

<=10w, >=5W

Modulation mode

F3E

Maximum deviation

<5KHz/<2.5KHz

Adjacent Ch. power

<=-65dB/ <=-60dB

Spurious radiation

<7µW

Pre-emphasis characteristics

6dB

Current

<=2.8A(10W),<=1.8A(5W)

CTCSS/DCS deviation

0.55KHz±20.15KHz, 0.4KHz±20.1KHz

Intermediation sensitivity

8~12mV

Intermediation distortion

<5%



Package includes:

·     1 x Portable Radio

·     2 x Antennas

·     1 x Li-ion battery pack

·     1 x Charger

·     1 x Belt clip

·     1 x Lanyard

·     1 x User`s manual

·     1 x PTT headset
