TYT TC-8000 UHF VHF 10W Walkie Talkie Scrambler 3600mAh Portable Two Way Radio

Original price was: $161.94.Current price is: $71.50.

& Free Shipping
Guaranteed Safe Checkout
Sold By: Two Way Radio

TYT TC-8000 Single band VHF 136-174MHz or UHF 400-520MHz 10watt high power long distance Scrambler Portable walkie talkie 16CH with extra high gain antenna,3600mAh battery pack

Features:

  1. VHF:136-174MHz or UHF: 400-520MHz single band
  2. 16 channels Analog Two way radio
  3. Non-standard CTCSS/DCS Code
  4. PC programming protection
  5. VOX
  6. CTCSS/DCS
  7. Chinese and English voice prompt
  8. Battery saving function
  9. Hi/low power selective
  10. Scan
  11. Scrambler
  12. COMP
  13. Wide/Narrow bandwidth selective
  14. End-tone elimination
  15. Emergency alert
  16. Power protection
  17. High/low voltage TX prohibition
  18. Low battery prompt
  19. 1750Hz tone
  20. Side-key assignment

Specifications:

General
Model Number TC-8000
Frequency Range VHF:136.000-174.000MHz

or UHF:400.000-520.000MHz

Channel Number 16
Working Voltage DC 8V
Working Temperature -10°C ~+50°C
Antenna High gain antenna
Antenna Impendence 50 ohm
Working Mode Simplex
Dimensions 132*59*32mm
Receiver
Frequency Range VHF:136.000-174.000MHz

or UHF:400.000-520.000MHz

Sensitivity ≤0.2µV
Occupied Bandwidth ≤16KHz
Selectivity ≥65dB
Intermediation ≥55dB
Audio Power 1W
Audio distortion ≤5%
Frequency Stability 5ppm
Current 80mA (Standby),220mA( working)
Audio Response +7~12.5dB
Transmitter
Frequency Range VHF:136.000-174.000MHz

or UHF:400.000-520.000MHz

Output Power H=9W ±1W, L=5W ±0.5W
Modulation mode 16KF Ø3E
Spurious radiation ≤7.5µW
Modulation noise <-40dB
Modulation distortion <5%
Frequency Stability 5ppm
Maximum deviation ≤±5KHz
Current ≤2300mA
Audio response (300-3000Hz) +6.5~-14dB
Adjacent Ch.Power ≥65dB
Intermediation sensitivity 8~12mV

Note: Specifications will be revised without notice due  to technical improvement. Thank you.

Package Contains:

1× TC-8000 Single band radio body

1× 3600mAh Li-ion Battery Pack

1× Desktop Charger

1× AC Adapter

1× SMA-Male Standard Antenna 15cm

1× High Gain antenna 35.5CM

1× Belt Clip

1× User’s Manual

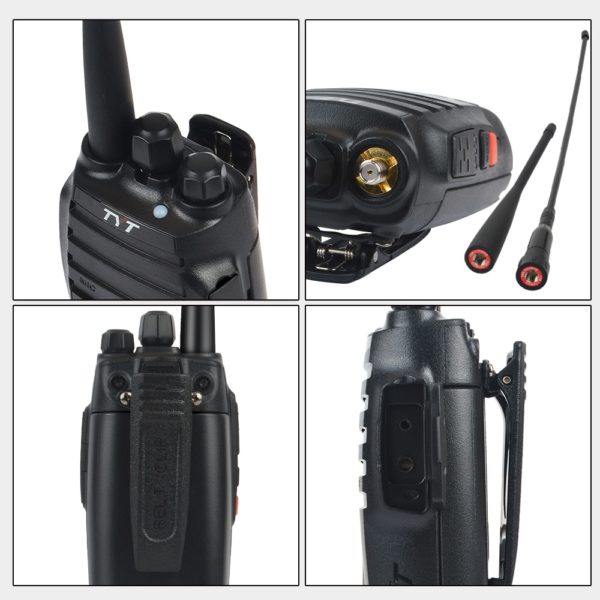

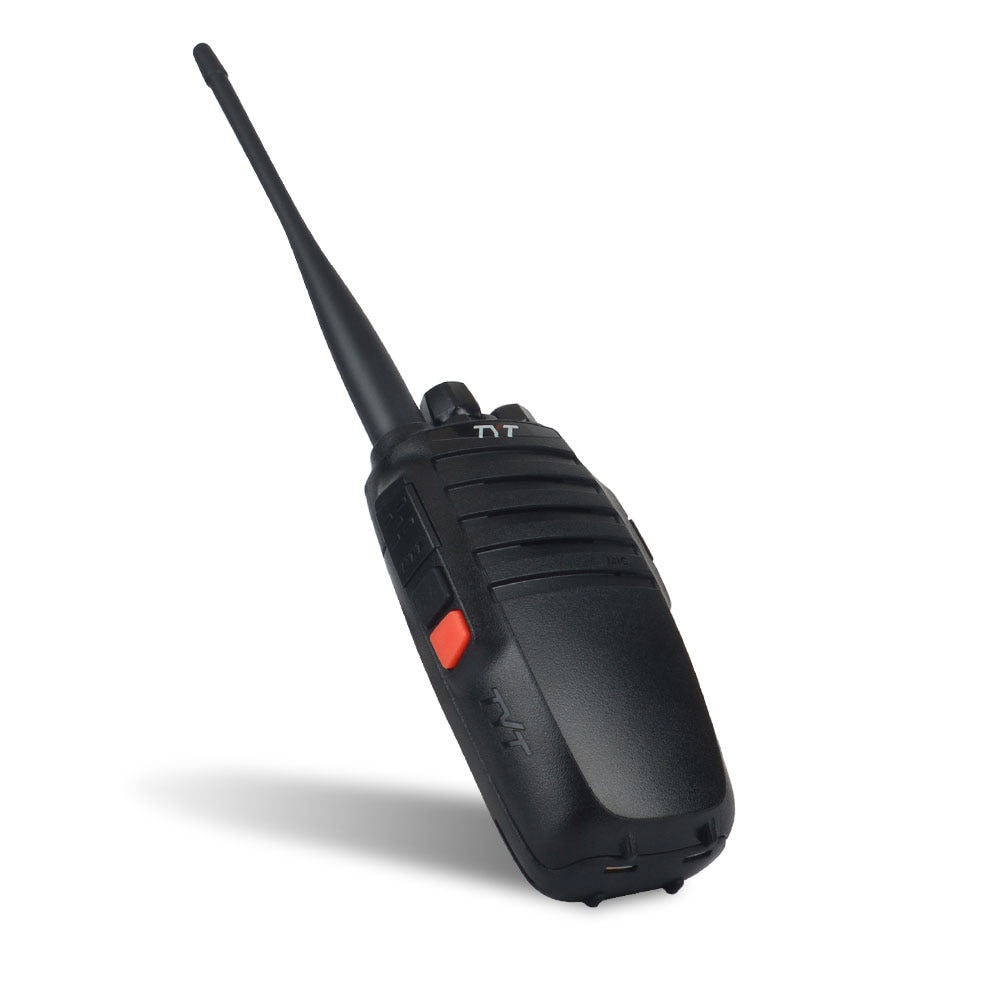

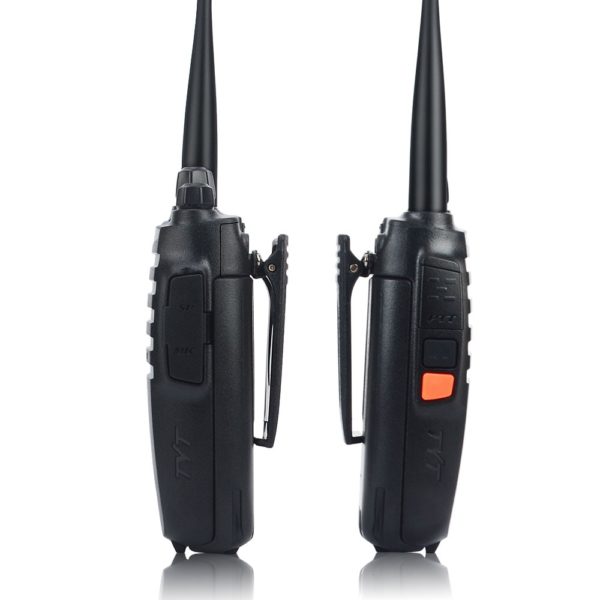

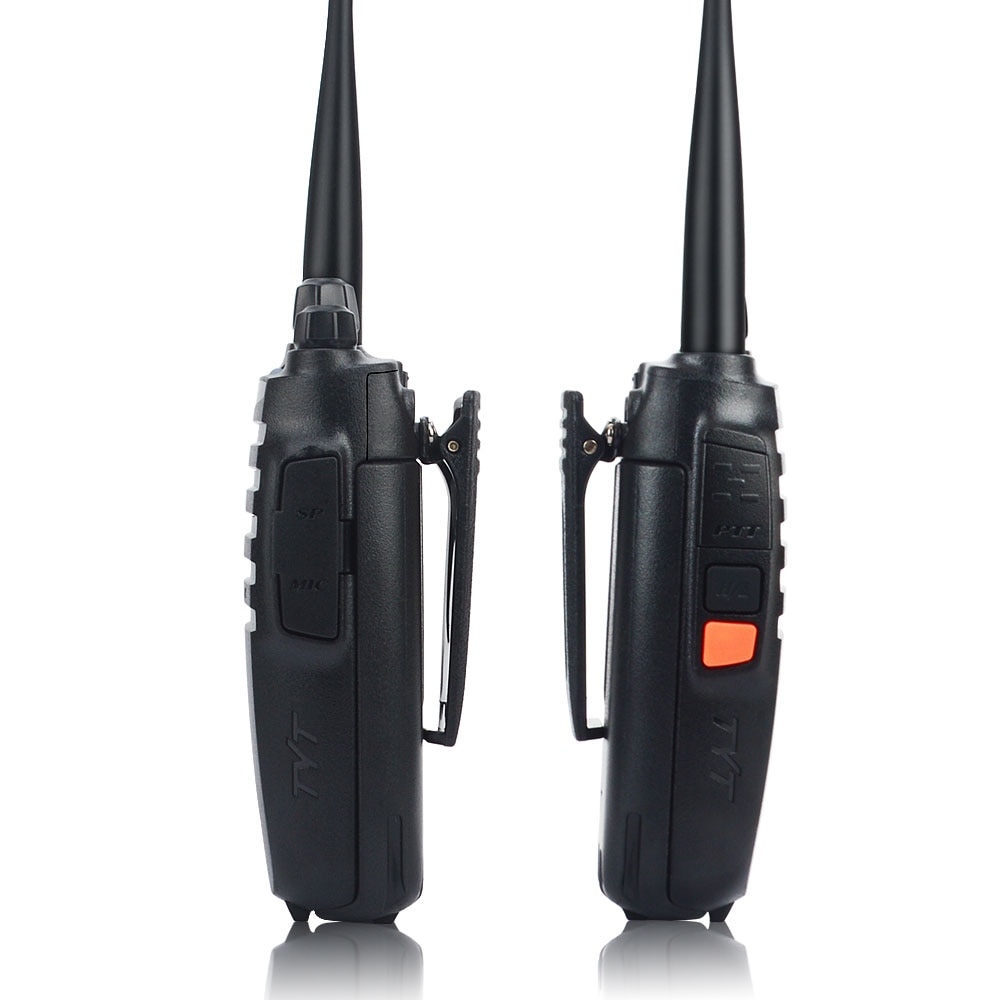

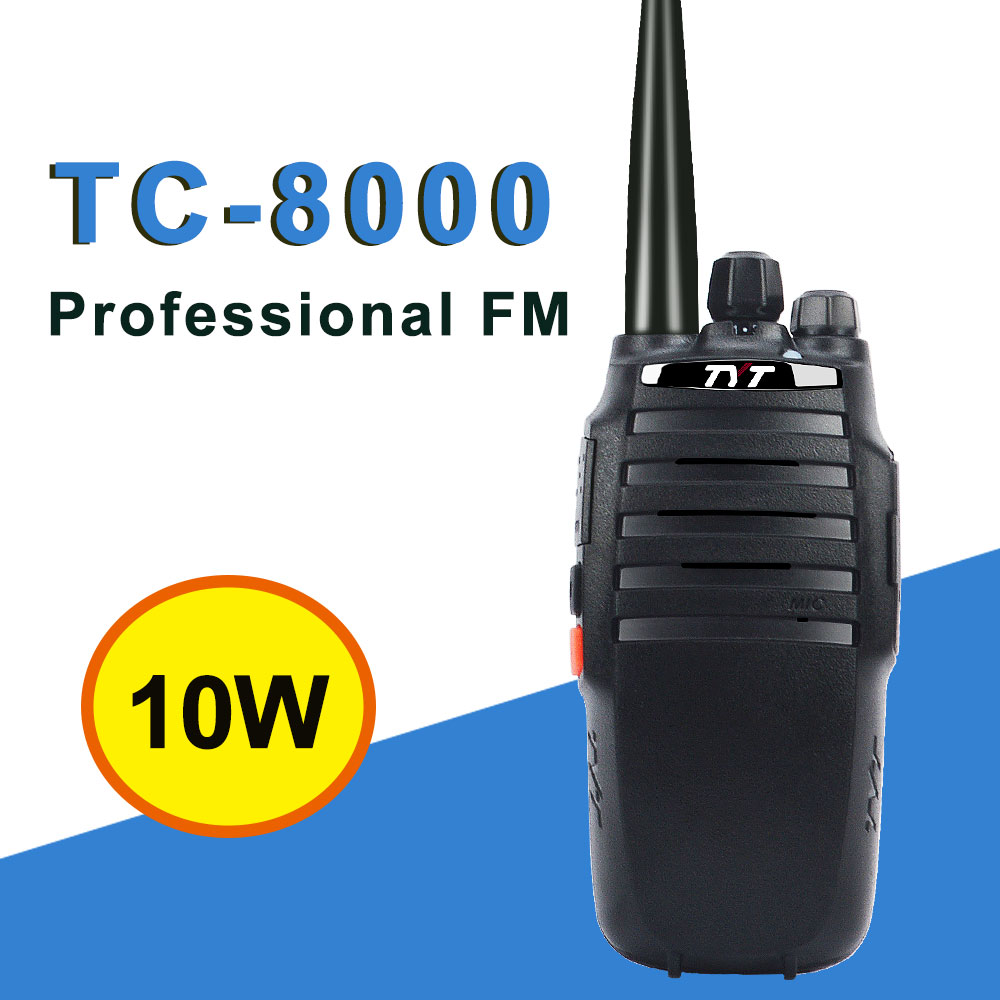

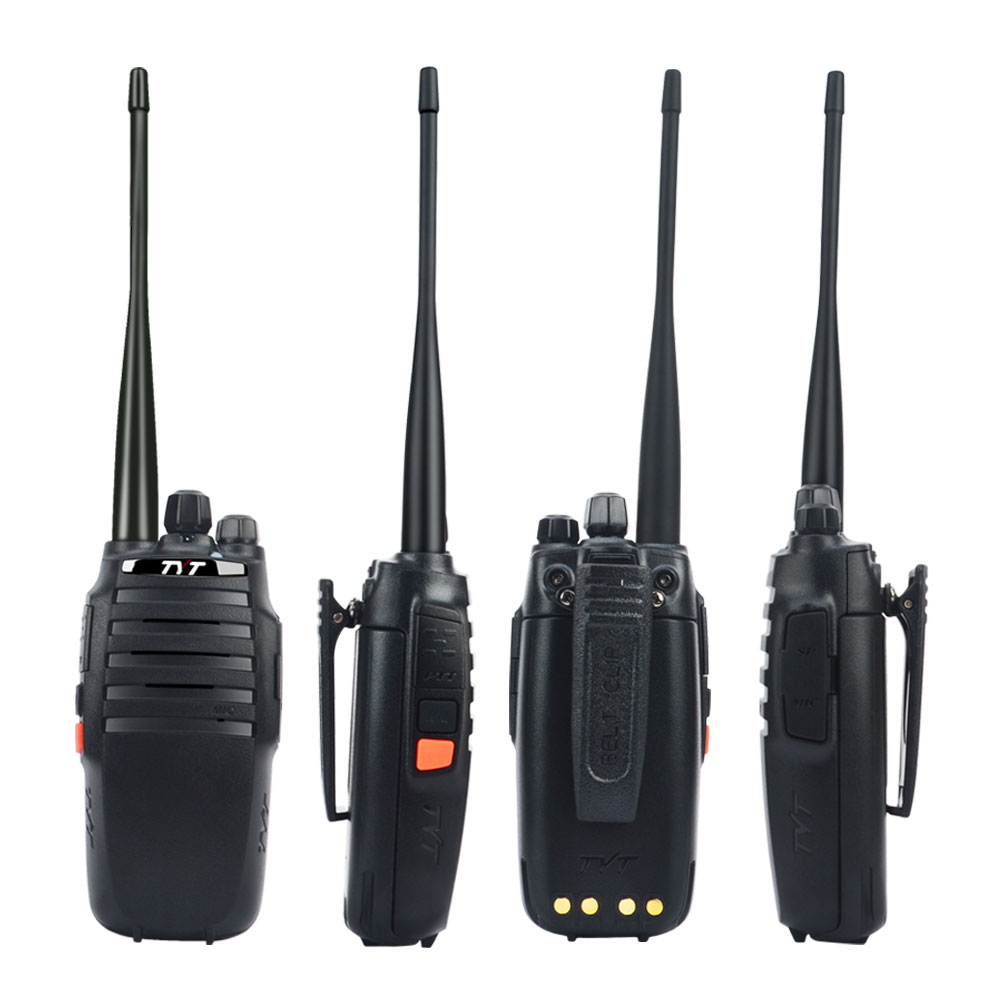

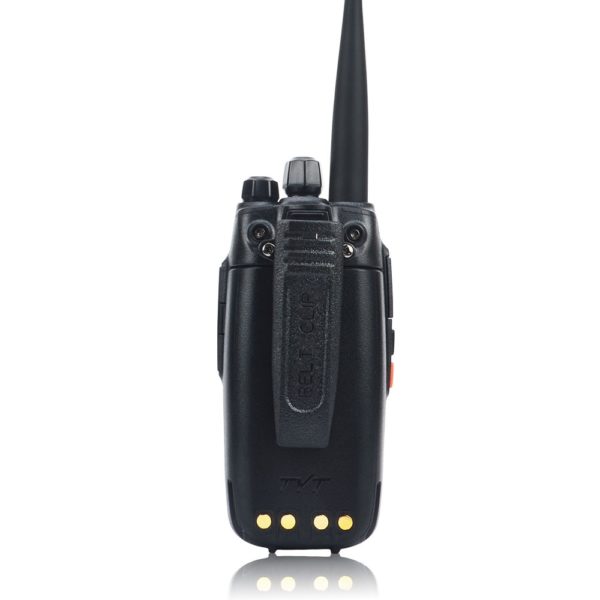

Photos:

367812131415
场景图311
