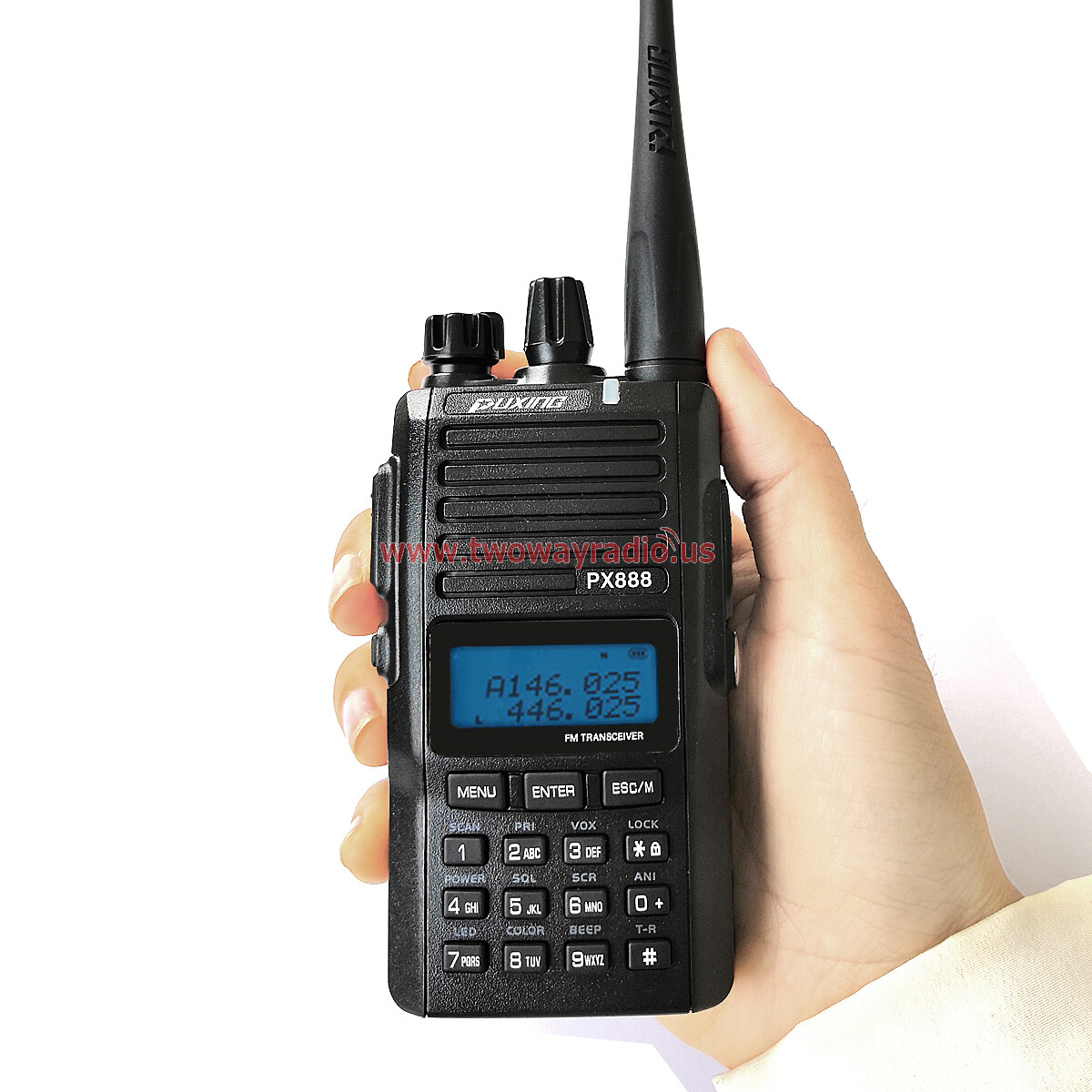

Puxing PX-888 VHF 136-174MHz UHF 400-470MHz Two Way Radio
Note: Default Shipping VHF Puxing PX777 plus .
If you need UHF, please leave a message and we will ship it according to your requirement
Main Features
Memory channel capacity: 128
Output power: 4 to 5W
Wide: 25kHz/Narrow: 12.5kHz
Compatible; Come with 1,200mAh Li-ion battery;
Input frequency by using keypad;
VOX built-in; Scan function;
three color LCD backlight
display; emergency alarm;
Programmable by PC;
Bell ring when receiving signal;
Priority scanning function;
Adjust power Hi/Low;
Switching between channel/frequency;
Adjust squelch level (0 to 9);
Busy channel lockout;
Keypad lock
Reverse frequency function;
channel step 5, 10, 6.25, 12.5 and 25K;
Selective call/Group call;
DTMF ANI encode and decode, MDC1200 ANI option;
CCIR five tone;
Receive FM radio;
Scrambler;
Voice annunciation;
Hi: 4 to 5W, Low: 0.5 to 1W Output power;
Built-in 50 CTCSSand 104 DCS;
Alphanumeric dot matrix LCD
Three-color LCD backlight
PX-888 General | |
Frequency Range | single band VHF:136-174MHz or UHF:400-470MHz |
Channel Capacity | 128 channels |
Channel Spacing | 25KHz(Wide Band) 20KHz(Middle Band) 12.5KHz(Narrow band) |
Phase-locked Step | 5KHz,6.25KHz |
Operating Voltage | 7.4 VÂ DC |
Battery Life | More than 12 Hours (1200mAh), |
Frequency Stability | ±2.5ppm |
Operating Temperature | -20°C +55°C |
Size | 100mmĂ—55mmĂ—32mm (not including antenna) |
Weight | 220g (with battery, antenna) |
Receiver (ETSI EN 300 086 standard testing ) | |
RF Sensitivity | ≤0.25μV |
Audio distortion | ≤3% |
Audio Response | +1~-3dB |
Adjacent Channel Selectivity | ≥60dB |
Intermodulation Rejection | ≥70dB |
Spurious Rejection | ≥70dB |
Blocking | ≥80dB |
Hum & Noise | -45dB |
Audio output | 500mW |
Transmitter (ETSI EN 300 086 standard testing ) | |
Frequency Stability | ±2.5ppm |
Output Power | VHF5W/UHF4W |
Modulation Limiting | ±2.5KHz |
Audio Distortion | ≤3% |
Audio Response | +1dB~-3dB |
Adjacent Channel Power | ≥70dB/60dB |
Spurious Radiation | ≤7.5uW |
Occupied Bandwidth | ≤16KHz |
|
|
|
