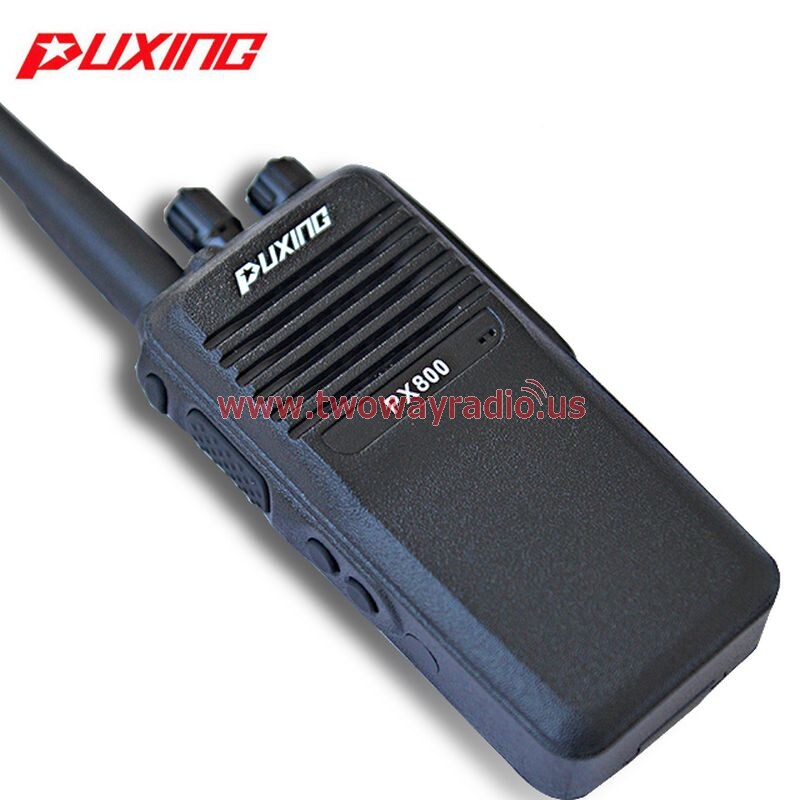

Puxing PX800 Long Range Clear Voice High Quality Military UHF Digital Dmr Radio
Pls Kindly Note that we will default shipping UHF Puxing PX-800.
If you need VHF Puxing PX-800 , pls leave us a message , thank you !
Specifications
| MODELS | Puxing PX-800 DMR radio |
| size | 113.5X54X33.5MM |
| Frequency range | 136-174/400-470 MHz |
| Channel Capacity | 32channels |
| Vocoder type | AMBE+2TM |
| Output Power | VHF 5W ,UHF 4W |
| Battery | 1800mAh , 2000/2400mAh(optional) |
| Waterproof and dustproof | IP67 |
| Functions | encryption/CTCSS/DCS/ SMS/lag enter |
| Digital mode single call,group call,all call | |
| Digital mode SMS fuction/Support through and transfer mode | |
| channel spacing | 12.5khz |
| antenna impedance | 50Ω |
| Operating Voltage | 7.4V DC |
| Operating Temperature | -30°C +60°C |
| Weight | 270G |
| digital protocol | ETSI TS 102 361-1,-2,-3 |
| 4FSK digital mode | 12.5khz(data only):7K60FXD 12.5khz(data+voice):7K60FXE |
| Transmitter | |
| frequency stability | +/-1.0 ppm |
| hum and noise | -40dB( F1512.5khz) |
| conducted,radiated spurious emission | -36dBm at <1Ghz,-30dBm at >1Ghz |
| adjacent channel power | -60dB at 12.5khz |
| ajacent transient channel power | -50dB at 12.5KHZ |
| FM modulation mode | 12.5khz:11K0F3E |
| modulation maximum deviation | 2.5khz at 12.5khz |
| nonactive slot power | -57dBm |
| audio response | +1dB–3dB |
| audio distortion | 3%(type) |
| Receiver | |
| channel spacing | 12.5khz |
| frequency stability | +/-1.0ppm |
| analog sensitivity | 0.3μV(12dB SINAD) |
| 0.4μV(20dB SINAD) | |
| 0.22μV(type) | |
| digital sensitivity | 5% BER 0.3μV |
| intermodulation | TIA603C:70dB ETSI:65dB |
| Adjacent Channel Selectivity | TIA603C:65dB at 12.5khz ETSI:60dB at 12.5khz |
| co-channel rejection | 12dB at 12.5KHZ |
| spurious response rejection | TIA603C:75dB ETSI:70dB |
| conducted spurious emission | -57dBm at <1GHz,-47dBm at >1GHz |
| blocking | 84dB |
| rated audio power | 1w |
| audio response | +1dB–3dB |
| rated audio distortion | 3%(type) |
| Warranty:1year for radio ,6months for battery. | |
| Supplied accessory:radio body,battery,antenna,belt clip,charger,adaptor,manual,giftbox etc. | |
| Payment term:PayPal for small amount; T/T for large amount | |
| Delivery way:DHL/FEDEX/UPS/EMS for sample order; | |
| Delivery time:enough goods in stock,fast delivery. | |
Main Items:
- 1 x Host
- 1 x Battery
- 1 x Antenna
- 1 x Belt Clip
- 1 x Use’s Manual
- 1 x Charger
- 1 x Charger adaptor
