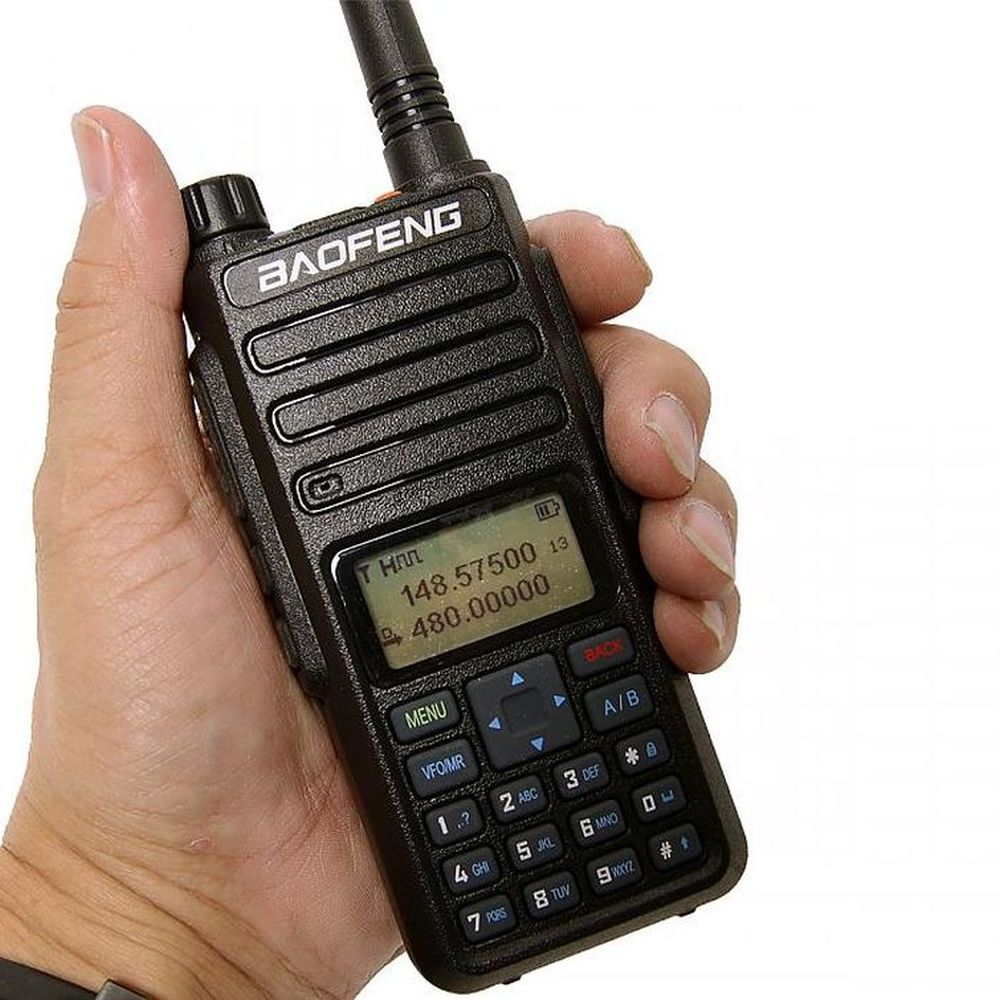

Baofeng DM-1801 Handheld DMR Dual Band 136-174/400-480MHz Digital Two Way Radio

Baofeng DM-1801 Handheld DMR Dual Band 136-174/400-480MHz Digital Two Way Radio

New version is Baofeng DR-1801UV

Main Features

Support UV double segment, frequency range. UHF 400.000-480.000MHz/VHF 136.000-174.000MHz

Direct mode Dual-slot communication achieves two groups of calls at a frequency point at the same time, so that the communication effectiency is doubled point and frequency resources are saved.

Features

1. Digital-analog compatible
2. Dual Time slot/Dual Band
3. AMBE+2 vocoder
4. SMS function
5. Digital signaling function
6. CTCSS/CTCSS
7. Digital mode supports the use of repeater
8. Digital alarm function

General specifications:

• FREQUENCY RANGE: VHF 136-174MHZ/UHF 400-480MHZ(DUAL BAND)
• STORAGE CHANNEL: 128 GROUPS
• STEPPED FREQUENCY: 2.5/5/6.25/10/12.5/20/25KHZ
• OPERATING VOLTAGE: DC7.4V(RECHARGEABLE LITHIUM BATTERY)
• FREQUENCY STABILITY: ±1.5PPM
• OPERATION MODE: SAME-FREQUENCY SIMPLE OR DIFFERENT-FREQUENCY SIMPLEX
• ANTENNA IMPEDANCE: 50W
• BATTERY CAPACITY: 2000MAH
• VOLUME: 110x28x32mm(EXCLUDING ANTENNA

Transmitting:

• OUTPUT POWER: 4W/1W
• MODULATION(WIDEBAND/NARROWBAND): ANALOG:16KCF3E/11KCF3E  DIGITAL:4FSK
• MAXIMUM FREQUENCY DEVIATION(W/N): ≤5KHZ/≤2.5KHZ
• FSK ALLOWABLE ERRORRATE: ≤3%
• SPURIOUS POWER: ≤7.5UW
• ADJACENT CHANNEL POWER: ≤-65DB/≤-60DB
• SIGNAL TO NOISE RATIO(W/N): ≥-45DB/≥-40DB

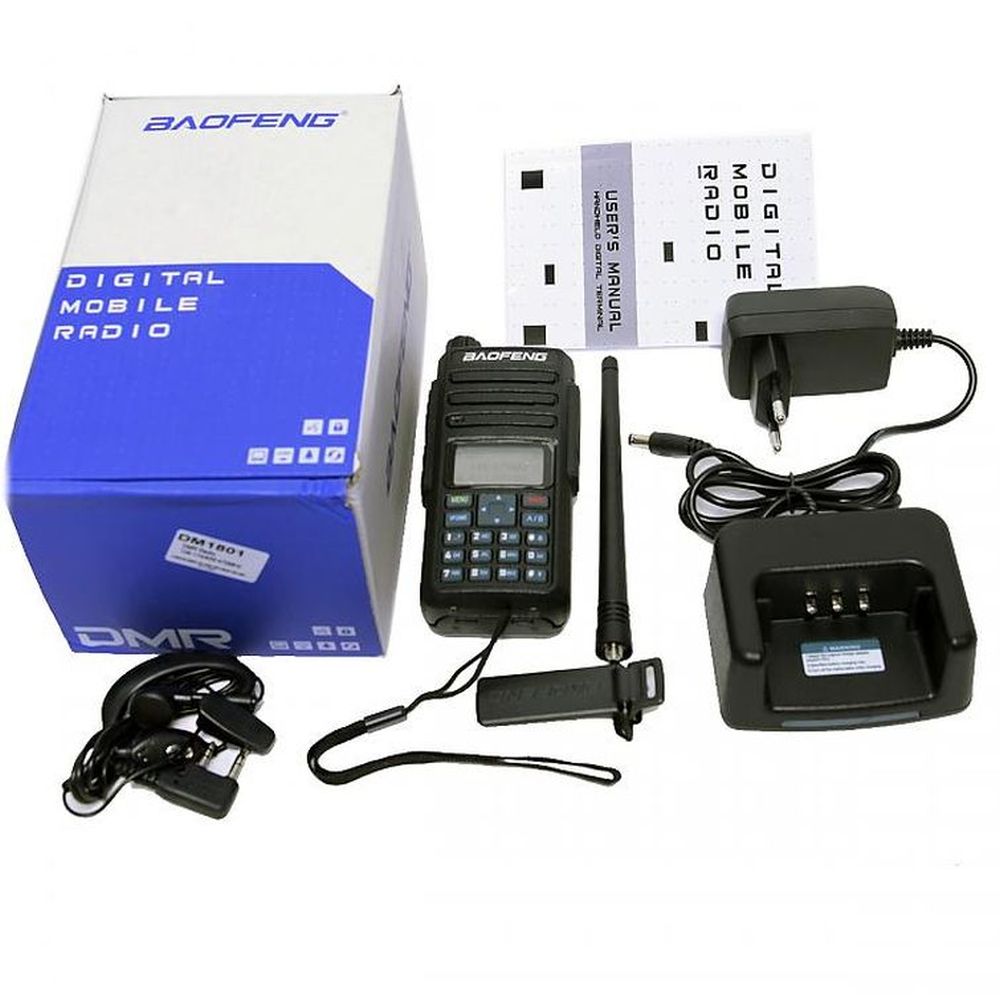

Package Contain

• 1x Baofeng DM-1801 Dual Band Radio
• 1x Radio Battery
• 1x Belt Clip
• 1x Antenna
• 1x Charger
• 1x synopsis
• 1x PTT Headset
