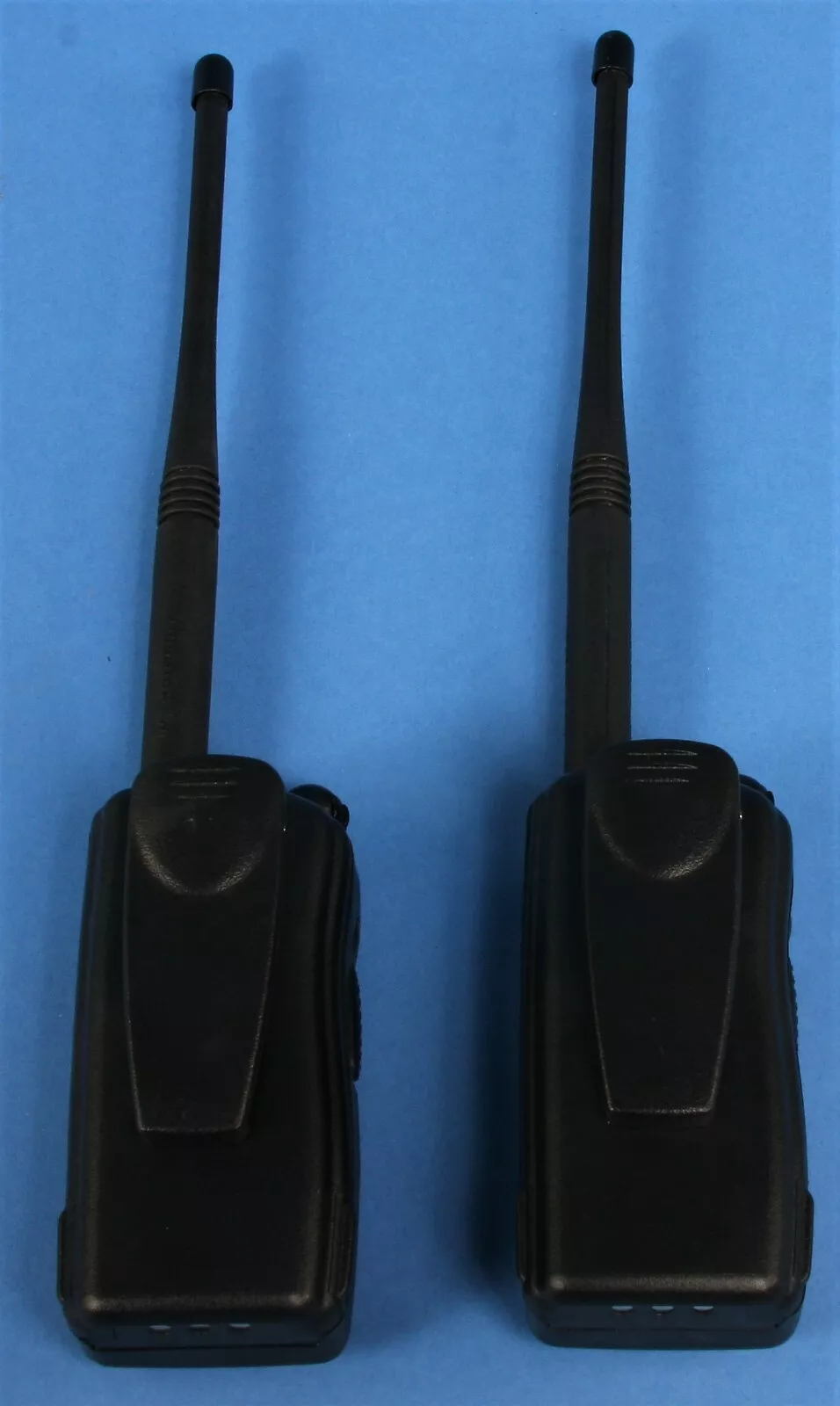

Motorola GP2000 VHF/UHF Ham Radio Full Keypads Walkie Talkie
1. 8 digit Alpha numeric display
2. 99 channel
3. Backlight setting (Auto/ Toggle)
Motorola GP2000 VHF/UHF Two Way Radio
- Prime Channel
• Talk Around
• Busy Channel Lockout
• Nuisance Channel Delete
• LowBattery Alert
• Channel Alias
• 12.5/25 kHz Channel Spacing
• Coded Squelch - Priority Scan
• 3 Scan Lists
(each with priority channel)
• Selective Call
• Backlight Setting (auto/toggle)
• Receive-only Channel
• Adjustable Squelch Level
• Time-Out Timer
(from 0 to 10 minutes
Detailed Product Description:
- Enhanced Ergonomics
- Compact
- Modern & curved design for easier handling
- Channel knob replaced by front panel buttons
- 99 channel memories
- 8 digit Alpha numeric display
- 12.5/25 kHz channel spacing
- Programmable quick access buttons (A,B,C,D)
- 8 hour talk time @ 5-5-90 (standard NiMH)
- Battery saver features
- Built in DTMF signaling (DTMF Encode Only)
- User adjustable power selection (0.3/1/5W)
- Front panel prgrammable
If you need DTMF Decode then you will require AZH854
Vox available upon request
- Prime Channel
- Priority Scan
- Selective Call
- Busy channel lockout
- Nuisance channel delete
- Backlight setting (Auto/Toggle)
- Channel alias
- Adjustable squelch .
- Time-Out Timer (From 0 to 10 minutes) .
Antenna
VHF : An antenna option must be specified
UHF : Standard UHF Antenna
Product Options
AZH49KDH8AA9 – VHF 136-174 MHz 12.5/25 kHz 1/5W 99
The above model requires a VHF antenna option to complete the radio order
AZH49QCH8AA9 – UHF 403-440 MHz 12.5/25 kHz 1/4W 99
Frequency Range: VHF: 136-174MHz, UHF: 403-480MHz
Memory Channels: 99
General Features | VHF | UHF |
Frequency Range | 136-174MHz | 350-390MHz, 403-440MHz, 435-480MHz |
Memory Channels | 99 | |
Operating Temperature Range | -30° to +60° C (Radio)
-20° to +60° C (with NiMH battery) |
|
Dimensions (H x W x D)( With Standard Capacity NiMH) | 115.5mm x 56mm x 35mm (38mm top) | |
Weight (With Standard Capacity NiMH) | 350g | |
Average Battery Life
@ 5 – 5 – 90 Duty Cycle (With Standard Capacity NiMH) |
High Power Low Power
5W 1W > 8 hours > 11 hours |
High Power Low Power
4W 1W > 8 hours >11 hours |
Sealing | Passes rain testing per IPX4 (EN60529:1991) | |
Shock & Vibration | Diecast with impact resistant polycarbonate housing, passes EIA RS – 316B | |
Dust & Humidity | Weather resistant housing passes EIA RS –316B | |
Display digits with backlight | 8 | |
Transmitter | VHF | UHF |
RF Output | High Power Low Power
5W 1W |
High Power Low Power
4W 1W |
Channel Spacing | 12.5 / 25 kHz | |
Frequency Stability | ± 2.5ppm | |
Modulation Limiting | + / – 5kHz (25kHz) ; + / – 2.5kHz (12.5 kHz) | |
Audio Response (from 6dB/oct.
Pre-Emphasis, 300 to 3000Hz) |
+1, -3dB | |
Audio Distortion
@ 1kHz tone, 60% rated max dev. |
<5% | |
FM Hum & Noise | 40dB | |
Receiver | VHF | UHF |
Channel Spacing | 25kHz 12.5kHz | 25kHz 12.5kHz |
Sensitivity (12dB SINAD) | 0.25ìV | |
Audio Distortion | <5% | |
Hum and Noise | 40dB | |
Audio Output @ <5% Distortion
(7.5V / room temperature) |
500mW into 24ù | |
With Standard Capacity NiMH (hi-cap) battery.
* Availability subject to country’s lawand regulations. All specifications shown are typical and subject to change without notice. |
|
|
|
