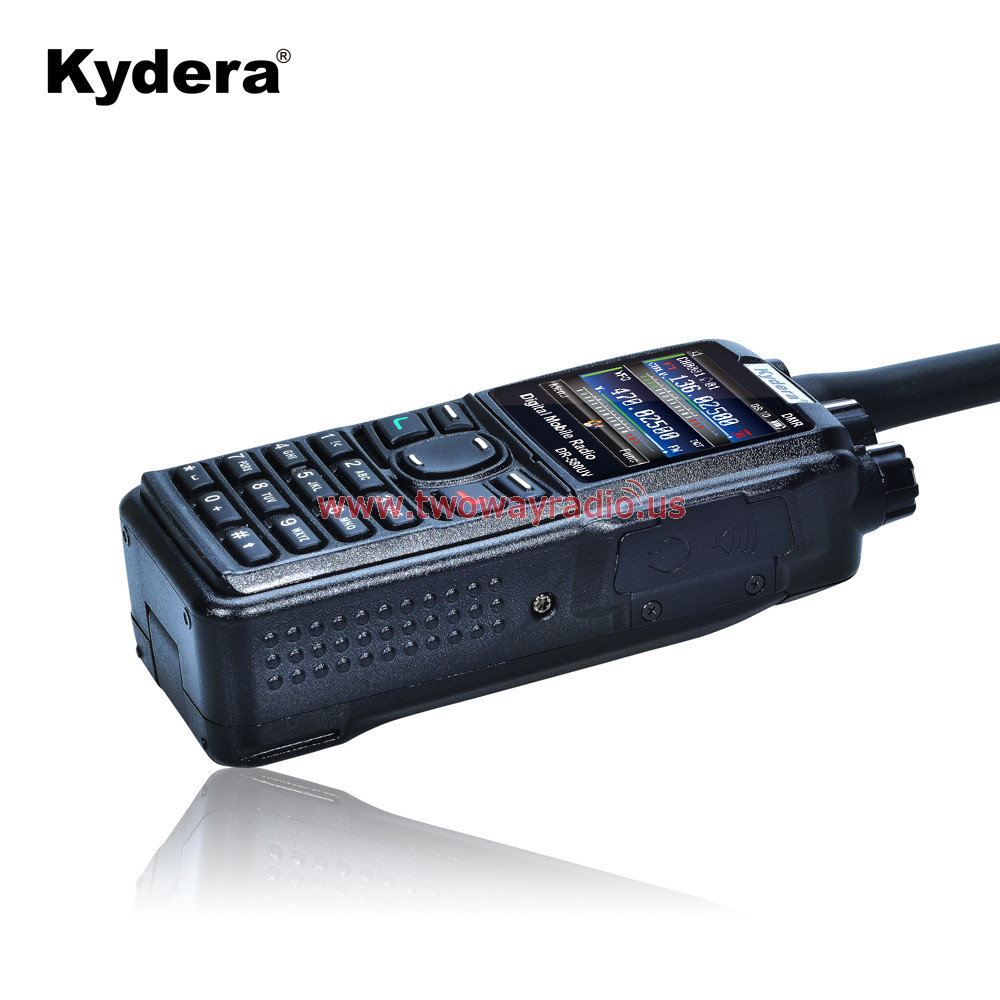

Kydera DR 880UV Handheld Digital Walkie Talkie UHF VHF DR-880UV Dual Band DMR Radio with Programming Cable
Kydera UHF VHF Dual band DMR walkie talkie DR-880UV Handheld two way radio
Main Feature:
- 4000 channels
- Private Call
- Group Call
- All call
- Scan
- Kill
- Revive
- Battery Save Mode
- One-touch Call
- Remote Monitor
- Call Alert
- Records for 200 hours
-Prompt tone On/Off
-Low power Vioce /lcon
-Support Voice prompt channel switching or function-Option
-Two programmable buttons for long pressing are availble on the side.
– Analog and Digital dual Band , with repeater functions
| DMR DR-880UV | |
| 1. Mode | DR-880UV |
| 2. Frequency Range | VHF:136-174MHz;
UHF:400-480MHz |
| 3. Channel | 4000 |
| 4.Dimention | 125*60*39MM |
| 5. Votage | nominal 7.4V (Li-ion Battery) |
| 6. 3000mAh Li-ion battery | Analogue:15 hours Digital: 23 hours |
| 8. Packaging | One main radio with accessories in a box. |
Kydera UHF VHF Dual band DMR walkie talkie DR-880UV Handheld two way radio
1.Compatible with Motorola’s DMR.
2.Group Calling, General Calling, Individual Calling.
3.GPS(optional)
4.Li-ion Battery
5.4000Channels
6.2 way uhf vhf radio talky walky
7.Call Alert
8.2 way radio manufacturers
9.best handheld ham radio
New
1. More channel capacity: 4000 channels, 250channels per Zone, but if you prefer 16channels per Zone, it is no problem.
2. True 2-time slot: which allows for 2 talk path on 1 frequency
Main Features:
FM Radio
Backlight Control
Keylock
TOT
Scan
High/Low Power
Language Selection
Keytone Control
Low Power Alert
Display Mode
Man Down (Optional)
Digital Features
Message
Remote Kill
Remote Revive
Private Call
Group Call
General Call
Contacts
No-address Call
Remote detection
Call Alert
Call log
Emergency Alarm
Voice Encryption
GPS(Optional)
Analog features
CTCSS
DCS
Squelch Setting
Busy Channel Lockout
Narrow/Wide Band
Scrambler (Optional)
Compandor (Optional)
General Specification
Function characteristics:
Ø Individual Calling
Ø Group Calling
Ø General Calling
Ø Stun
Ø Recents
Ø Contacts
Ø GPS Status(optional)
Ø SMS
Ø Remote monitor (optional)
Ø Scan
Technical performance:
Ø Menu Mode
Ø Keypad
Ø 107 DCS
Ø 50 CTCSS
Ø LCD Display
Ø PC Programmable
Ø Priority Scan
Ø Channel Naming
Ø Li-ion Battery Pack
Ø Busy Channel Lockout
Ø Multiple Call Tones+1750Hz
Ø Hi/Low Power
Ø Time-out Timer
Ø Low Battery Alert
Ø Frequency/Channel Scan
Ø Battery Strength Indicator
Ø Selectable Squelch Level
Ø CO/TO/SE Scan Switchable
Ø Programmable Greeting Message
Ø Selectable Name/Frequency Display Mode
| General | ||
| Frequency | 136-174Mhz , 400-480Mhz (Dual Band) | |
| Channel | 4000 channels (250channels per zone, 16 zones) | |
| Channel spacing | 12.5/25KHz | |
| Power | 4/5W | |
| Antenna impedance | 50Ω | |
| Dimension (H*W*D) | 102x54x35MM | |
| Weight (with battery) | 225g | |
| Li-Pol battery | 2000mAH | |
| Rated voltage | DC: 7.4V | |
| Receiver | ||
| Frequency stability (-20℃, +60℃, +25℃) | +/-1.5ppm | |
| Analogue sensitivity | 0.3uV/0.25uV | |
| Digital sensitivity (5%BER) | 0.25uV/0.2uV) | |
| Inter-modulation | 65dB | |
| Adjacent channel selectivity | 60dB@12.5kHz/65dB@25kHz | |
| Spurious rejection | 65dB | |
| Rated audio | 500mw | |
| Audio distortion @rated audio | 3% | |
| FM hum & noise | -40dB@12.5kHz/-45dB@25kHz | |
| Audio response | +1,-3dBm | |
| Conducted /radiated emission | -57dBm | |
| Transmitter | ||
| Frequency stability (-30℃, +60℃, +25℃) | +/-1.5ppm | |
| Modulation restriction | ±2.5dB@12.5kHz/±5.0dB@25kHz | |
| FM hum & noise | -40dB@12.5kHz/-45dB@25kHz | |
| Conducted /radiated emission | -36dBm<1GHz/-30dBm>1GHz | |
| Adjacent channel selectivity | -60dB@12.5kHz/-65dB@25kHz | |
| Audio response | +1,-3dBm | |
| Audio distortion | 3% | |
| FM modulation | 12.5kHz: 11KOF3E 25kHz: 16KOF3E |
|
| 4FSK digital modulation | 12.5kHz data: 7K60F1D and 7K60FXD 12.5kHz audio: 7K60F1E and 7K60FXE 12.5kHz data and audio: 7K60F1W |
|
| Digital vocoder | AMBE+2™ | |
| Digital agreement | ETSI-TS102 361-1,-2,-3 | |
Each Unit Package Contain:
1 x Kydera DR-880UV Dual Band DMR transceiver
1 x Battery 2000mAh Li-ion
1 x Charger Docking
1 x Charger Adaptor (for your country)
1 x High Gain Dual Band Antenna
1 x Belt Clip
1 x Sling
1 x PTT Earpiece
1 x Programming Cable
