High power Long talk Range UHF 2 way Radio LEIXEN NOTE 400-480MHz Long-Distance Ham Two Way Radio with cooling fan professio

High power Long talk Range UHF 2 way Radio LEIXEN NOTE 400-480MHz Long-Distance Ham Two Way Radio with cooling fan professional transceiver

NOTE Factory frequency：

Main Features:

Long talk distance

UHF 400-480MHz full band

L/M/H 5W/10W/20W Output power

16 storage channels

Auto battery save

4000mAh high capability Li-ion Battery

With cooling fan & heat dissipation holes

Scan function

Programmable side key

0-9 squelch

Roger beep

PC program password

Female voice annunciation

TOT, busy channel lock out

CTCSS/DCS

37CM flexible high-gain antenna

Specification:

General

Frequency Range UHF: 400-480MHz

Channel Capacity: 16 channels

Antenna Impedance: 50Ω

Frequency Stability: ±2.5ppm

Operation Mode: Simplex F3E

Weight: 550g with antenna and battery

Dimension(Exclude antenna): 175x75x38mm

Rated Voltage: 12.6V

Battery: 4000mA (Li-Ion)

Transmitter

Power: 5W/10W/20W

Modulation: 16KØF3E / 11KØF3E

Max.Freq.Deviation: 30dB

Emission Current: ≤3.5A

Receiver

Sensitivity: ≤0.18µV

Audio Power: ≥500mW

Audio Distortion: ≤5%

Inter modulation: ≥60dB / ≥55dB

Channel Selectivity: ≥65dB / ≥60dB

TX Current 3.5A

Modulation Type F3E

Standard package:

1 X UHF400-480MHz radio

1 X 4000mAh Li-ion Battery

1 X desktop charger

1 X 15V Adapter

1 X Antenna

1 X Belt Clip

1 X User Manual

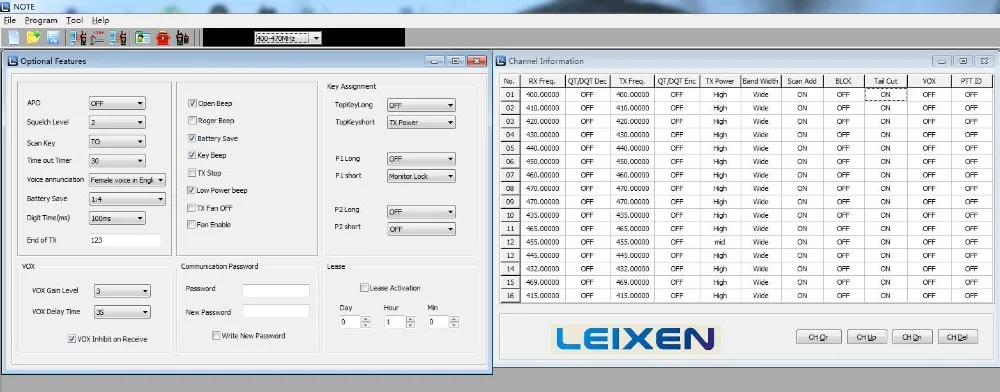

(you may need USB-K1 for program the radio frequency)
