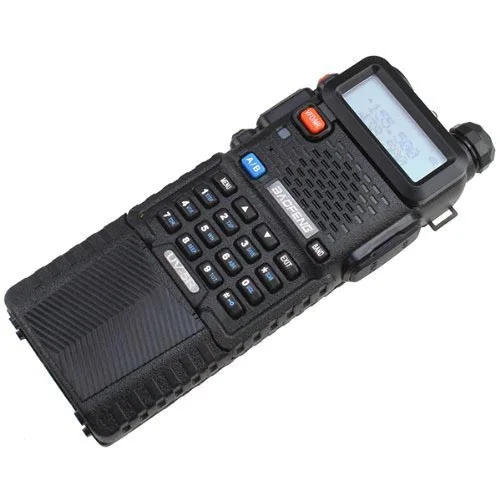

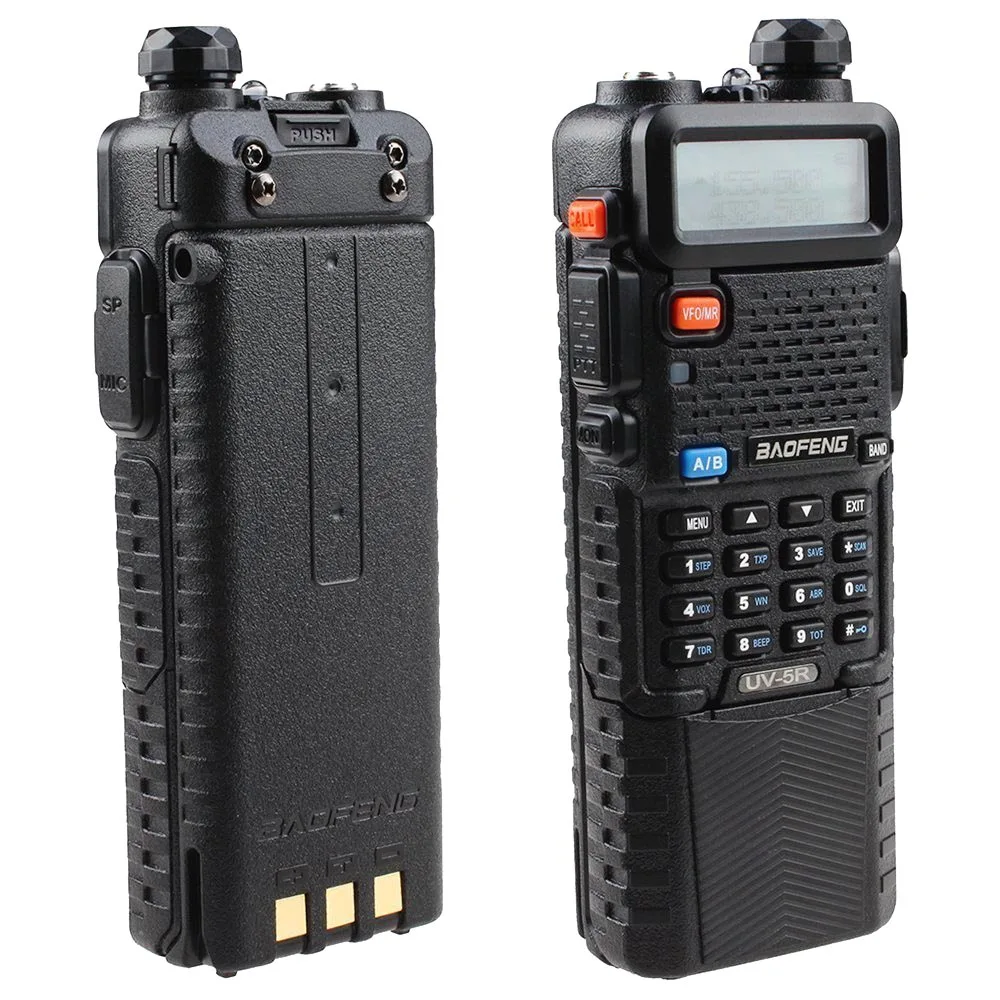

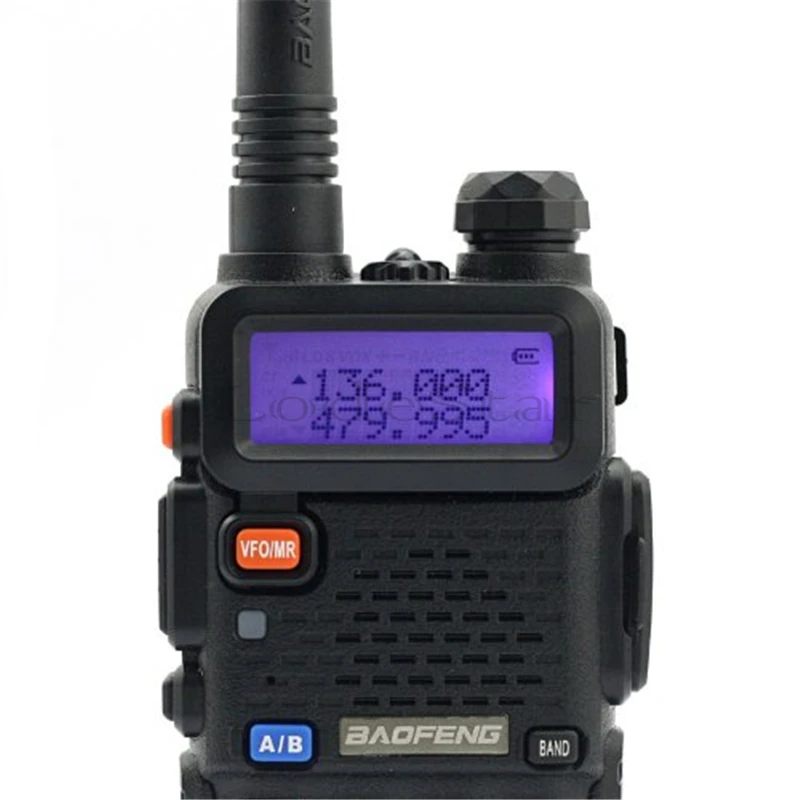

baofeng uv-5r,baofeng un 5r,Baofeng walkie talkie,uv-5r,baofeng uv 5r,two way radio,radio walkie talkie,ham radio,radio cOriginal Baofeng UV-5R Walkie Talkie Tri-Power 8W/4W/1W Long Battery 3800MAH Dual Band VHF UHF Two Way Radio FM Transceiver
рация
Description
Real pocket size dual band radio
Frequency Range: 136-174 / 400-519.995 MHz
Dual-Band Display, Dual Freq. Display, Dual-Standby
Output Power: 8/4 /1Watts
128 Channels 50 CTCSS and 104 DCS
Built-in VOX Function
1750Hz Brust Tone
FM Radio (65.0MHz-108.0MHz)
LED Flashlight
Large LCD Display
Hight /Low RF Power Switchable
25KHz/12.5KHz Switchable
Emergency Alert
Low Battery Alert
Battery Saver
Time-out Timer
Keypad Lock
Monitor Channel
Channel Step: 2.5/5/6.25/10/12.5/25KHz
ROGER SET
Technique Specification
General |
||
Frequency Range |
65-108MHz (FM Receive only) |
|
136-174 MHz and 400-519.995 MHz (TX/RX) |
||
Channel No. |
128 |
|
Frequency Stability |
±2.5ppm |
|
Antenna |
High gain Dual-Band Antenna |
|
Antenna Impedance |
50Ω |
|
Operating Voltage |
DC 7.4V |
|
Mode of operation |
Simple or semi-duplex |
|
Dimension W x H x D |
100 x 52 x 32 mm |
|
Weight |
250g including battery, antenna |
|
Transmitter |
||
Output power |
8W / 4W / 1W (Max 8W) |
|
Modulation Mode |
16kΦF3E / 11kΦF3E |
|
Maximum deviation |
5kHz(Wide) / 2.5kHz(Narrow) |
|
Spurious Radiation |
7μW |
|
Adjacent Ch. power |
≤-65dB(Wide) / ≤-60dB(Narrow) |
|
Pre-emphasis characteristics |
6dB |
|
Current |
≤1.6A |
|
CTCSS/DCS deviation |
0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow) |
|
Intermediation sensitivity |
8-12mv |
|
Intermediation distortion |
10 |
Package Include:
- 1 x Portable BF-UV5R radio
- 1 x Antenna
- 1 x Li-ion battery pack
- 1 x LI-ion charger
- 1 x Belt clip
- 1 x The sling
- 1 x Earpiece
- 1 x User’s manual
