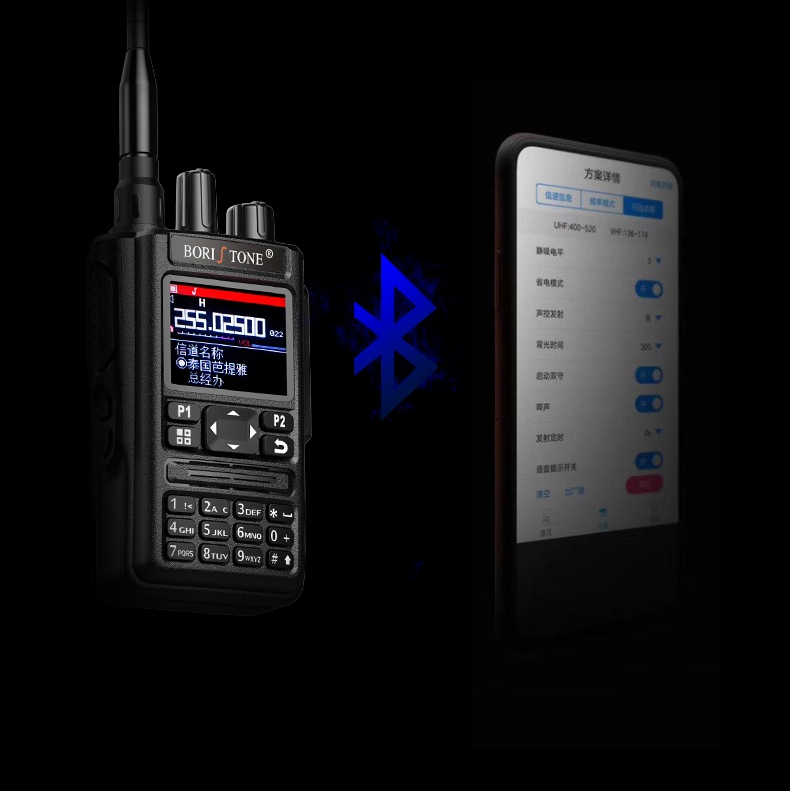

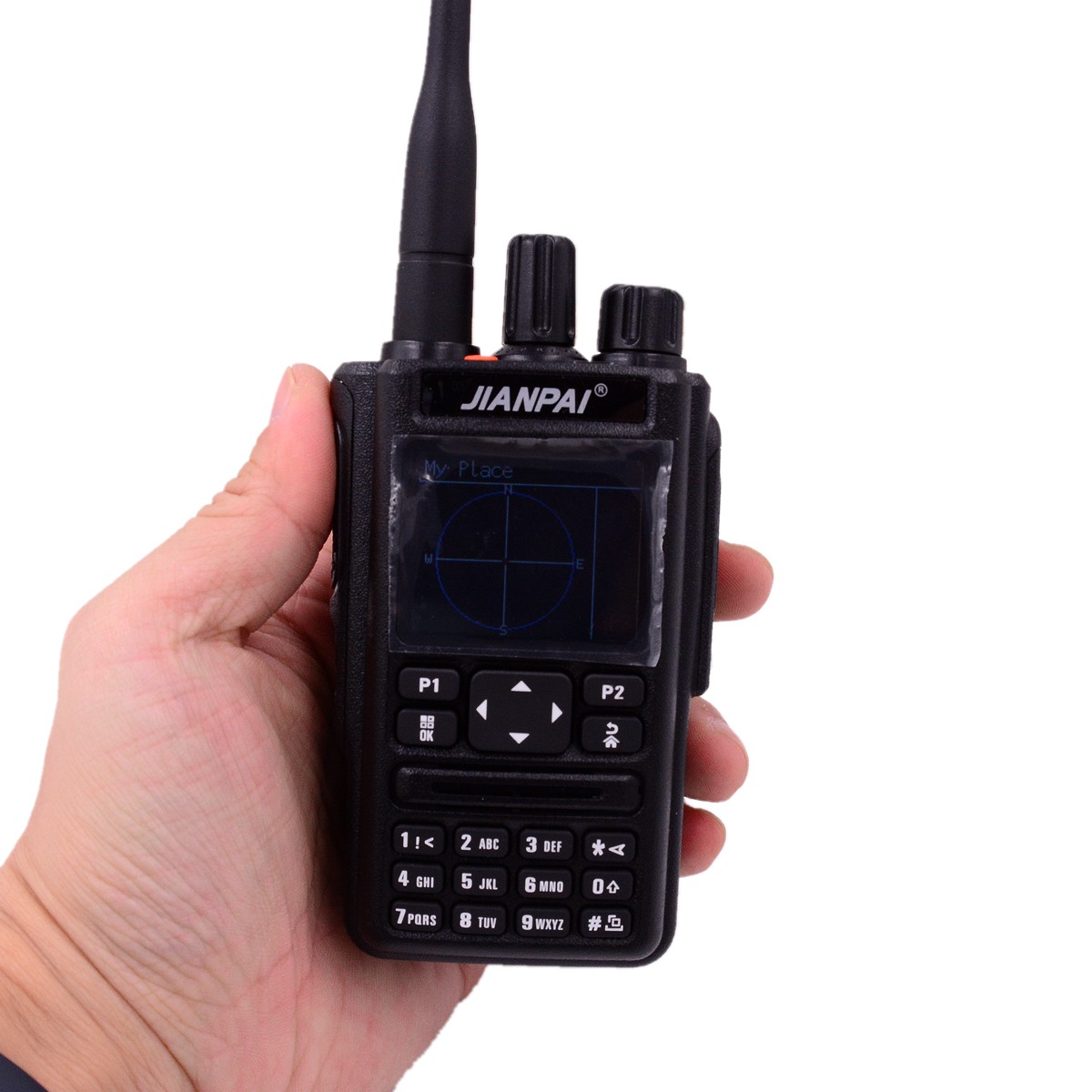

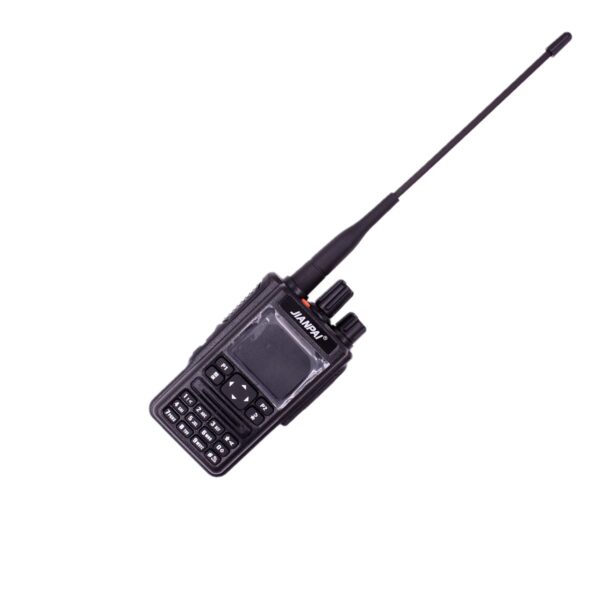

HAM Two Way Radio Bluetooth Program GPS Location APRS 136-520Mhz Multiband Receiver USB Type-C Charge Wireless Comminactor
Function:
GPS:
North latitude, East longitude, Altitude
loction Sharing,Measuring Distance
Frequency Range: 6 Bands
- 76-108MHz(FM Radio RX)
- 136-174MHz(RX/TX)
- 175-220MHz(RX)
- 230-250MHz(RX)
- 330-350MHz(RX)
- 350-400MHz(RX/TX)
- 400-520MHz(RX/TX)
-Frequency /CTCSS Detection
-999 Memory Channel
-1.77inch LCD Color Display
-Non-CTCSS(60-260HZ)&DCS(D0000N/I-D777N/I)
-VOX Function
-Emergency Function
-Scan Function
-Battery Save
-Squelch Function
-PC Programming
-Monitor Function
-Low Power Prompt
-TOT(Time-out Timer)
-BCLO(Busy Channel Lock)
-DTMF Encoding/Decoding
-SOS
-Prior Channel Scanning
-CTCSS/DCS Scan
-Multi Single-Tone Pulse (1750Hz,2100Hz,1000Hz,1450Hz)
-Multi Keypad Lock Modes
-PTT ID
-Wide/Narrow Bandwidth Selection
-Operational voice prompt in Chinese and English
-Display interface in Chinese and English
-Stopwatch function
Specifications:
Intergration
Frequency Range
TX:136-174MHZ/400-520MHZ
RX:76-108MHZ
 136-174MHZ 230-250MHZ 350-400MHZ 400-520MHZ
Step:5/6.25/10/12.5/25/30/50/100KHz
Channel Number:512
Work Mode:F2D/F3E
Operating Temperature:-20°c to 60°c
Antenna Resistance:50Ω
Battery:7.4V DC 2800mAh
Weight:242g(with battery and antenna)
Size:123Ă—65Ă—36mm(without antenna)
Transmitter
Wide Bandwidth
Narrow Bandwidth
Type of Modulation
16K F3E
11K F3E
Adjacent Channel Power
≥70dB
≥60dB
Spurious
≥60db
≥60dB
Audio Response
+1~3dB(0.3~3KHz)
+1~3dB(0.3~2.55KHz)
Max Frequency Deviation
±25KHz
±12.5KHz
Frequency Stability
±2.5ppm
Audio Distortion
≤5%
Ouput Power
10W
Receiving
Wide Bandwidth
Narrow Bandwidth
Adjacent Channel Selectivity
≤70dB
≤60dB
Inter Modulation
≤65dB
≤60dB
Spurious Response
≤70dB
≤70dB
Audio Response
+1~3dB(0.3~3KHz)
+1~3dB(0.3~2.55KHz)
Signal to Noise Ratio
≥45dB
≥40dB
Audio Distortion
≤5%

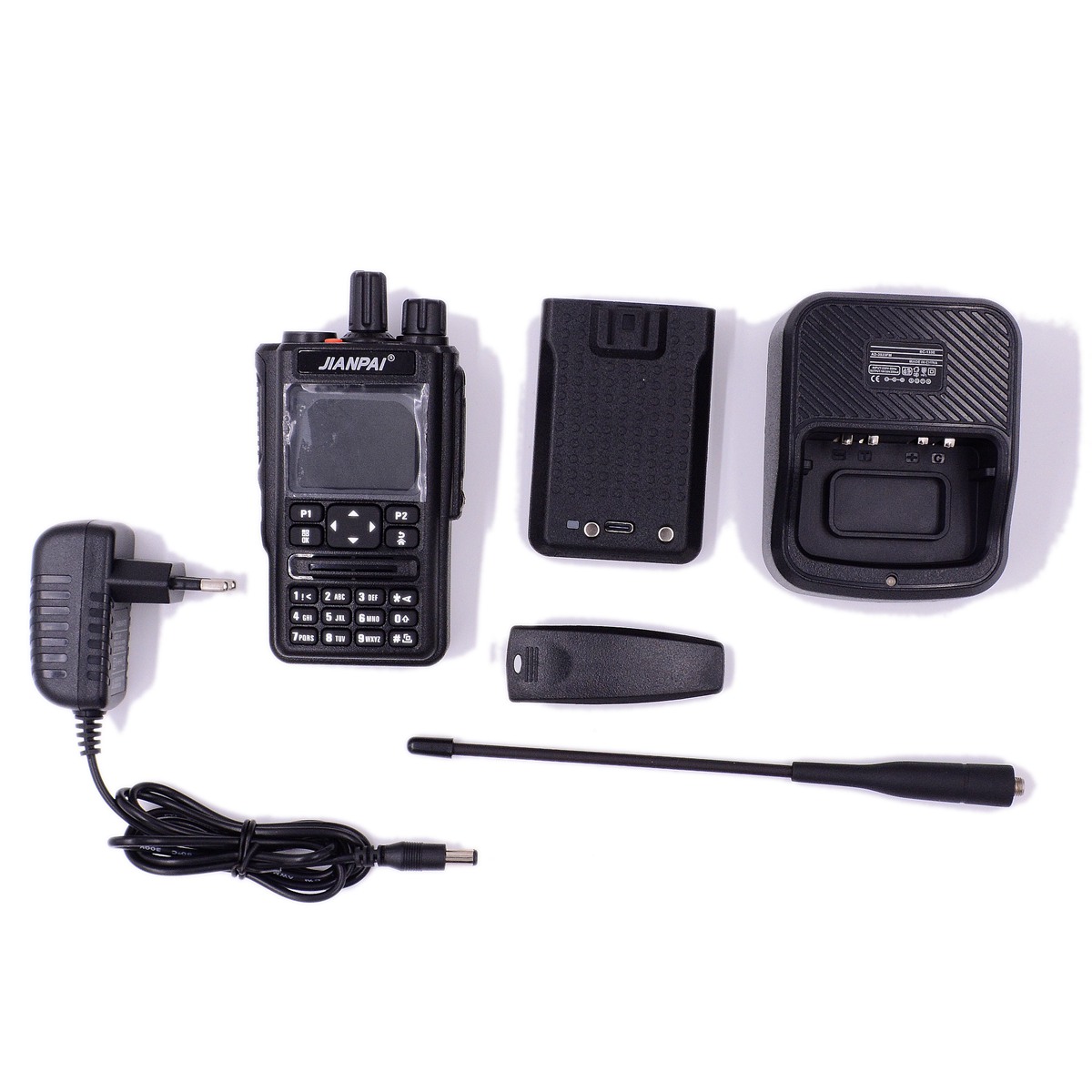

Package Contents:
1Ă— 8800UV Radio GPS bluetooth program(support Android APP program)

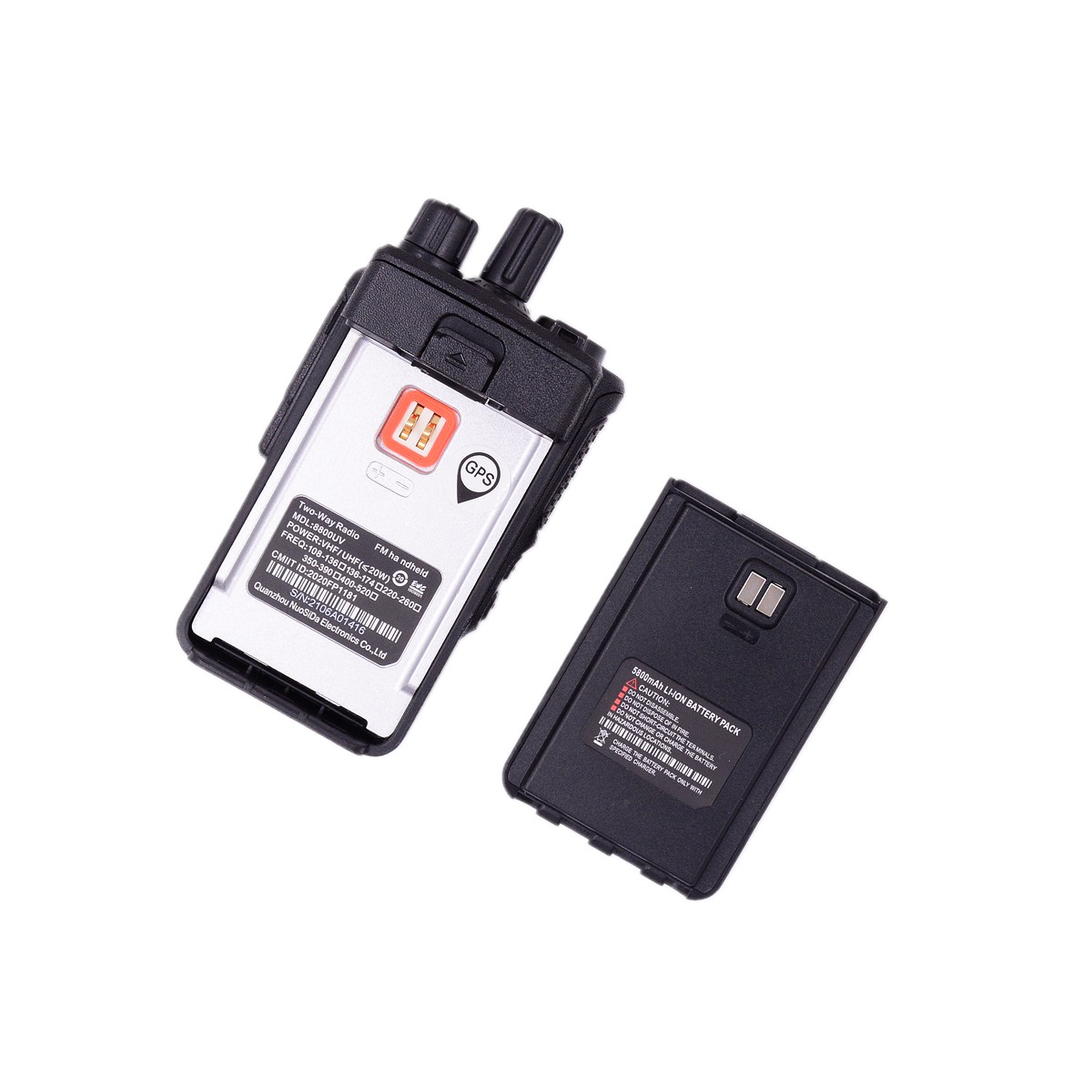

1Ă— 2000mAh Li-ion Battery
1Ă— Intelligent Charger
1Ă— Belt Clip
1Ă— SMA-Female Antenna
1Ă— Handstrap
1Ă— User’s Manual
