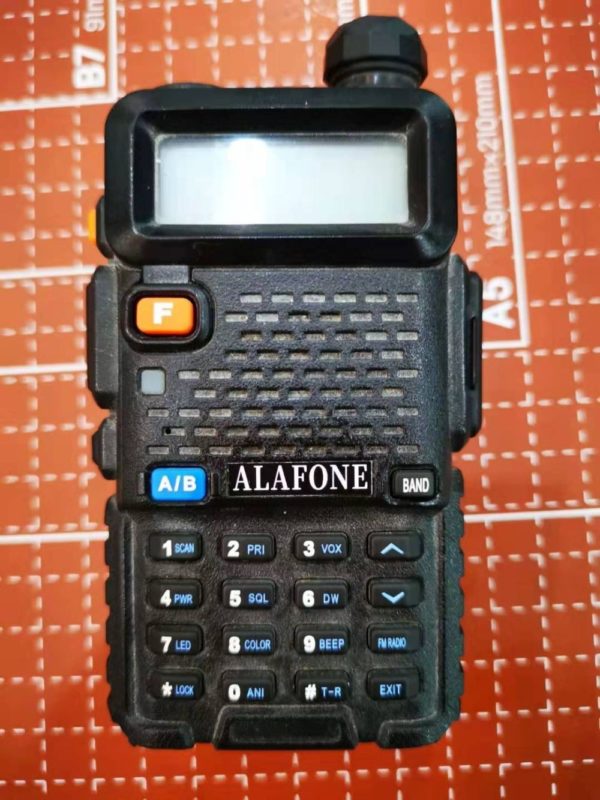

ALAFONE A5R 5W 128CH VHF136-174MHz & UHF 400-520MHz CB FM Radio Transceiver
- Durable Wear Resistant,Sensitive and durable
- Environmental protection PC
- Rubber keyboard
- Dual-band handheld transceiver with display function
- Commercial FM radio receiver (65MHz-108MHz)
- Built-in LED flashlight
- Built-in RX CTCSS/DCS scan
- Function VOX
- Alarm function
- Broadband/narrowband selectable
- Function beep on the keyboard
- Dual Watch/dual Reception
- Crossband reception/transmission
- Battery saving function
- Programmable by PC
- Built-in key lock
| ALAFONE Brand | |
| Model | ALAFONE A5R Walkie Talkie |
| Output power | <=5W |
| High/Low TX power selectable | 4W/1W |
| Band | VHF:136-174MHz &UHF: 400-520MHz |
| Battery capacity | 1800mAh |
| Battery type | Li-ion battery |
| Rated Voltage | 7.4V DC±10% |
| 128 groups channels storage | Shortcut menu operation mode |
| VFO & Memory channels scan | Emergency Alarm |
| Time-out Timer (TOT) | 0~9 grades VOX selectable |
| PTT & ANI ID | FM radio and 25 stations storage |
| Voice companding | 50 CTCSS/104 DCS |
| High/Low TX power selectable | Busy channel lock-out(BCLO) |
| DTMF function | OFF SET function |
| Wide/Narrow Band(25kHz/12.5kHz) | A/B band independent operation(UV UU VV) |
| VOX function | Yes |
| Busy lockout function | Yes |
| Scanning function | Yes |
| Time-out Timer (TOT) function | Yes |
| Battery voltage display function | Yes |
| Channel name display and editing functions | Yes |
| Signal strength indicator | Yes |
| FM radio | Yes |
| Emergency alarm function | Yes |
| Antenna Impedance | 50ohm |
| Weight | 255g |
| Frequency stability | ±2.5ppm |
| Carier wave tolerance | 5ppm |
| Modulation | 16kØF3E / 11kØF3E |
| Max frequency deviation | < 5kHz(Wide) |
| < 2.5kHz(Narrow) | |
| Modulation character | 6 dB per fold frequency patch |
| Emission current | < 1.6A(5W) |
| CTCSS / DCS | 0.5±0.1kHz(Wide) |
| 0.3±0.1kHz(Narrow) | |
| Sensitivity | < 0.16µV(12dB SINAD) |
| Silent sensitivity | < 0.2µV |
| Intermediation Distortion | <10% |
| Inter modulation | 8-12mv |
| Adjacent channel selectivity ( wide/narrow) | <-65dB(Wide) <-60dB(Narrow) |
Package Contents
- 1 x ALAFONE A5R Walkie Talkie
- 1 x Li-ion battery pack
- 1 x Antenna
- 1 x Belt Clip
- 1 x ENG Manual
- 1 x Desktop Charger
- 1 x Earpiece for free
