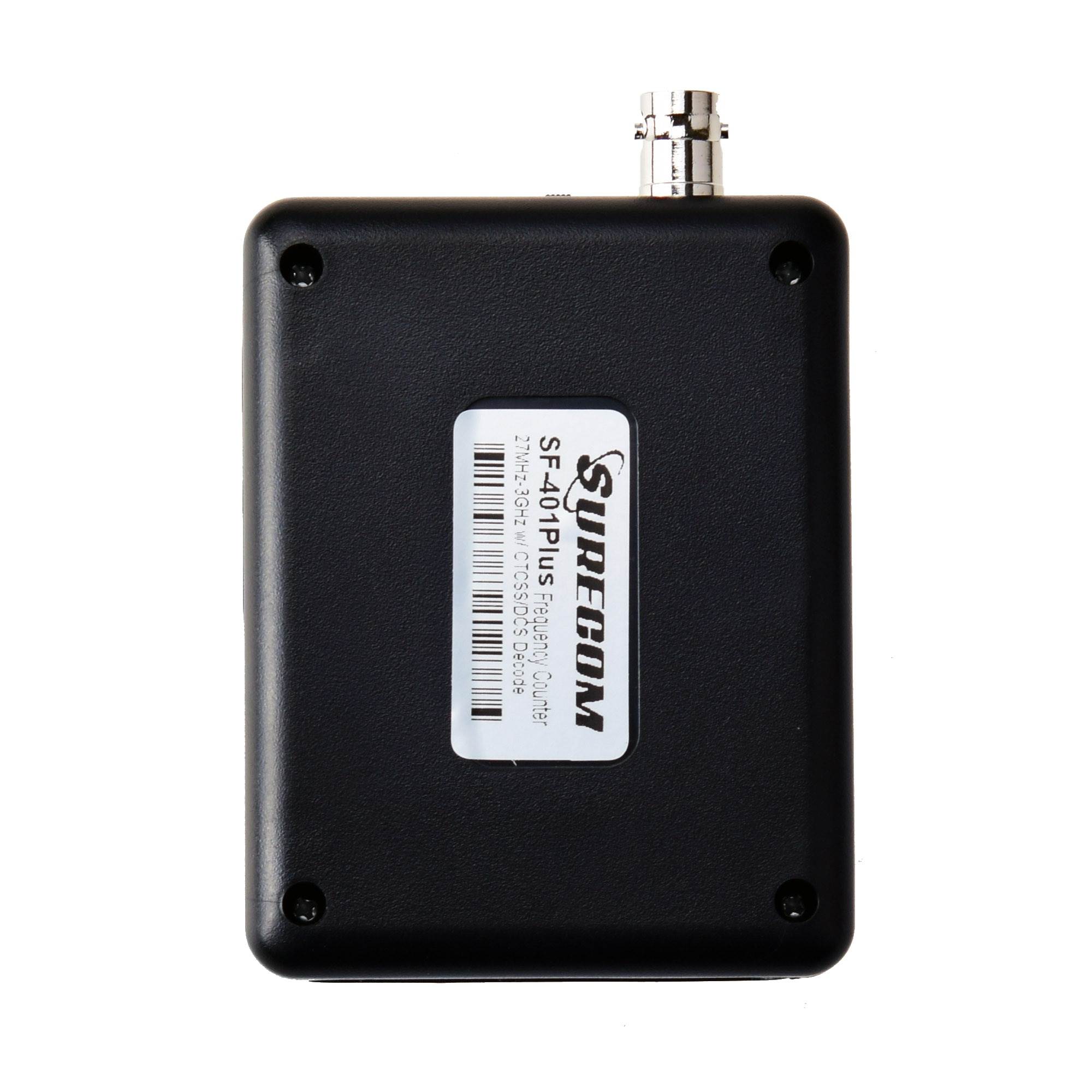

Surecom SF-401 Plus Frequency Meter Radio HandHeld Frequency Counter

Original price was: $108.25.Current price is: $48.69.

& Free Shipping

Availability: In stock

Guaranteed Safe Checkout
Sold By: Two Way Radio

Surecom SF-401 Plus Frequency Meter Radio Hand-Held Frequency Counter 27Mhz-3000Mhz Portable CTCSS/DCS Decoder

Introduction:

The frequency meter capable of measuring the parameters of the frequency of the continuous carrier signal walkie-talkies , with signal strength indicator.

it is the tool of choice for maintenance personnel ,test frequency and signal strength of wireless enthusiasts.

This portable frequency counter is designed for counting continuous wave signal comes from Two-way Radio.

There are easy ranges for you to choose. The ranges cover most of the frequency of the two way radios you want to measure.

Its four-button control is easy to use and its small size allows you to carry it anywhere you like.

Work by TCXO(Temperature Compensate X’tal (crystal) Oscillator) ,In the range of -45 ℃ ~ 65 ℃ can reach ± 2 ~ ± 4ppm accuracy

This include very interesting frequency areas such as 2m HAM radio, all VHF and UHF

DMR Radio signal e frequency counter.

Easy Battery level

digital mode for DMR radio only, not for other digital device



Feature & Specification:



Frequency range: 27Mhz-3000Mhz

! Note: (27MHz to 100MHz It can not be guaranteed and the corresponding normal emission appliance)

CTCSS/DCS Decoder (must be 136-174/400-520MHz)

Frequency counter for DMR radio

Frequency digital 0.000 or 0.0000 ( +-0.001)

Work by TCXO( Temperature Compensate X’tal (crystal) Oscillator) 2~2.5ppm

Frequency Response time: 0.2-0.5sec.( CTCSS/CDCSS >0.5-1sec)

TFT Color Display 240 x 320 ,LCD Dim level setting

Build-in Li-ion battery

Net Weight: 113g

4 buttons control

Auto power off 1-9minutes

Charging battery LED indicator



Power On/Off

Power On –Press and Hold down the [black key] by 2 second

Power Off –Press and Hold down the [black key] by 4 second of number count down to 0

Charging the battery

Plug the Power cord into adaptor , for Micro USB connected SF-401, The Led indicating:

*The RED Led is light – Charging

* The Green Led is light – Full

How to check Frequency measuring. See PIC.3



The transmitter near the frequency counter antenna , see the signal reception conditions is zone green, you can test. Please see Pic.3

cautions:

e.g. display 1800.000Mhz , The transmitter distance is too close to the frequency counter will affect the test results, , the signal bar is red .(see Pic.1)

e.g. display 0.000, , The transmitter distance is too far to the frequency counter and signal is weak ,will affect the test results, the signal bar is low .(see Pic.1)

! Note: (27MHz to 100MHz It can not be guaranteed and the corresponding normal emission appliance) .



How to check Frequency of Digital DMR Radio

Press[ F3 Digital] from Measuring screen mode See PIC.1

Note: Use Digital mode have 3 Decimal only



MENU funtion setting and save. See PIC.4

Press [F1] > into menu Page

Press [F3 down] or [F4 Up] into System and Press [F2 Rtn] into system Page PIC.4

Press[F3 down] or [F4 Up] select funtion ,Press [F2 Edit] > [F3 – ][F4 +] change mode

Press[Menu] > [F1 ]to Exit or [F4 ] to Save and Exit



Menu Setting

Rf defect level: The smaller the rf detect level, the more sensitive



How to check CTCSS/DCS code

1.Radio must be 136-174/400-520MHz

2.Radio must be ANALOG



Note: (27MHz to 100MHz It can not be guaranteed and the corresponding normal emission appliance)



CTCSS/DCS Decoder for ANALOG mode



Package Contents

1x SF401 PLUS Frequency Counter

1 x UHF Antenna

1x English User Manual

1x USB charger cable

1x USB AC adapter 100-240V
