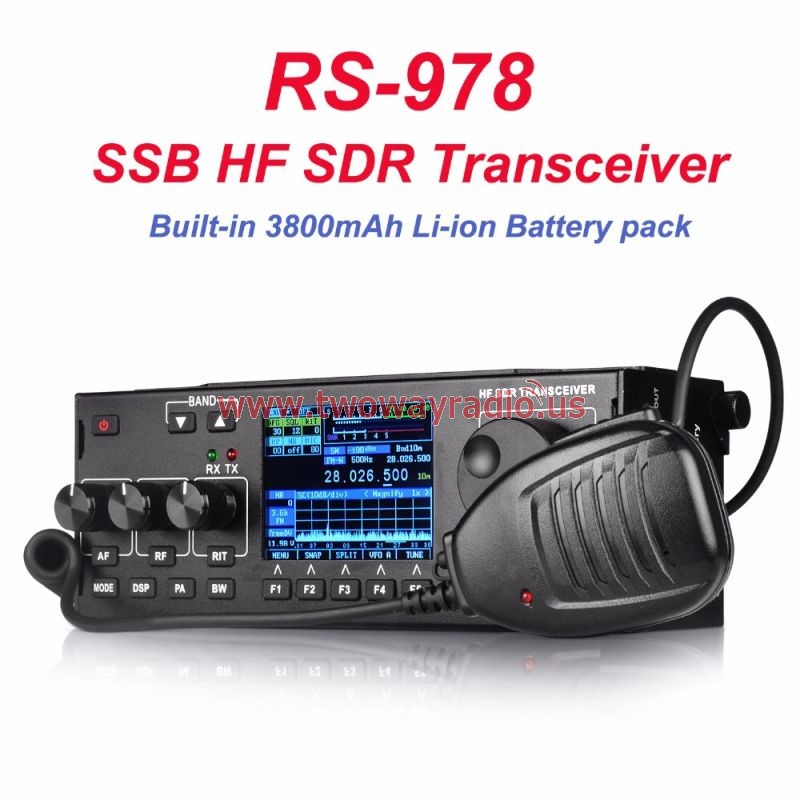

RS-978 HF SDR Ham Radio SSB HF Transceiver with 3800mAh Battery Pack

RS-978 HF SDR Ham Radio 1.8-30MHz SSB HF Transceiver with 3800mAh Battery Pack

Features:

• 3800mAh Large Capacity Lithium Polymer Battery, Suitable for outdoor operation
• Support Both Whole Equipment and Single Battery Charging
• Support Type-C USB Charging
• Spectrum Dynamic Waterfall Display
• Multiple Working Modes: Receive Mode, Transmit Mode, TUNE Mode, VFO Mode, SPLIT Mode
• DSP Digital Signal Processing Noise Reduction
• Automatic Notch Filter
• Humanized Interface Color Display
• Receive Fine Tuning Function, Changeable MIC Gain Value
• VCC Power Supply Voltage Indication Table
• Transmit Signal Strength Display Table
• Multifunctional Instrument: SWR Standing Wave Ratio Meter, AVD Audio Frequency Meter, ALC Signal Modulation Meter



Specifications:

Frequency Range – RX/TX: 1.8-30MHz

Battery Capacity: 3800mAh Li-polymer Battery (DC11.1V)

Operating Mode – SSB(J3E)，CW，AM, FM, FREE-DV

Output Power – Maximum 15W

Receiving Sensitivity – ＜-95dBm

Minimum Frequency Step – 1Hz

Operating Voltage – DC13~15V

Antenna Impedance – 50Ω

Frequency Stability – ±1.5PPM @ Power on 5 Minutes (Standard) ; ±0.5PPM if Optional TCXO Used

Product Dimension (W × H × D) – 208×81.09×73.2mm

Weight – 918.8g (Battery and Mounting Bracket Included)



Each Set Package Contain:

1× RS-978 HF SSB HF Transceiver

1×3800mAh Li-ion Battery Pack

1× AC Adapter with Power Cord

1× Power Cord

1× Speaker Microphone

1× Wrench

1× BNC To SO239 Convertor

1× User Manual
