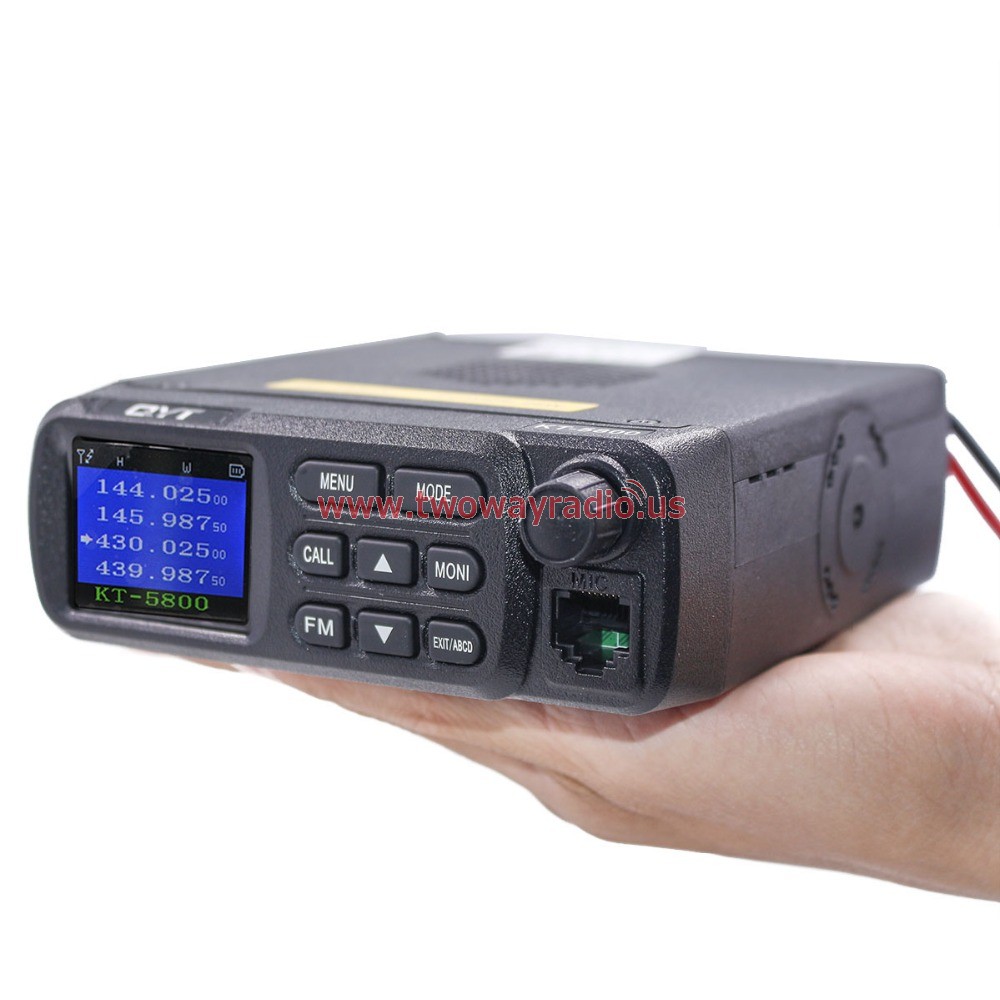

QYT KT5800 Mobile Radio Mini 25W 12/24V Dual Band Quad-Standby Color Screen
Features:
12/24V, Can connect to the TRUCK/CAR directly without additional transformer
Dual Band,Quad-standby
25W Output Power
External speaker/PTT
Mini Size
PC Program
Remote Stun,Remote Activate,Remote Kill
DTMF Function, 2 tone, 5 tone
PTT-ID Code
Repeater Function
Long-distance Communication
FM Radio
Alarm Function
Monitor
Specifications:
| Item number | KT-5800 |
| General | |
| Frequency Range | VHF:136-174MHz UHF:400-470MHz |
| Number of Channel | 200 |
| Channel Spacing | 25KHz 20KHz 12.5KHz |
| Phase lock step | 5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 15 KHz, 25 KHz |
| Working Voltage | 13.8V DC or 24V DC |
| Squelch way | CTCSS/DCS/5Tone/2Tone/DTMF |
| Frequency Stability | ±2.5ppm |
| Operating Temperature | -20c~+60c |
| Dimension(W x H x D) | 123(W) x 44(H) x 158(D)mm |
| Weight | 1.2KG |
| Receiver | ||
| Broadband | Narrow band | |
| Sensitivity | ≤ 0.25μV | ≤ 0.35μV |
| Channel choice | ≥70dB | ≥60dB |
| Intermodulation | ≥65dB | ≥60dB |
| Spurious Rejection | ≥70dB | ≥70dB |
| Audio response | +1~ -3dB(0.3~3KHz) | +1~ -3dB(0.3~2.55KHz) |
| Signal to noise ratio | ≥45dB | ≥40dB |
| Audio distortion | ≤5% | |
| Audio output power | ≥2W | |
| Transmitter | ||
| Broadband | Narrow band | |
| Output power | 25W/20W(VHF/UHF) | |
| Modulation Mode | 16KΦF3E | 11KΦF3E |
| Channel Power | ≥70dB | ≥60B |
| Signal to noise ratio | ≥40dB | ≥36dB |
| Parasitic harmonic | ≥60dB | ≥60dB |
| Audio response | +1~ -3dB(0.3~3KHz) | +1~ -3dB(0.3~2.55KHz) |
| Audio distortion | ≤5% | |
Each Set Package Contain:
1× QYT KT5800 Mobile Radio Dual Band
1× Microphone
1× Car Power Cable
1× Clip for Speaker Microphone
1× Mounting Bracket
1× Screw Sets
1 × User Manual
Add Other Optional Items
- Add USB Programming Cable
- Add Bluebooth Speaker Mic
- As pic show 1
- As pic show 2
- As pic show 3
