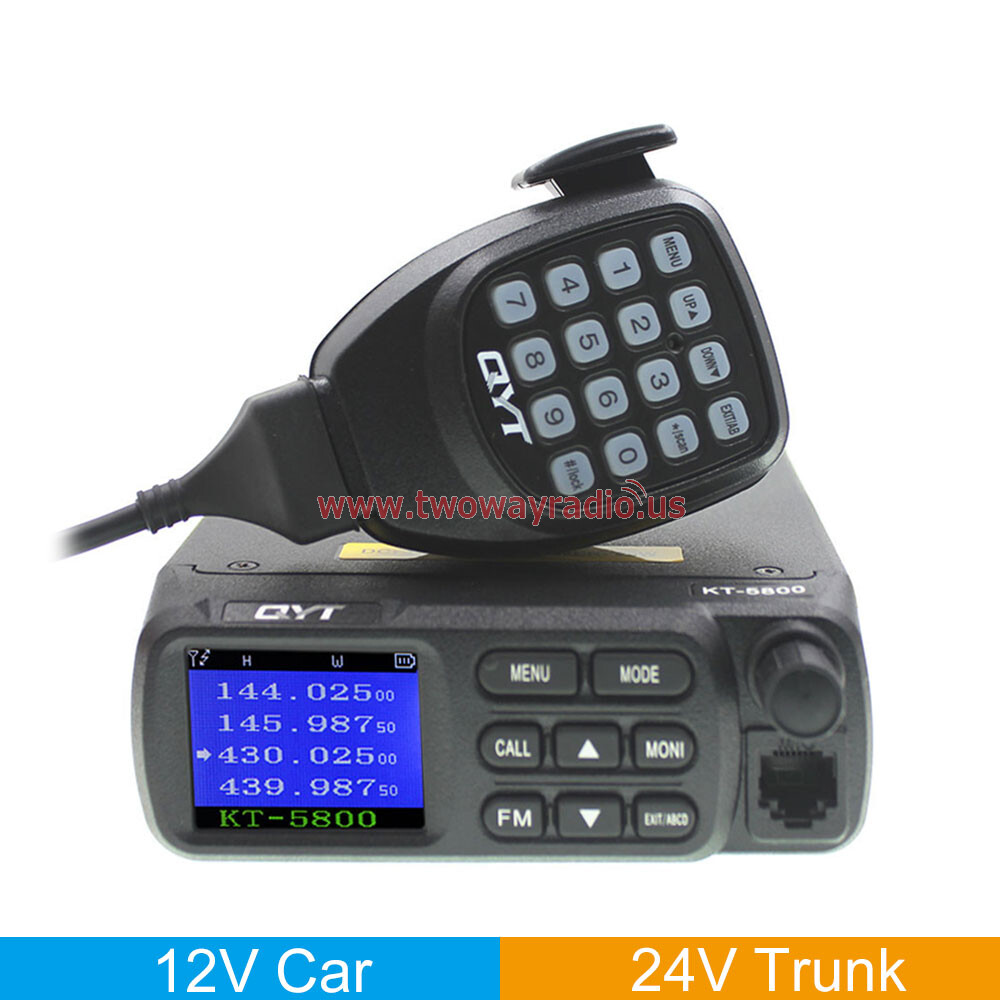

QYT KT-5800 12/24V Truck Mini Car Radio UV Dual Band Quad-Standby Color Screen 136-174&400-480MHz KT5800 25W Walkie Talkie
Note: if you need software, please contact us.
Mini size, vehicle mobile radio
Dual band, Dual standby
V<25W U<20W Output power
Color display
Memory FM radio channel
Keypad lock-out
Transmit transit signal
PTT ID setting
DTMF signal
Patrol function
monitor function
Remote stun / kill/ Revive
Emergency Alarm function
2tone and 2tone signal
Cigarette lighter power supply, cooling fan
The QTY KT-5800 is 12/24V, So you can connect to the TRUCK/CAR directly without additional transformer
General specification
Frequency Range | VHF:136-174MHz UHF:400-480MHz |
Channel Capacity | 200 |
Channel Spacing | 25KHz, 20KHz, 12.5KHz |
Channel Step | 2.5KHz,5KHz,6.25 KHz,10 KHz,12.5 KHz,25 KHz |
Working Voltage | 13.8V DC±15% |
Squelch way | CARRIER / CTCSS / DCS / 5Tone / 2Tone / DTMF |
Frequency Stability | ±2.5ppm |
Operating Temperature | -20—+60℃ |
Dimension(W*H*D) | 123(W)*158(D)*44(H)mm |
Weight | 660g |
Receiver
Wide Band | Narrow band | |
Sensitivity | ≤0.25μν | ≤0.35μν |
Channel chioce | ≥70dB | ≥60dB |
Intermodulation | ≥65dB | ≥60dB |
Spurious Rejection | ≥70dB | ≥70dB |
Audio response | +1~~3dB(0.3~3KHz) | +1~~3dB(0.3~2.55KHz) |
Signal to noise ratio | ≥45dB | ≥40dB |
Audio distortion | ≤5% | |
Audio output power | ≥2W@10% |
Transmitter
Wide Band | Narrow band | |
Output power | 25W/20W(VHF/UHF) | |
Modulation Mode | 16KΦF3E | 11KΦF3E |
Channel Power | ≥70dB | ≥60dB |
Signal noise ratio | ≥40dB | ≥36dB |
Parasitic harmonic | ≥60dB | ≥60dB |
Audio response | +1~~3dB(0.3~3KHz) | +1~~3dB(0.3~2.55KHz) |
Audio distortion | ≤5% |
Package including:
Mobile radio*1,
DTMF Mic*1
Mounting bracket*1,
cigar-plu power cable*1,
screw set*1
