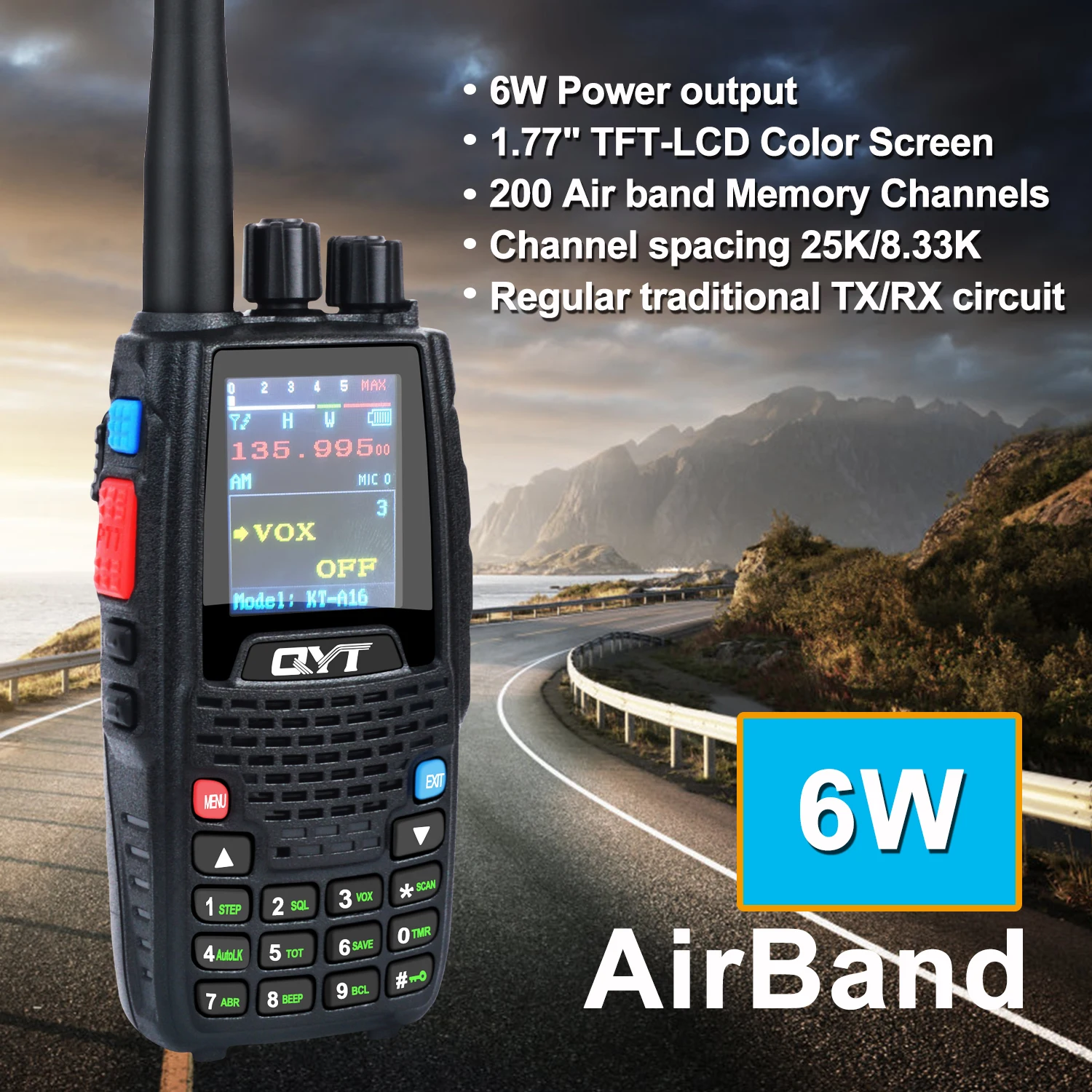

Air Band Transmitter Walkie Talkie Tx118.000-136.999MHz,Rx108.0000-136.999MHz 6W 200Ch W/NOAA Channels VOX QYT KT-A16 Radio
Features:
Superheterodyne Circuit
6W output Power
1.77”TFF-LCD color Screen
200 Memory Channels
10 NOAA Weather forecast Channels
Channel Spacing 25K/8.33K
VOX
Air Band: 118.00000-136.99975MHz for Tx, 108.00000-136.99975MHz for Rx
2.50/5.00/6.25/10.00/12.50/25.00K Frequency Step
Scanning
Time,Carrier or Search three kinds of Scanning Modes
PC programming
Squelch Level Adjustable
2000mAh Rechargeable Battery Pack
Specifications:
General | |
Frequency Range | TX:118.00000-136.99975MHz
RX:108.00000-136.99975MHz WX:161.650-163.275MHz |
Channel Spacing | 25kHz/8.33kHz |
Mode | 6k00A3E/5K60A3E |
16K0G3E(WX) | |
Number of Memory Channels | 200 |
Antenna Impedance | 50ohm |
Antenna Connector | SMA-Female |
Power Supply Requirement | 7.2V DC |
Current Drain | Less than 1.8A |
Operating Temperature range | -10°c`+60°c |
Dimensions | 62(W)*128(H)*35(D)mm |
Weight | 239g with 2000mah Battery |
Transmitter | |
Output Power | 6.0W(PEP),1.8W(CW) |
Modulation Limiting | 70-100% |
Audio harmonic distortion | Less than 10%(at 60% modulation) |
Ham and Noise Ratio | More than 35dB |
Spurious emissions | More than 46dB |
Frequency Stability | ±0.4kHz |
Receiver | |
Receive system | Double conversion superheterodyne |
Intermediate frequencies | 1st46.35MHz,2nd 450kHz |
Sensitivity | COM: Less than 0dBu (at 6dB S/N) |
NAV: Less than 3dBu (at 6dB S/N) | |
WX: Less than -8dBu (at 12dB SINAD) | |
Squelch Sensitivity(Threshold) | COM/NAV: Less than 0dBu |
WX: less than -5dBu | |
Spurious response rejection Ratio | COM/NAV: More than 60dB |
WX:More than 30dB |
Note: Specifications are subject to change without notice due to Technology improvements .
Package Contains:
1×QYT KT-8A Air Band Radio Body
1× 2000mAh Rechargeable Battery Pack
1× SMA-Female Air band Antenna
1× AC Adapter
1× Desktop Charger
1× Battery Clip
1×Hand Strap
1×ENG Manual
