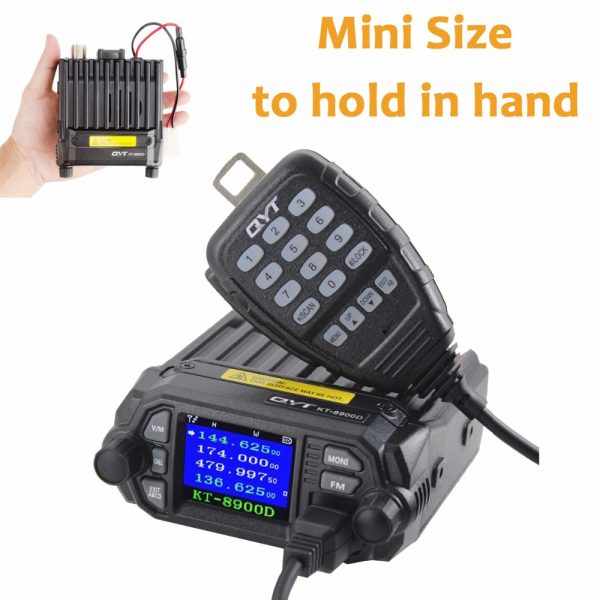

QYT 25W KT-8900D Dual Band Quad-standby Vehicle Mobile Ham Radio Walkie Talkie
NEW PRODUCTS PROMOTION EVENTS:
– Big Discount, GOODS IN STOCK (can be sent to you in 1-2 days after order confirm.)
UPGRADE Version of QYT KT-8900 Mini Size Mobile Radio:
– Dual Band with 4 Bands STANDBY in LARGE LCD
– WITH Cooling Fans for longer timer operation
– WITH AUDIO Connector for External Speaker
Specifications:
| Item number | QYT 8900D Mobile Radio |
| General | |
| Frequency Range | VHF:136-174MHz UHF:400-480MHz |
| Number of Channel | 200 |
| Channel Spacing | 25KHz 20K 12.5 |
| Phase lock step | 5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 15 KHz, 25 KHz |
| Working Voltage | 13.8V DC±15% |
| Squelch way | CTCSS/DCS/5Tone/2Tone/DTMF |
| Frequency Stability | ±2.5ppm |
| Operating Temperature | -20~+60 |
| Dimension(W x H x D) | 98(W) x 35(H) x 118(D)mm |
| Weight | 408g |
| Receiver | ||
| Broadband | Narrow band | |
| Sensitivity | ≤ 0.25μV | ≤ 0.35μV |
| Channel choice | ≥70dB | ≥60dB |
| Intermodulation | ≥65dB | ≥60dB |
| Spurious Rejection | ≥70dB | ≥70dB |
| Audio response | +1~ -3dB(0.3~3KHz) | +1~ -3dB(0.3~2.55KHz) |
| Signal to noise ratio | ≥45dB | ≥40dB |
| Audio distortion | ≤5% | |
| Audio output power | ≥2W@10% | |
| Transmitter | ||
| Broadband | Narrow band | |

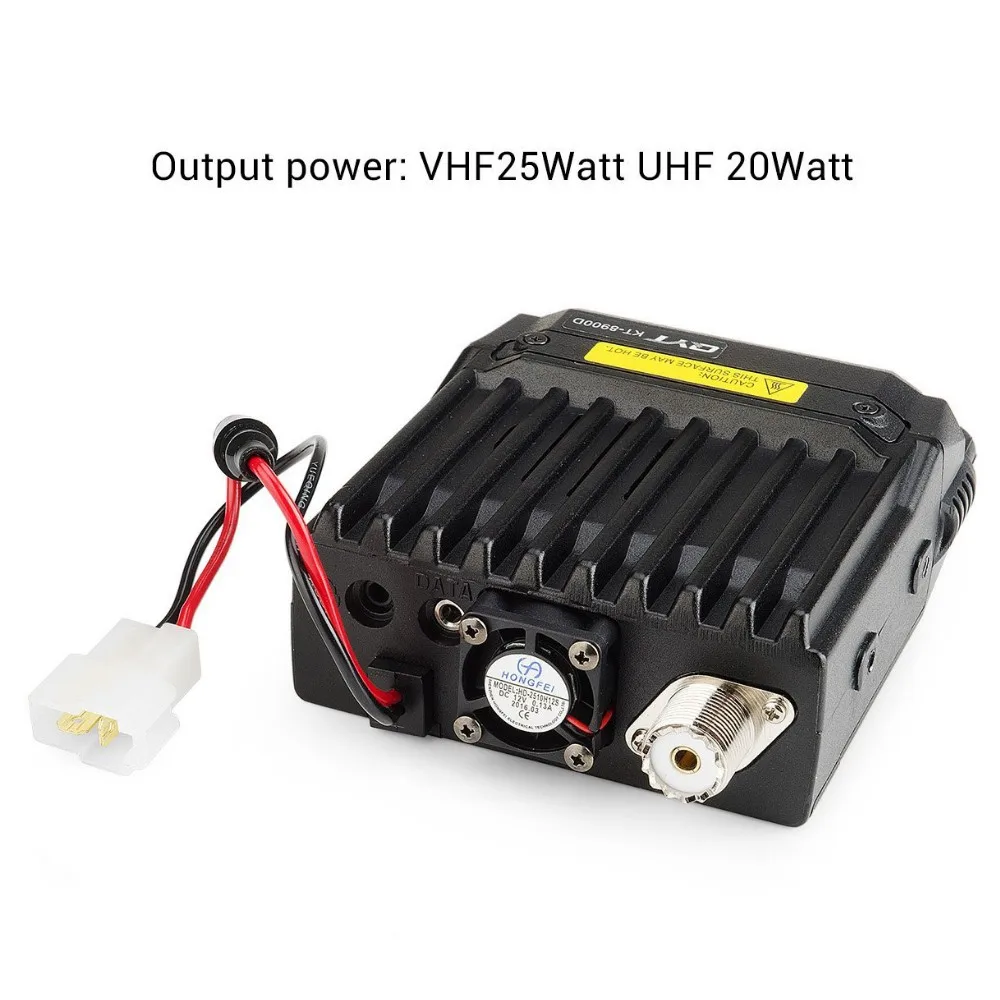

| Output power | 25W/20W(VHF/UHF) | |
| Modulation Mode | 16KΦF3E | 11KΦF3E |
| Channel Power | ≥70dB | ≥60B |
| Signal to noise ratio | ≥40dB | ≥36dB |
| Parasitic harmonic | ≥60dB | ≥60dB |
| Audio response | +1~ -3dB(0.3~3KHz) | +1~ -3dB(0.3~2.55KHz) |
| Audio distortion | ≤5% |
|

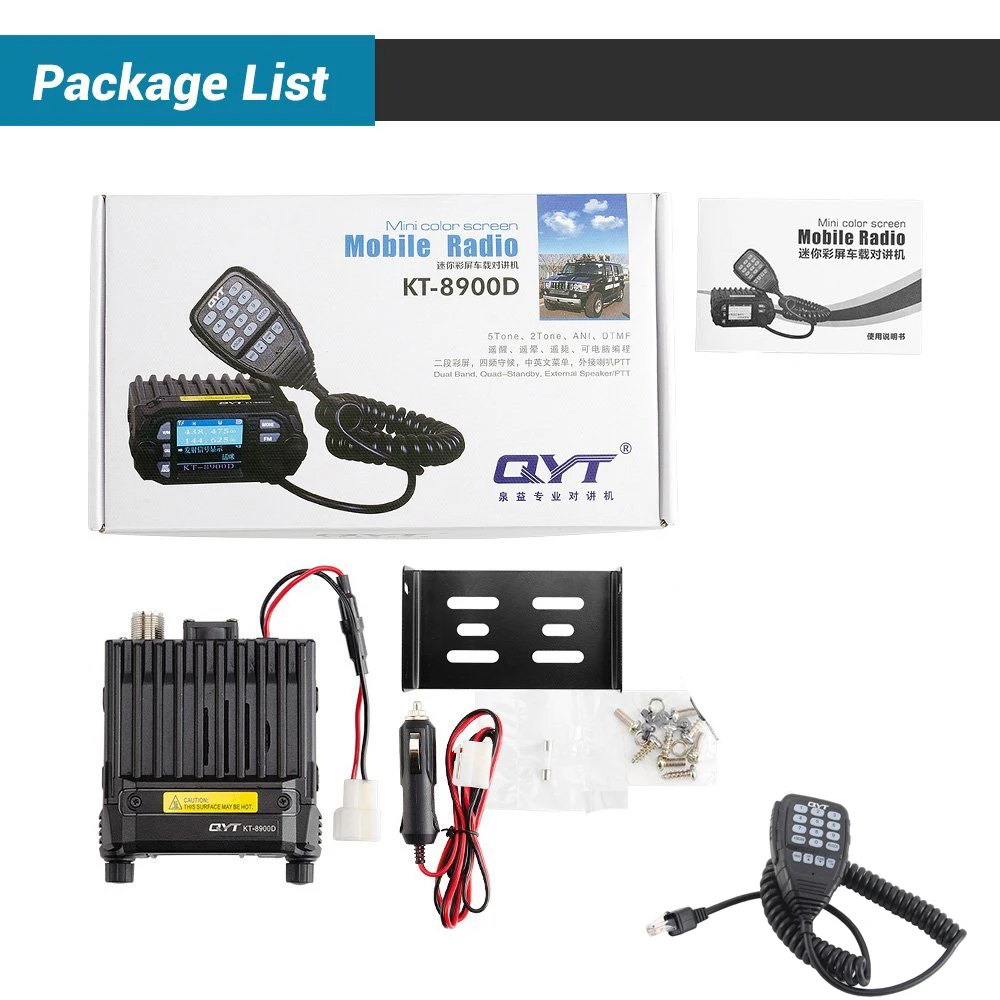

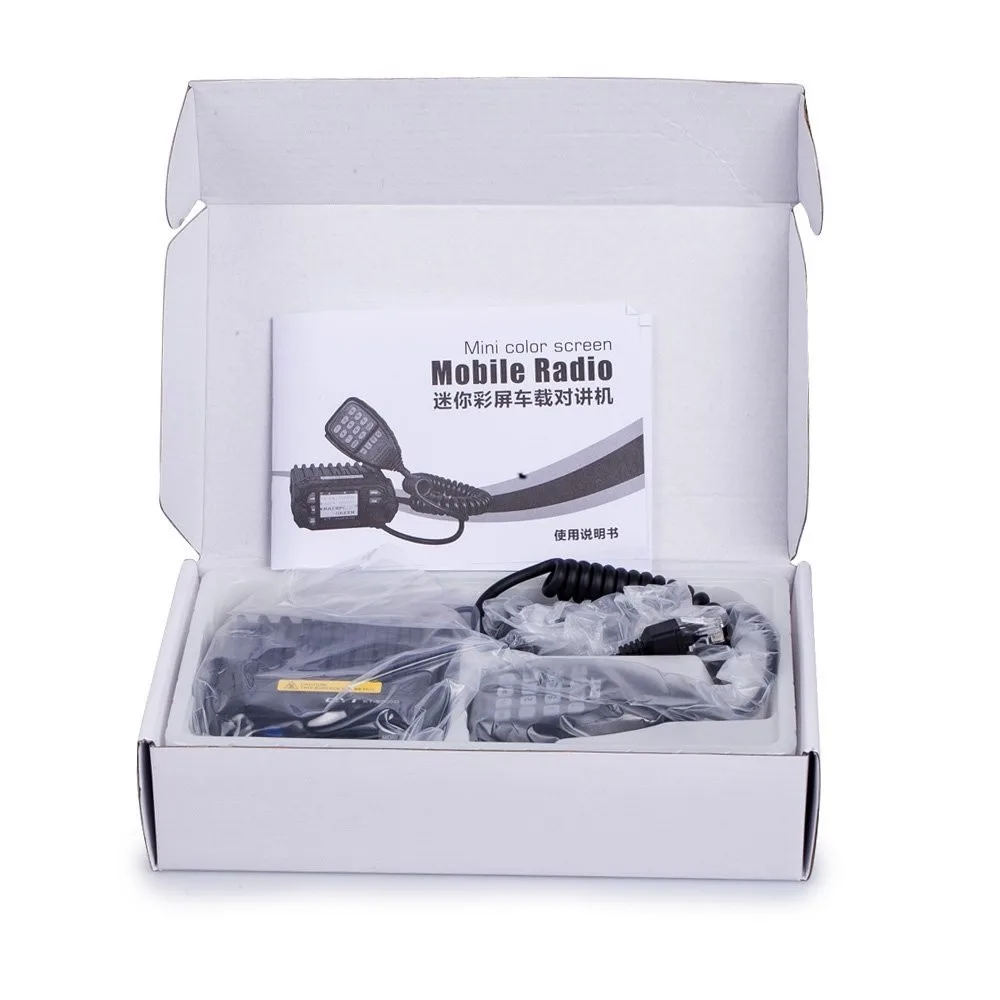

ONE STANDARD PACKAGE INCLUDES:
1 X QYT KT-8900D Radio

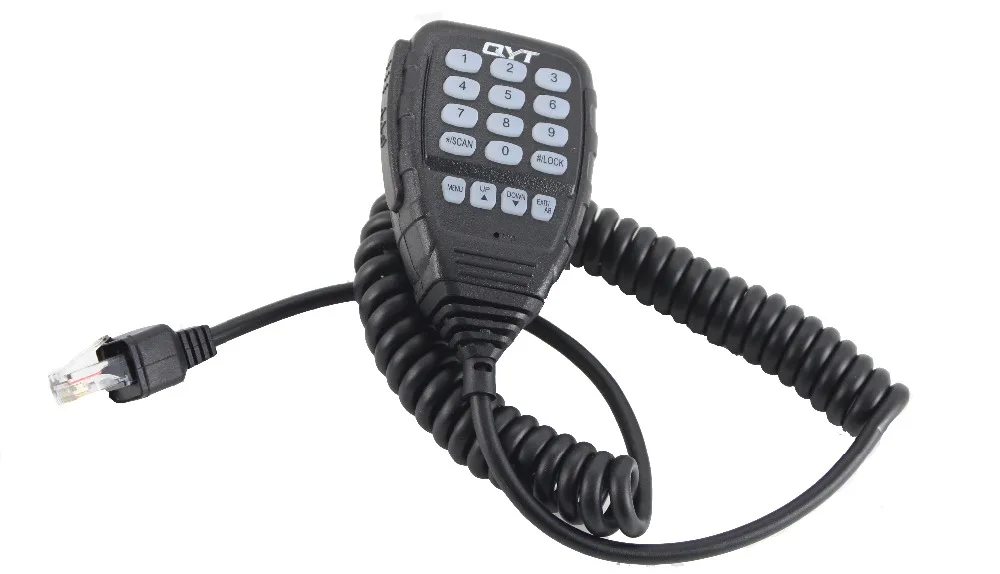

1 X Speaker Microphone with Keypad
1 X DC Power Cable (with Cigarette Lighter)
1 X Mounting Bracket
1 X Mounting Screws Kit
1 X Hanger clip for Microphone
1 X English User’s manual
