QYT KT-5000 Car Walkie Talkie VHF UHF Dual Band Mobile Radio
Walkie Talkie QYT KT-5000 VHF UHF Dual Band VOX Mini Color Screen Detachable Front Panel Scrambler FM Mobile Radio
Features:
– Power by 12V car cigarette lighter

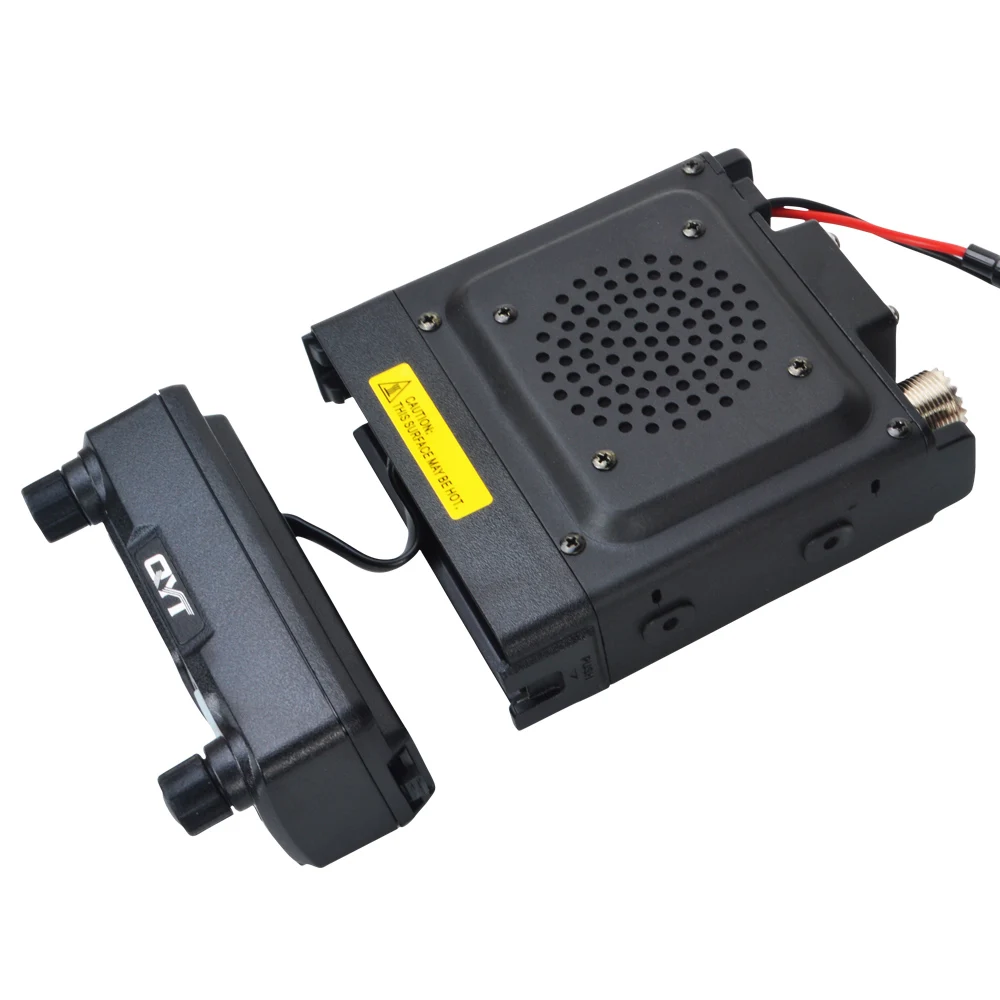

– Detachable front panel can be mounted at the most desirable operating position by a supplied 5 meter extendable connect cable
-Mini Size design, small as your palm
-Color Screen
-VOX function (Voice Operation Exchanged), Free your hands for a safety driving
-2.50/5.00/6.25/10.00/12.50/25.00KHz frequency space
-Scrambler
-Dual Band Standby working Mode (TMR)
-Carrier/CTCSS/DCS/DTMF/2TONE/5TONE
-200 Memory Channels
-VHF: 136-174MHz & UHF: 400-480MHz
-76-108.9MHz FM commercial Radio (Receiving only)
Specifications:
Item number |
KT-5000 |
General |
|
Frequency Range |
DUAL Band: VHF:136-174MHz, UHF: 400-480MHz |
Number of Channel |
200 |
Channel Spacing |
25KHz(Wide Band) 20KHz(Mid-Band) 12.5KHz(Narrow Band) |
Phase lock step |
5KHz, 6.25 KHz, 10 KHz ,12.5 KHz, 25 KHz |
Working Voltage |
13.8V DC±10% |
Squelch way |
Carrier/CTCSS/DCS/5Tone/2Tone/DTMF |
Frequency Stability |
±2.5ppm |
Operating Temperature |
-20℃~+60℃ |
Dimension(W x H x D) |
95(W) x 43(H) x 155(D)mm |
Weight |
500g |
Receiver |
||
Broadband |
Narrow band |
|
Sensitivity |
≤ 0.25μV |
≤ 0.35μV |
Channel choice |
≥70dB |
≥60dB |
Intermodulation |
≥65dB |
≥60dB |
Spurious Rejection |
≥70dB |
≥70dB |
Audio response |
+1~ -3dB(0.3~3KHz) |
+1~ -3dB(0.3~2.55KHz) |
Signal to noise ratio |
≥45dB |
≥40dB |
Audio distortion |
≤5% |
|
Audio output power |
≥2W±10% |
Transmitter |
||
Broadband |
Narrow band |
|
Output power |
25W/20W(VHF/UHF) |
|
Modulation Mode |
16KΦF3E |
11KΦF3E |
Channel Power |
≥70dB |
≥60B |
Signal to noise ratio |
≥40dB |
≥36dB |
Parasitic harmonic |
≥60dB |
≥60dB |
Audio response |
+1~ -3dB(0.3~3KHz) |
+1~ -3dB(0.3~2.55KHz) |
Audio distortion |
≤5% |
Each Set Package Contain:
1× QTY KT-5000 Mini Mobile Radio
1× Microphone
1× Car Power Cable
1× 5 Meter Extendable Connect Cable
1× Mounting Bracket
1× Screw Sets
1 × User Manual
Pictures:
