2020 Upgraded NanoVNA NanoVNA-F VNA HF VHF UHF Vector Network Antenna Analyzer

Original price was: $159.00.Current price is: $108.00.

& Free Shipping
Guaranteed Safe Checkout
Sold By: Two Way Radio

2020 Latest NanoVNA NanoVNA-F VNA HF VHF UHF Vector Network Antenna Analyzer + 4.3 inches IPS LCD

NanoVNA-F “Handheld Vector Network Analyzer” is a product based on the open source project of NanoVNA, which is more professional and practical. It includes a 4.3-inch IPS TFT LCD touching screen for clearer.

Specifications:
Main material: PCB
Color: black
Type: with battery, without battery (optional)
Battery: 1 * lithium battery, 3.7V, 5000mAh
Measurement frequency: 50KHz~1000MHz
RF output: -13dBm (Max.-9dBm)
Frequency accuracy: <0.5PPM
Port SWR: <1.1
Display: 4.3 inch IPS TFT (800*480)
USB interface: USB Type-C
Communication mode: CDC (serial)
Power consumption: USB 5V 200mA, can use battery powered, maximum charging current 2A
Output capacity: 5V/1A
Number of calibration points: 101
Number of scanning points: 101
Display tracking: 4, Marking: 4, Setting save: 5
Scanning time: about 1.9s/time (50KHz~1000MHz full frequency band)
Can measure S parameters, voltage standing wave ratio SWR, phase map, group delay, Smith chart and so on.
Item size: 140 * 75 * 20mm / 5.5 * 3.0 * 0.8in
Package size: 145 * 85 * 30mm / 5.7 * 3.3 * 1.2in
Package weight: 600g / 1.3lb

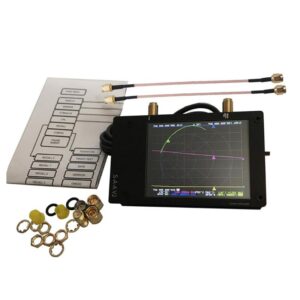

Package list:
1 * analyzer
2 * 200mm SMA-JJ RG316 Cable
1 * Set of Calibration Parts
1 * SMA-JJ Double Needle
1 * SMA Elbow (external screw inner hole to inner screw inner needle)
1 * Type-C Data Cable

主图NanoVNA_F_02NanoVNA_F_02NanoVNA_F_03NanoVNA_F_04NanoVNA_F_06NanoVNA_F_08Nanovna-f manualNanoVNA_F_05
