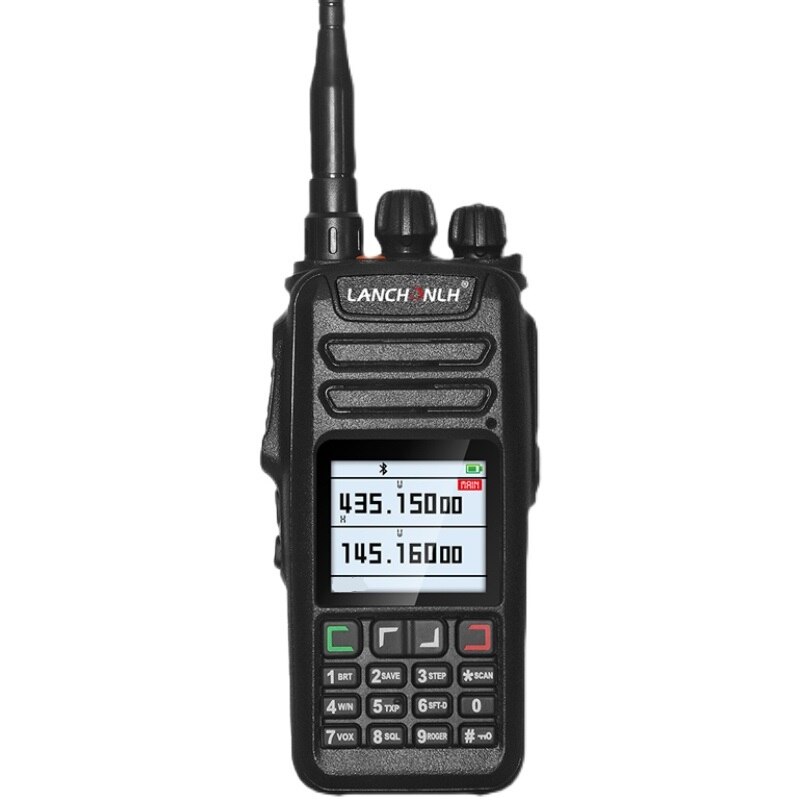

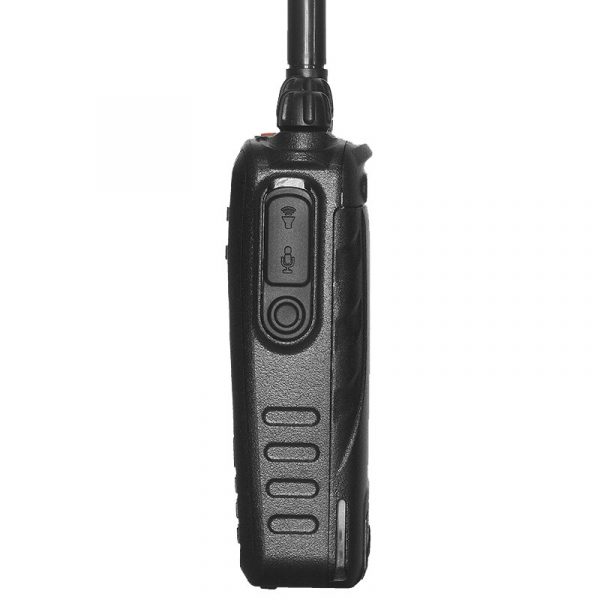

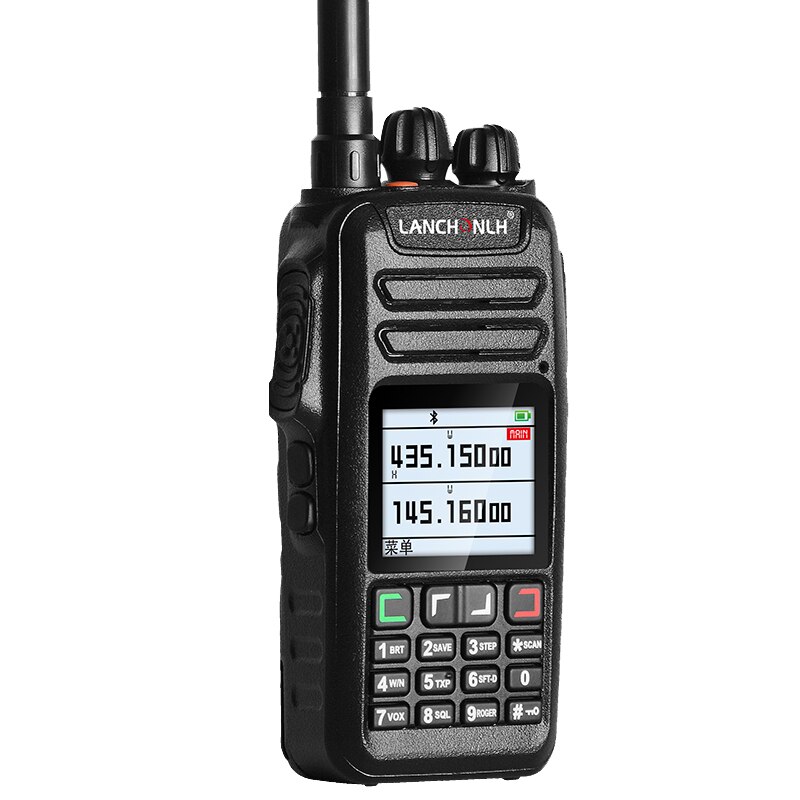

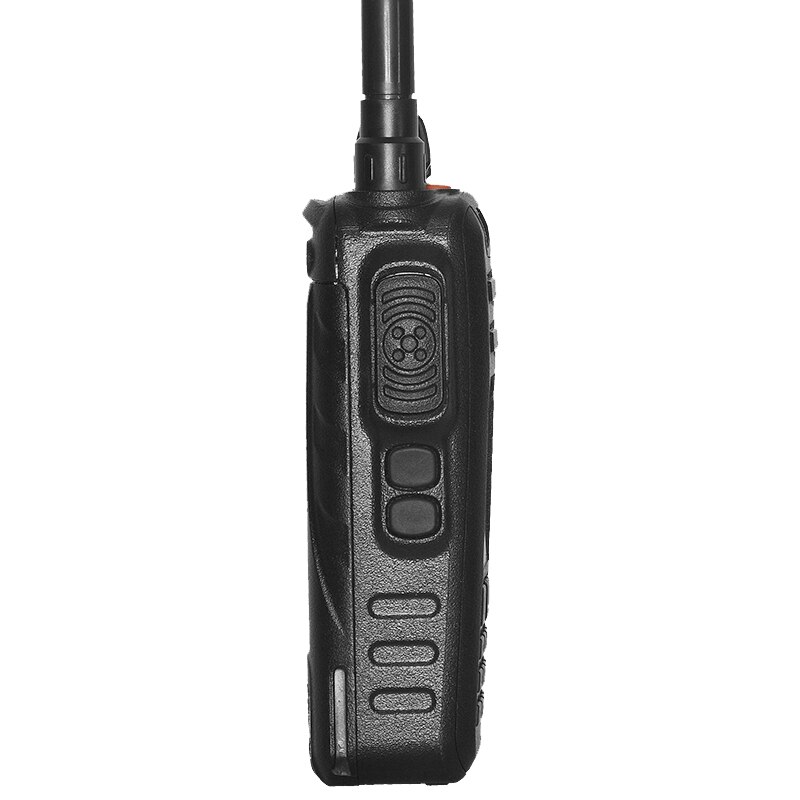

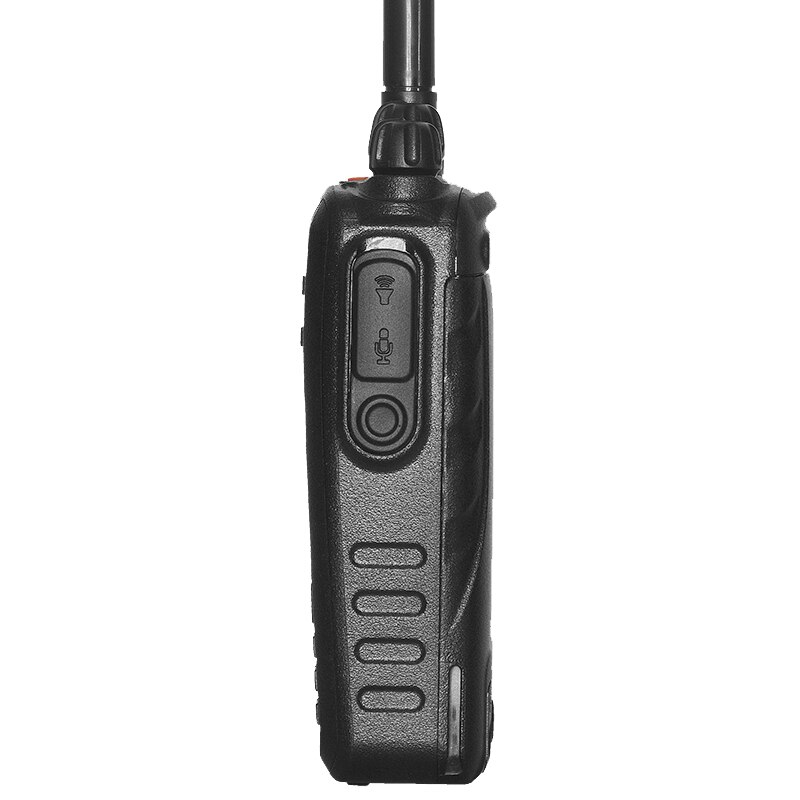

HG-UV78 Ham Transeceiver 10W Dual Band Dual Display Standby 136-174 & 400-470Mhz Bluetooth Radio Communicaiton
Host
MAX 10W Power
Bluetooth 5.0, support Earpiece and headset
USB charging
Dual Band display, Dual Standby
Fast Copy Frequency (within 1 meter )
Features:
- VHF 136-174MHz & UHF 400-470MHz
- DOT-MATRIX LCD display
- A/B band storage and scanning
- FM radio and 24 station memory
- Wide/Middle/Narrow band selectable
- VOX 0-7 grade setting
- Shortcut menu operation mode
- Emergency alert
- ANI Function
- DTMF encoding and decoding
- Multiple types of keys lock setting
- Multi-display mode
- Remote stun/Kill/active
- Dual Band, Dual wait, Dual standby
- 200 Channels
- Battery Saving
- 8 groups of Scrambler
- 1750Hz tone
- 2 Tone/ 5 Tone
- CTCSS/DCS
Specifications:
General |
|
Frequency Range |
136-174MHz & 400-470MHz |
Frequency Stability |
±2.5PPm |
Operating Voltage |
DC7.4V (Rechargeable Li-ion battery) |
Channel Number |
200 |
Antenna |
SMA-Male High gain antenna |
Antenna Impedance |
50 ohm |
Mode of Operation |
Simplex or semi-duplex |
Battery Capacity |
2000mAh |
Receiver |
|
RF Sensitivity |
-122dBm(12dB SINAD) |
Audio power |
>0.5W |
Audio distortion |
<10% |
Blocking |
≥85dB |
Intermediation |
≥55dB |
Selectivity |
≥60dB |
Spurious rejection |
≥65dB |
Transmitter |
|
Output Power |
≤5W |
Modulation Mode |
16KØ F3E/11KØ F3E |
Maximum deviation |
<5KHz/<2.5KHz |
Adjacent Ch.Power |
≤-65dB |
Spurious radiation |
<7µW |
Pre-emphasis characteristics |
6dB |
Current |
≤2.8A(10W) ≤1.4A(5W) |
CTCSS/DCS deviation |
0.55KHz± 0.15KHz, 0.4KHz± 0.1KHz |
Intermediation sensitivity |
8-12mV |
Intermediation distortion |
<5% |
Package Contains:
1× HG-78UV Dual band radio
1× 7.4V 2000mah Li-ion Battery Pack
1× SMA-Female Standard Antenna
1× Battery belt clip
1× Charger
1× ENG Manual
