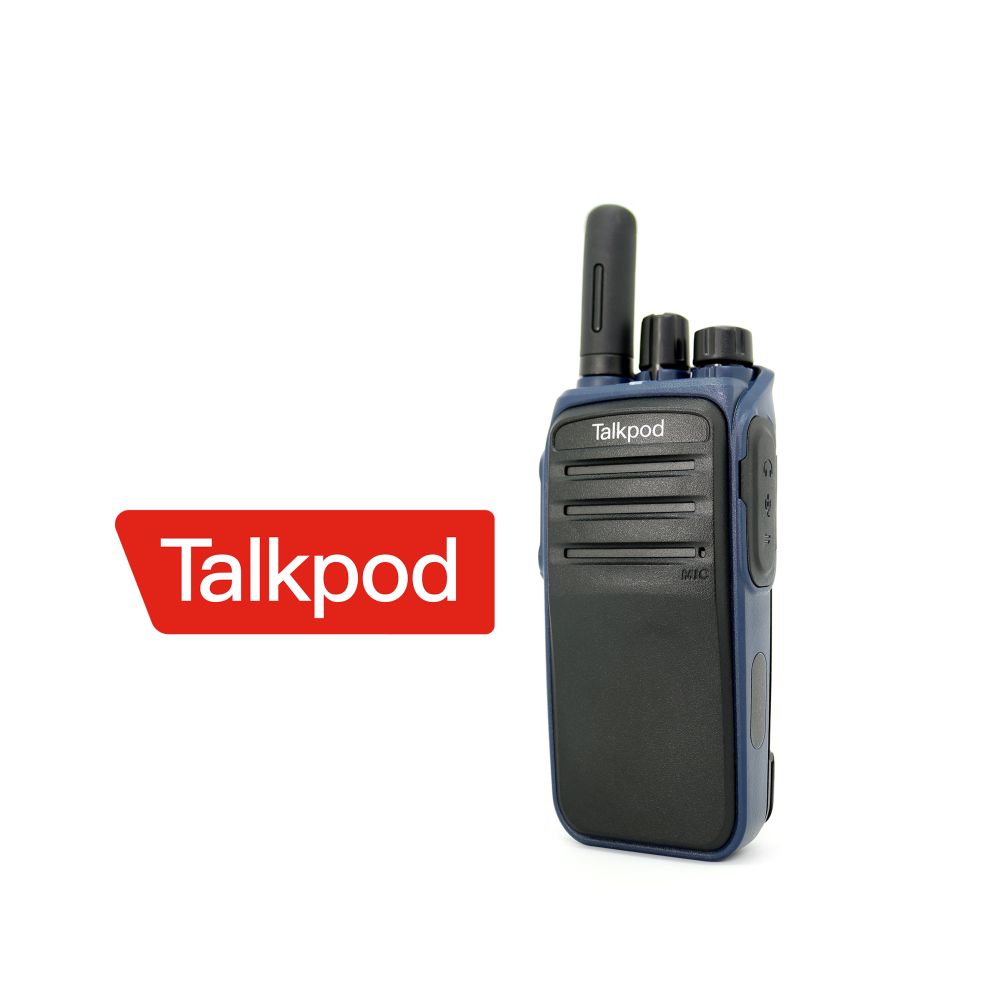

Handheld Network Radio Talkpod N50 WiFi 3G Android Zello Public Walkie Talkie
This Talkpod N50 will ship with Zello pre-installed.
Simple, Slim Styling Design, Smaller, Sleeker, Lighter.
With Auto power-saving mode, Advanced Voice cavity control system and high-power horn, the N50 is IP67 compliant – the highest dust and waterproof standardIt brings you a reliable experience of talking at long distance.Included in the box: Talkpod N50, antenna, battery, belt clip and desktop charger.
GENERAL SPECIFICATIONS | ||
Model Number | Talkpod N50 | |
W3 | W4 | |
Frequency Range | GSM: 900/1800MHz; | GSM: 850/1900MHz; |
WCDMA: 900/2100MHz | WCDMA: 850/1900MHz | |
SIM Card Slot | 1 x Standard SIM | |
Speaker | 36mm loud speaker | |
Microphone | High sensitivity | |
Dimensions (H×W×D) | 115x54x36(mm) | |
Operating System | Android 4.4.2 | |
Chip set | MTK6572M | |
WiFi | 802.11 a/b/g/n | |
Memory | 4GB storage/512MB RAM | |
Applications | Google Play, Push-to-talk APP | |
Bluetooth | 4.0/BLE (Low Energy) | |
GPS | Optional | |
Antenna | High sensitive antenna | |
Languages Supported | English, Chinese, etc… | |
Ports | Kenwood Standard Type | |
Knob | Channel and Volume/On/Off | |
Dedicated Keys | PTT, SOS, Programmable keys | |
Weight | 280g | |
Operating Temperature | -10℃ to 55℃ | |
Storage Temperature | -40℃ to 85℃ | |
Operating Humidity | 5% – 95% RH | |
Water Resistance | IP54 | |
Battery Capacity | 1650/3200mAh Li-Ion Battery | |
Battery Life | Standby: 72 h; Talk: 10 h | |
Certifications | FCC, CE, IC | |
Warranty | 2 Years |
To set up and configure Zello for the Talkpod N50 follow these steps.
Installing the Zello app and configuring an account
Since the device doesn’t have a screen, you’ll need to use a computer to configure it.
- Download an Android remote control application to your computer. For example, Vysor is one such app that works on both Mac and Windows PCs. NOTE: Zello is not affiliated with, or endorsing, Vysor.
- Connect the Talkpod to your computer using a USB cable.
- Use Vysor to configure the device and install Zello from Google Play or the Zello website.
Mapping the push-to-talk button and secondary buttons
- In the Zello app, go to Menu>Options>Push-to-talk buttons.
- Click the “+” icon, then press the PTT button on the side of the device. The Zello PTT button will be added to the list.
- Repeat for additional buttons.
- For each button added to the list, you can edit button details and select a specific channel or contact to key up with when the button is pressed. This is especially useful for secondary buttons. For example, you can have secondary buttons mapped to an emergency channel or contact so they are always accessible.
Mapping Zello channels and contacts to the Talkpod channel knob
The Talkpod radio includes a knob (with no stop or markings) that allows you to switch through channels. To map Zello channels to channel numbers on the Talkpod, do the following from the Zello app:
- Open the “Channels” screen and then click on the channel that you want to map. The talk screen for this channel will display.
- From the talk screen, click on the arrow down icon, then select “Rename channel”.
- Change the channel name to include a two-digit numerical prefix matching the number of the channel on the knob. For example, if you have a channel named “CB Friends” and you want to map it to position #13 of the knob, rename it to “13 CB Friends”. For channels with numbers under 10 use a leading zero (i.e. “01”, “02” etc). You can map up to 99 channels and contacts combined.
- Exit the channel talk screen and then rotate the knob to test your changes. When the channel is selected, its name will be announced using text-to-speech. The channels are switched in their numerical order. For example if you have channels 01, 07 and 13 assigned, rotating the knob will make channels switch in the following order: 01 -> 07 -> 13 -> 01 -> 07, etc.
- Repeat steps 1-4 for all of the channels and contacts that you need to map. However, for contacts, instead of selecting “Channels” in step 1, you would open the “Contacts” screen and then select and rename the contacts you want to map. Be careful to use unique prefixes for different channels and contacts.
Please note that when using ZelloWork channel and usernames, the display names are controlled centrally in the ZelloWork web management console. To ensure the correct order of channels and contacts, make sure to rename them appropriately with the management console.
