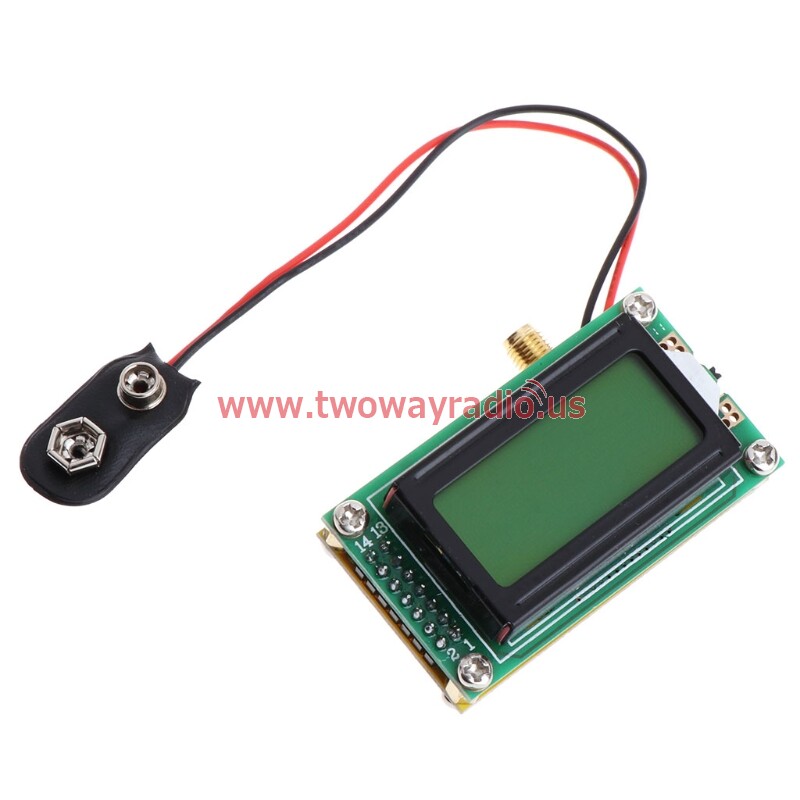

High Accuracy Frequency Counter RF Meter 1~500 MHz Tester Module For ham Radio
Features:
- This frequency counter is widely used for testing frequency with very high accuracy. Wide frequency measurement range: 1~500 MHz, 100Hz resolution. 0802 LCD display with backlight and the backlight color is generally yellow-green.
- Higher reliability and durable quality.
- Wide range: 1~500 MHz, 100Hz resolution.
- 0802 LCD display, low-power consumption.
- Standard interface for easy connections with other tests or antennas.
- Input is via an SMA jack (female).
Specifications:
- Color: Dark Green
- Material: PCB + FR4
- Power Mode: 9V Battery (Not Included)
- Display: 38 * 16mm LCD Display
- Frequency Range: 1~500 MHz, 100Hz resolution

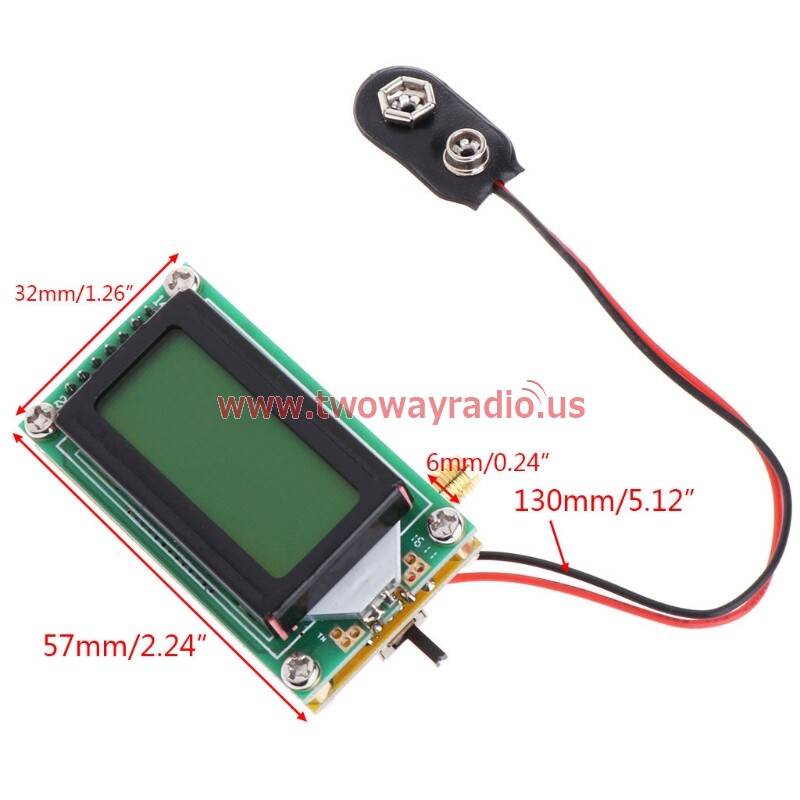

- Item Size: 60 * 33 * 26.5mm / 2.36 * 1.30 * 1.04in
- Item Weight: 45g / 1.54oz
- Package Size: 11 * 6 * 3cm / 5.91 * 4.72 * 1.18in
Note:
- Accuracy can only be adjusted to the second digit of the decimal point, less than one-tenth of the precision
Package include:
- 1 * High Accuracy Frequency Counter
