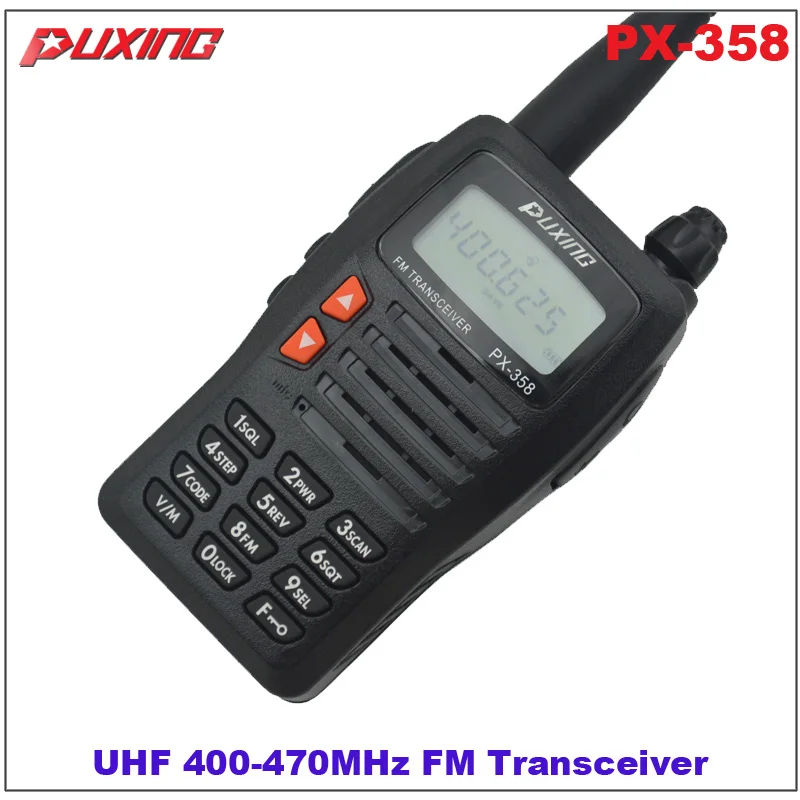

Walkie Talkie Puxing PX-358 UHF 400-470MHz Portable Two-way Radio Handheld FM Transceiver
Features:
1.Battery low power alert
2.battery save/auto power-off timer (1-15H)
3.Busy channel lockout
4.All keys lock
5.PTT lock
6.Frequency input by keypad
7.power adjust by software
8.Memory Channel(MR) and frequency(VFO) mode switchable
9.built-in FM radio receiver
10.VOX/VOX delay time/VOX sensitivity level adjustable
11.8 groups of Scrambler (option)
12.Channel bank store
13.Real-time DC voltage display
14.Backlight working time control
15.Open message edit/password protection
16.Alpha-Numeric channel name
17.Repeater offset
Specifications:
General |
|
Frequency Range | UHF:400-470MHz |
Channel | 128 |
Channel Spacing | 25 /12.5KHz |
Operating Voltage | 7.4V |
Antenna Impedance | 50Ω |
Operating Temperature | -25°c ~+65 °c |
Frequency Stability | ±2.5ppm |
Transmitter |
|
Output Power | 5W |
Modulation | 16KΦF3E/11KΦF3E |
Maximum Deviation | ≤5.0KHz(W) |
Stray Power | ≤7.5μW |
Modulation Distortion | ≤10% |
Receiver |
|
Sensitivity | ≤0.25/0.28μV |
Adjacent Channel Selectivity | 70/50dB |
Intermodulation | 60dB |
Spurious Response Rejection | 70dB |
S/N | 43/38dB |
Rated Audio Power Output | ≤0.5W |
Rated Audio Distortion | ≤5% |
Each Set Package Contain:
1Ă— PX-358 UHF Radio
1Ă— 1200mAh Li-ion Battery Pack
1Ă— Charger UnitÂ
1Ă— AntennaÂ
1Ă— Hand Strap
1Ă— Belt ClipÂ
1Ă— User ManualÂ
