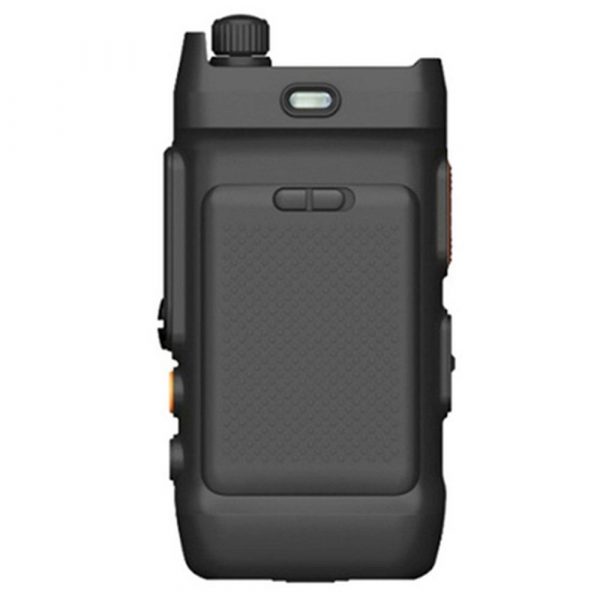

Estalky E550 PoC Radio Zello Real PTT Network Radio Smart POC Radio with IP67 MIL-810G Standard
Estalky E550 is a compact, easy-to-operate LTE handheld radio. Thanks to PTT over Cellular (PoC), it enables fast voice communication and data transmission as well as a nearly limitless connection over LTE mobile radio networks (4G) & WiFi. The innovative two-way radio is the ideal solution platform for a wide range of broadband applications, such as optimizing operating sequences, and combines all the advantages of professional mobile radio with greater radio coverage and better audio quality.
E550 with a long-lasting battery and excellent Push-To-Talk performance, Android 5.1 OS system entry level terminal to guarantee an intuitive display with an OLED 0.97′ Screen readable from multiple angles
4G NON SCREEN DEVICE WITH UNIQUED DESIGNED,DURABLE AND HANDY
E550 with a long-lasting battery and excellent Push-To-Talk performance, Android OS system entry level terminal guarantee an intuitive display with an OLED 0.97′ Screen readable from multiple angles.
Delicted PTT Button and SOS Button, make your working and communication easy and flexible.
Intuitive display with an OLED 0.97′ Screen readable from multiple angles. A durable LTE handheld to keep the instant communication between your organizations.
RADIO DESIGNED M6 CONNECTOR
The M6 Connector is used to connect with different accessories like Wired headset, RSM Speaker, D-shape headset etc., widely deployed on different communication fields like safety, public security, oil and gas etc.,
It embodied on a powerful and removable 3600mAh long-life battery, to enable the user communicate with each other continuously, also attached the NFC module to enrich its performance.
Flexible buckle designed, easy to remove the battery and protect it.
Feature | Technical Description |
1、HW SPEC | |
1.1 Main CPU & SW | |
CPU | MTK6737M |
Android | Android 5.1 OS System |
Language | Multi Language |
1.2 Memory | |
RAM+ROM | 1GB +8GB (up to 32GB) |
SD Card | 32GB |
1.3 LCD | |
LCD | OLED 0.97′ |
LCD resolution | 128×64 RGB |
LCD Colors | 16M Color IPS TFT |
1.4 Touch | |
Touch type & size | None |
Glass | Coning generation 3 |
Multi-touch | None |
1.5 Sensor | |
Sensor | 3D Sersor/G-Sersor/ Acceleration Sensor |
1.6 Frequency/Bands | |
Network
( GSM, WCDMA, FDD, TDD) |
EU band: GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 TD-SCDMA: B39/B34 FDD-LTE: B1 / B3 / B7 / B8 / B20 / B28 (a&b) TDD-LTE: B38 / B39 / B40 / B41 US band: GSM: B2/B5 WCDMA: B1/B2/B4/B5/B19 FDD-LTE: B1 / B2 / B4 / B5 / B7 / B12 / B13 / B17 / B19 / B28 ( a&b ) |
1.7 Camera | |
Front & Rear Camera | None |
1.8 Wi-Fi | |
IEEE802.11a | Yes (5G) |
IEEE802.11b | Yes(2.4G) |
IEEE802.11g | Yes(2.4G) |
IEEE802.11n | Yes(2.4G&5G) |
WIFI anternna Type | Wi-Fi & BT Coexistence Internal antenna |
1.9 Bluetooth | |
Version | BT V4.0 with BLE / BT2.1 + EDR (Enhanced Data Rate) |
Power Level | (Max) Class 2 |
Operation distance | (Max) 10 meter |
2.0 GPS & A-GPS | |
GLONASS Support | None |
GPS Support | Yes |
AGPS Support | Yes |
Antenna Type | Internal antenna |
2.1 Speaker & MIC | |
Output | Φ36mm,2.0W |
SPL | 98dB |
Receiver | 1506 |
MIC Type | Single Pole Mic |
MIC Sensitivity | -42dB±3 |
SIM card | One Micro-SIM card |
Vibrator | None |
2.2 USB | |
USB type | Micro USB |
USB | Micro USB2.0 |
USB | OTG |
Cable length | 1.0m |
2.3 Earjack Interface Type | M6 Connector |
2.4 Indicator LED | 3-colors(Red, Green, Blue) |
3、MD | |
3.1 Size | |
Height ( H * W * D ) | 117*60*29.2mm |
Weight | 182g |
IP code | IP67 |
Drop Test | 1.5m |
3.2 Key buttons | |
keys button | PTT Key / Volume UP / Down Key / Function Key / SOS Key / Power Key |
4、 Battery | |
Battery type | Li-Po |
Battery capacity | 3600 mAh |
Removable battery | Yes |
5, Charge&Date Interfaces | |
5.1 Charging | |
Micro USB ( For Handset ) | Yes |
Battery charging terminal(For Cradle) | Cradle charging |
5.2 Cradle Spec | |
Input voltage | DC 5V/2.0A |
Output voltage | DC 5V/2.0A |
Interface Type | Micro USB |
5.3 Phone Adaptor Spec | |
Input voltage | AC 100-240V, 50 / 60Hz, 0.3A |
Output voltage | DC 5V / 2.0A |
Interface Type | Standard USB |
6、 Environmental Conditions | |
Operating Temperature | -20℃ ~ 60℃ |
Storage Temperature | -30℃ ~ 70℃ |
Humidity | 20% ~ 90% |
ESD | Contact: ±8KV Air: ±12KV |
ROHS 6 Compliant | Yes |
7、 Certification and safety spec | |
Europe | CE |
American | FCC |
0.97′ OLED SCREEN
FLEXIBLE BUCKLE DESIGNED, POWERFUL BATTERY
Package Contain:
1 x E550 Zello & Real PTT Phone
1 x Charger Power
1 x Belt Clip
1 x Data Cable
1 x Manual
