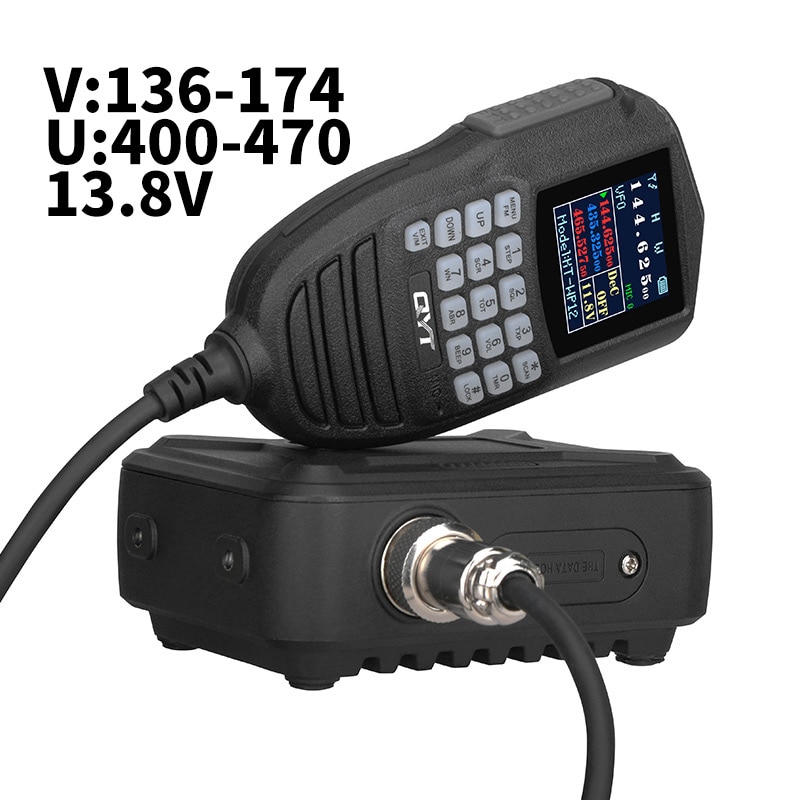

QYT KT-WP12 Mini Mobile Radio 25W VHF/20W UHF Dual Band VOX Hand Microphone Display & Control Scrambler Car ham Radio Transceiver
Features:
-Mini Size with Dimensions of Radio Body 98(W)*35(H)*118(D)mm
-Smaller than your palm
-450g only, really Light Weight
-Powered by car battery bank directly with 12V Car Cigarette Light Power cable
-Hand microphone working platform, display and operation on the remote microphone
– Color display on the microphone working platform
-25W Output power for VHF band, 20W output power for UHF band
– dual band mobile radio with 200 memory channels
-Scrambler function
-VOX function
– 5tone,2tone,DTMF codes
-PC programming
Specifications:
|
General |
||
|
Frequency Range |
Dual band VHF 136-174MHz & UHF |
|
|
Number of Channels |
200 |
|
|
Channel Spacing |
12.5/20/25KHz |
|
|
Phase-locked stepping |
5/6.25/10/12.5/15/25KHz |
|
|
Operating voltage |
13.8V DC±15% |
|
|
Squelch Method |
CTCSS/DCS/5Tone/2Tone/DTMF |
|
|
Frequency stabilization |
±2.5ppm |
|
|
Operating temperature |
-20~+60°c |
|
|
Dimensions |
98(W)*35(H)*118(D)mm |
|
|
Net Weight |
408g |
|
|
Receiver |
||
| Â |
Wide Band |
Narrow Band |
|
Sensitivity (12dB SINAD) |
≤0.25uV |
≤0.35uV |
|
Adjacent Channel Selectivity |
≥70dB |
≥60dB |
|
Intermodulation |
≥65dB |
≥60dB |
|
False Signal Response |
≥70dB |
≥70dB |
|
Audio response |
+1~-3dB(0.3~3KHz) |
+1~-3dB(0.3~2.55KHz) |
|
SNR |
≥45dB |
≥40dB |
|
Audio distortion |
≤5% |
|
|
Audio output power |
≥2W ±10% |
|
|
Transmitter |
||
| Â |
Wide Band |
Narrow Band |
|
Output Power |
25W(VHF)/20w (UHF) |
|
|
Modulation |
16KΦF3E |
11KΦF3E |
|
Adjacent channel power |
≥70dB |
≥60dB |
|
SNR |
≥40dB |
≥36dB |
|
Parasitic and harmonic |
≥60dB |
≥60dB |
|
Audio Response |
+1~-3dB(0.3~3KHz) |
+1~-3dB(0.3~2.55KHz) |
|
Audio Distortion |
≤5% |
|
Note: All specifications are subject to change without prior notice.
Package Contents:
1 × KT-WP12 Mobile Radio
1 × Hand Microphone
1 × Microphone Clip
1 × Fix Bracket
1 × Screw Set
1 ×12V Power Cable
1 × Fuse
1 × User’s Manual
