BaoFeng UV-3R Mark II 136-174/400-470MHZ Dual Band Dual Frequency Display Two-Way Radio CB ham radio

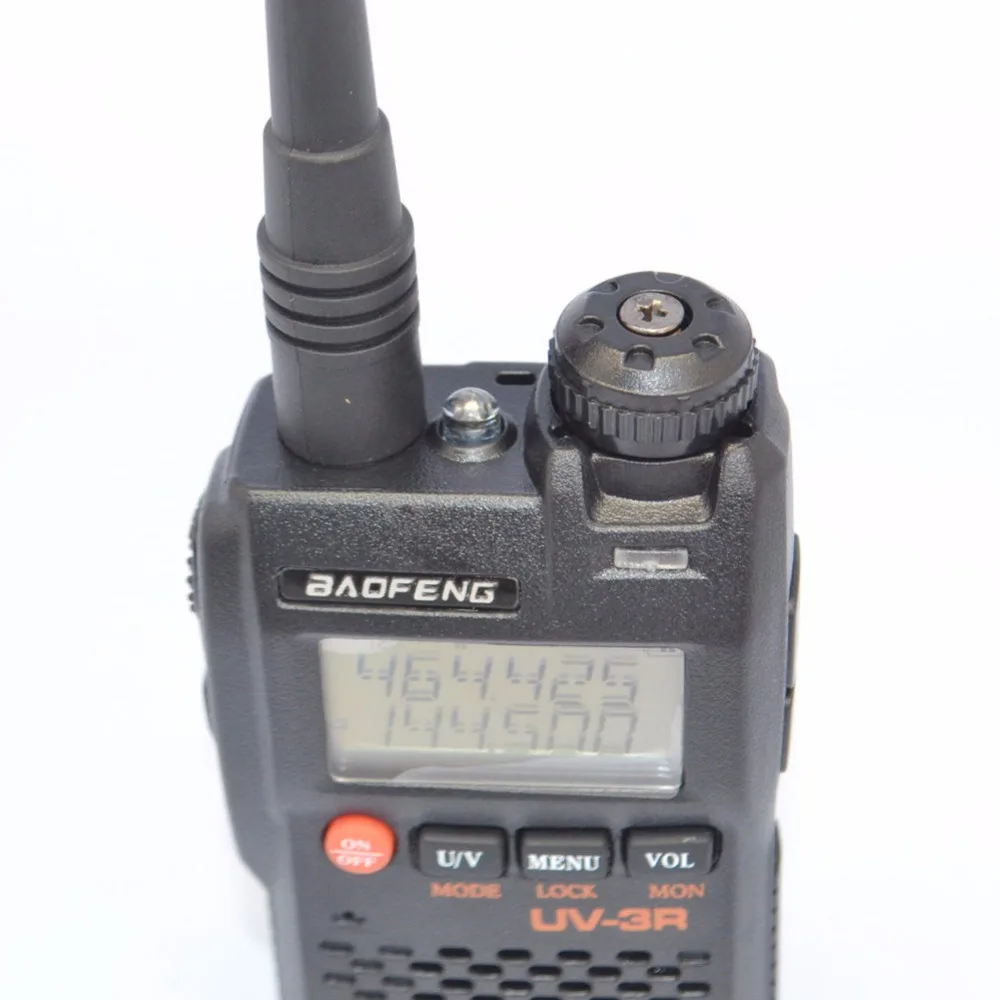

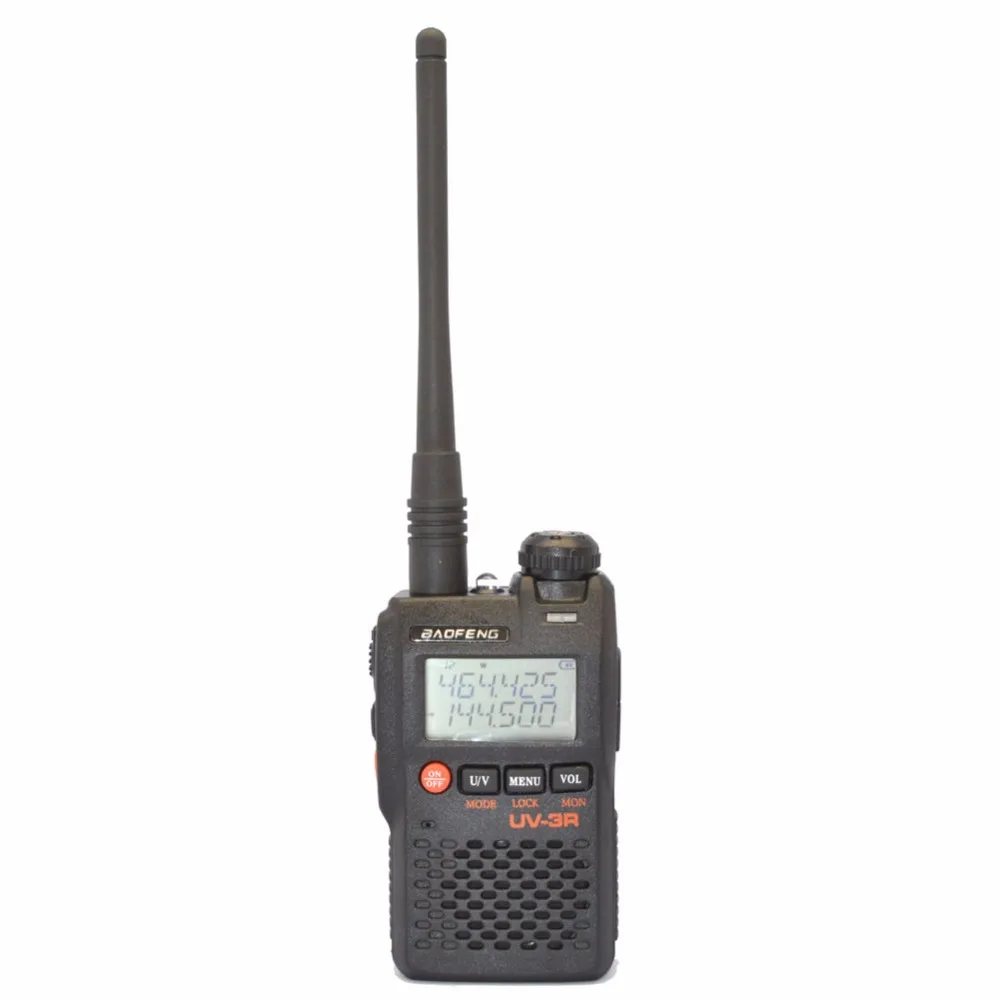

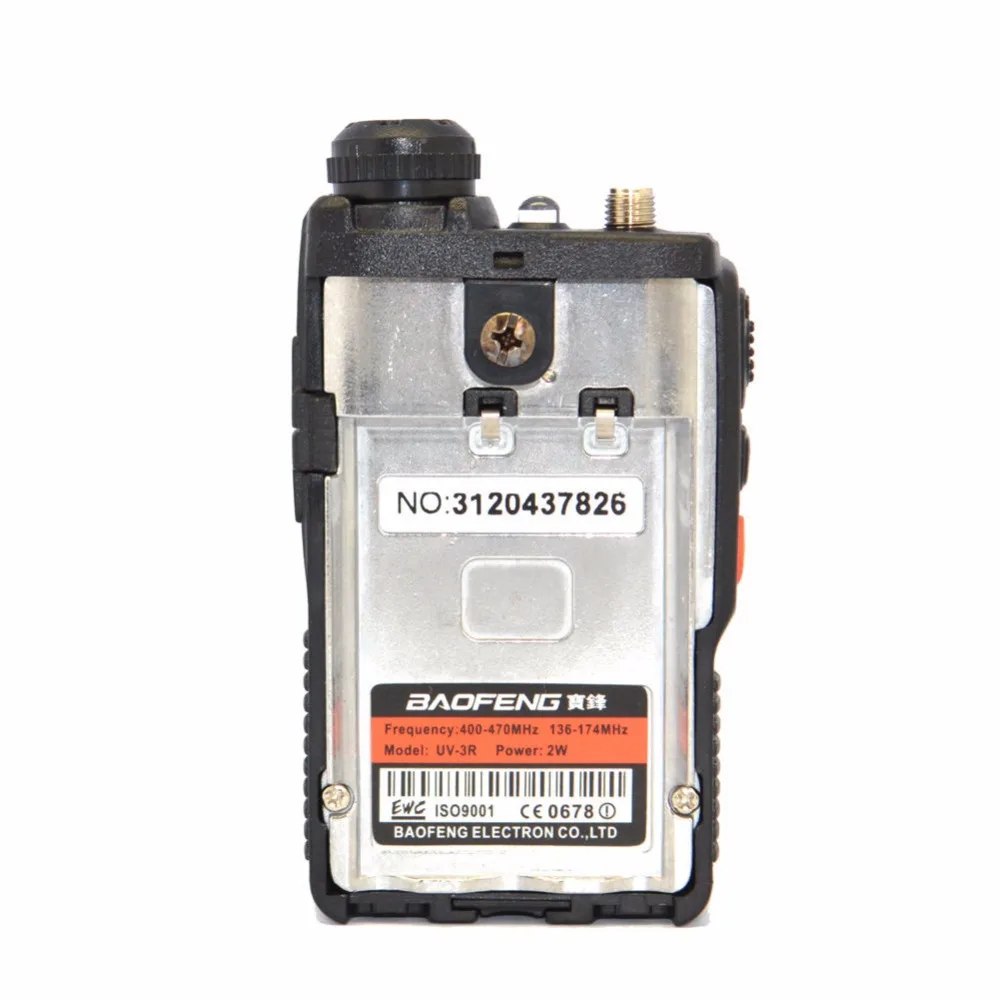

BaoFeng UV-3R Mark II
Main features:
. Frequency Range: 136-174/ 400-470MHz
. Dual-Band Display, Dual Freq. Display, Dual-Standby
. Output Power: 3 Watts
. 99 Channels+1 Emergency Channel
. 50 CTCSS and 104 CDCSS
. Built-in VOX Function
. 1750Hz Brust Tone
. FM Radio (87.0MHz-108.0MHz)
. LED Flashlight
. Hight /Low Power Switchable
. 25KHz/12.5KHz Switchable
. Emergency Alert
. Low Battery Alert
. Battery Saver
. Time-out Timer
. Keypad Lock
. Monitor Channel
. Channel Step: 5/6.25/12.5/25KHz
Specifications:
GENERAL
Frequency Range
136-174MHz&400470MHz
Channel Capacity
99 Channels 1 Emergency Channel
Channel Spacing
56.25/12.5/25KHz
Operated Voltage
3.8V
Standard Battery
1200mAh
Battery Life
10 hours
Frequency Stability
2.5ppm(-20 Âş C ~+60 Âş C )
Operated Temperature
-30 Âş C ~+60 Âş C
Antenna Impedance
50
Dimensions
47*81*23mm
Weight
About130g
TRANSMITTER
RF Power Output
2W 0.5W
Modulation
F3E
Spurious Emission
65dB
FM Noise
45dB(N)/42dB(W)
Audio Dsitortion
0.05
Adjacent Channel Power
60dB
Max Frequency Deviation
2.5KHz (N)/5.0KHz (W)
Frequency Error
500Hz
Modulation Distortion
0.1KHz (300-3000KHz)
Transmitting Current
1.4A
RECEIVER
Sensitivity (12dB SINAD)
0.2uV
Squelch Selectivity
0.15uV
Adjacent Channel Selectivity
65dB
Background Noise
50mV
Spurious Response Rejection
-60dB
FM Ham & Noise
48dBN48dBW)
Audio Power Output 8
1.7V
Audio Distortion
10%
Receiver Current
400mA

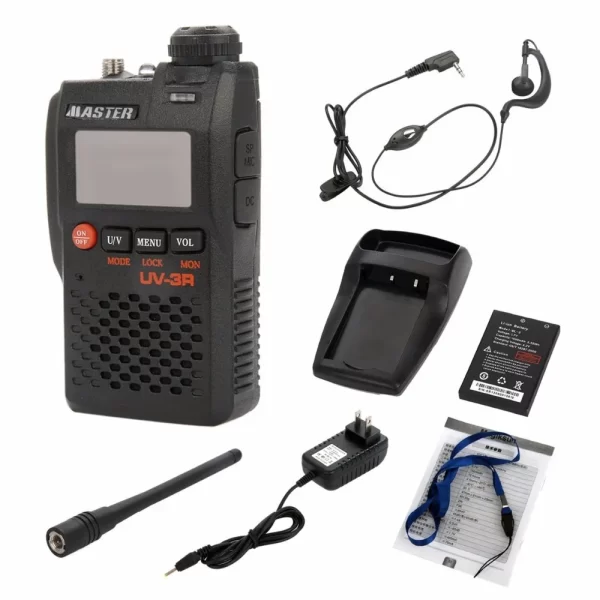

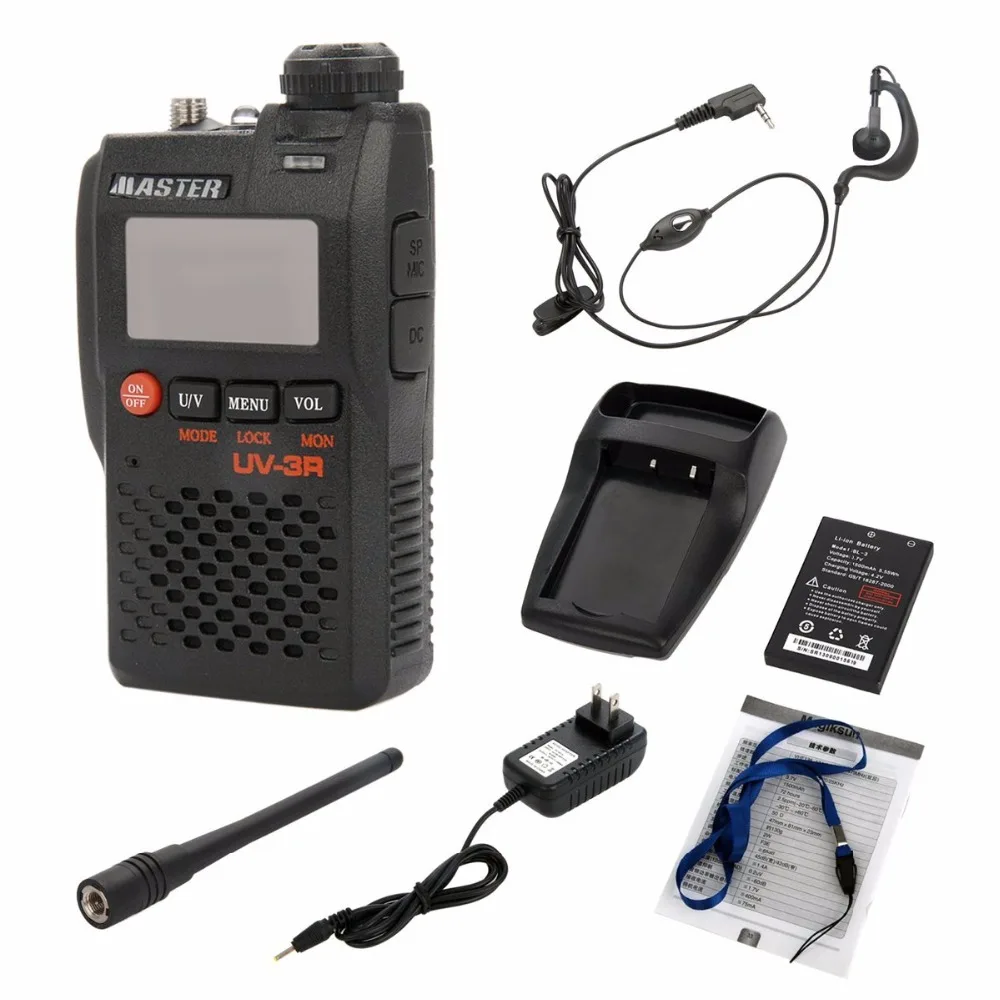

Full set including:
1*UV-3R II

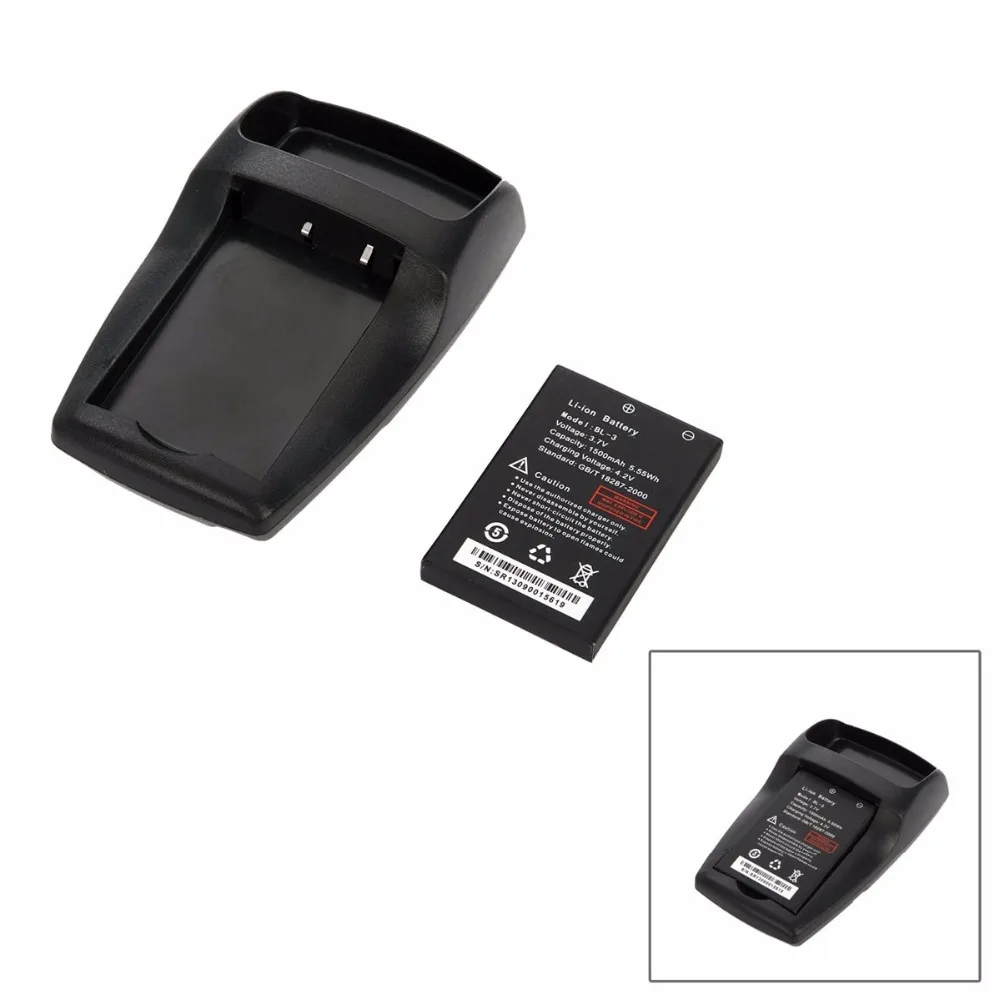

1*Rechargeable battery
1*Detachable antenna

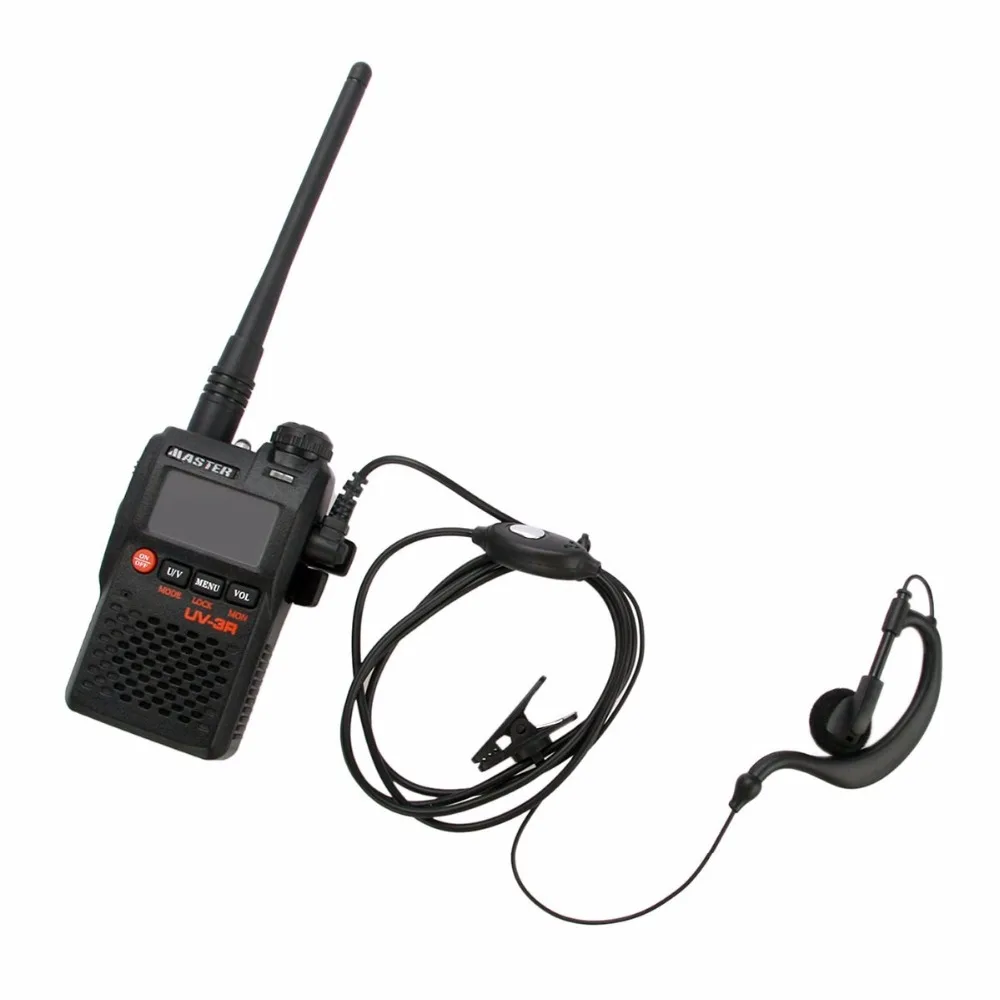

1*Earphone
1*Desk charger
1*Blet clip
1*Strap
1*User manual book
1*free PPT earpiece
