Baofeng UV-29 Pro Max Walkie Talkie
Three Bands
Three Bands
Wireless Frequency Copy-1.77 inch LCD
High Capacity FM Two Way Ham Radio 999CH Wirless Copy Frequency NOAA
Main Features
. 1.77″ large screen,full keyboard,fully open menu operation
• Scanner function:VFO scan range setting,three scan recovery methods,channel scan,CTC/DCS scan,scan channel addition and removal
• Built-in input method,allows this device to edit channel name
• Frequency step,selectable between 2.5K|5.0K|6.25K|10.0K| 12.5K| 20.0K| 25.0K| 50.0K
• Four-band handheld transceiver
FM:65-108mhz
VHF:136-174MHZ
VHF:220-260MHZ
UHF:400-520MHZ
• DTMF encoder and DTMF manual dial
• High Capacity Li-ion battery
• Broadcast FM radio receiver 65-108 MHz
• 50 CTCSS tones and 105 DCS codes
• VOX (voice activated transmit)
• 10 zones storage,Up to 999 named memory channels
• Alarm function
• High or low power selectable
• Display illumination programmable via keypad
• Function beep on the keyboard
• Dual watch/Dual reception
• Programmable repeater offset
• Battery saving function
• Transmission time-out timer
• Scan mode
• Busy channel lock out
• Built in CTCSS/DCS tones
• PC programmable
• Ten (10) levels of Squelch adjustment
• Cross band reception
• End of transmission tone, aka “Roger Beep”
• ANI
• Keypad lock
• Two (2) pins for Kenwood accessory port

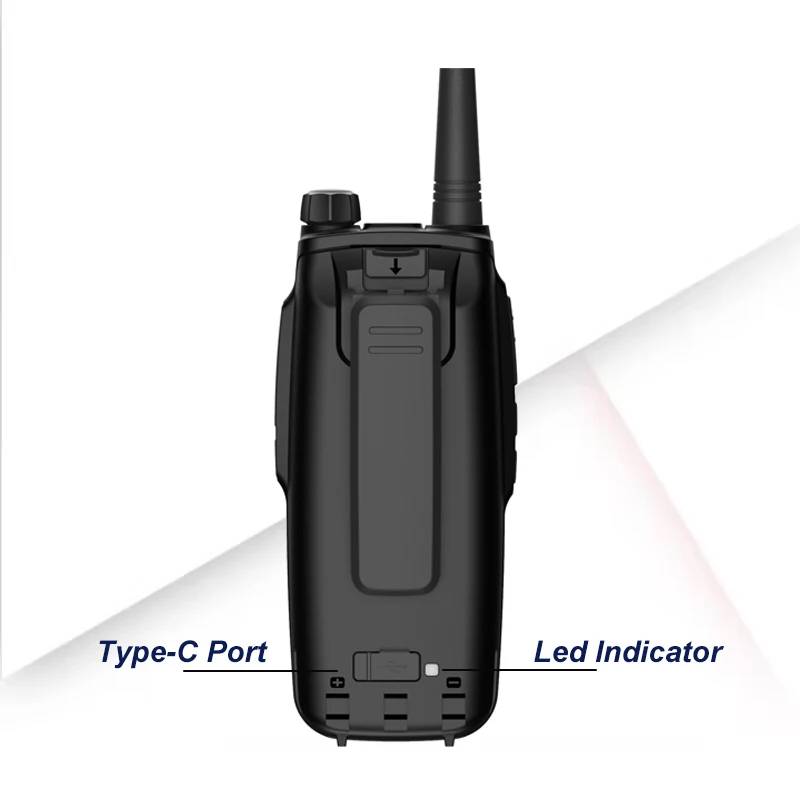

• Desktop charging or Type-c Charging
Note: All specification shown are subject to change without notice. |
General
Channel Capacity: 999
Channel Spacing: 25.0KHz/12.5KHz
Input Voltage: 7.4 V
Battery Life: About 15 hours
Frequency Stability: ±2.5ppm
Operated Temperature: -10°c-+60°c
Antenna Impedance: 50Ω
Weight (with battery/antenna): 298g
Receiver
Sensitivity : -120dBm
Intermodulation and Rejection: ≥62dBm
Adjacent Channel Selectivity: ≥65dBm
FM Noise: 45dB/40dB
Audio Power Output: 1000mW
Audio Distortion: ≤5%
Transmitter
RF Power Output: <5W
Modulation: 16K0F3E@25KHZ /11K0F3E@12.5KHZ
Spurious Emission: -16dBm<1GHZ,16dBm>1GHZ
FM Noise: -40dB
Audio Distortion: ≤5%

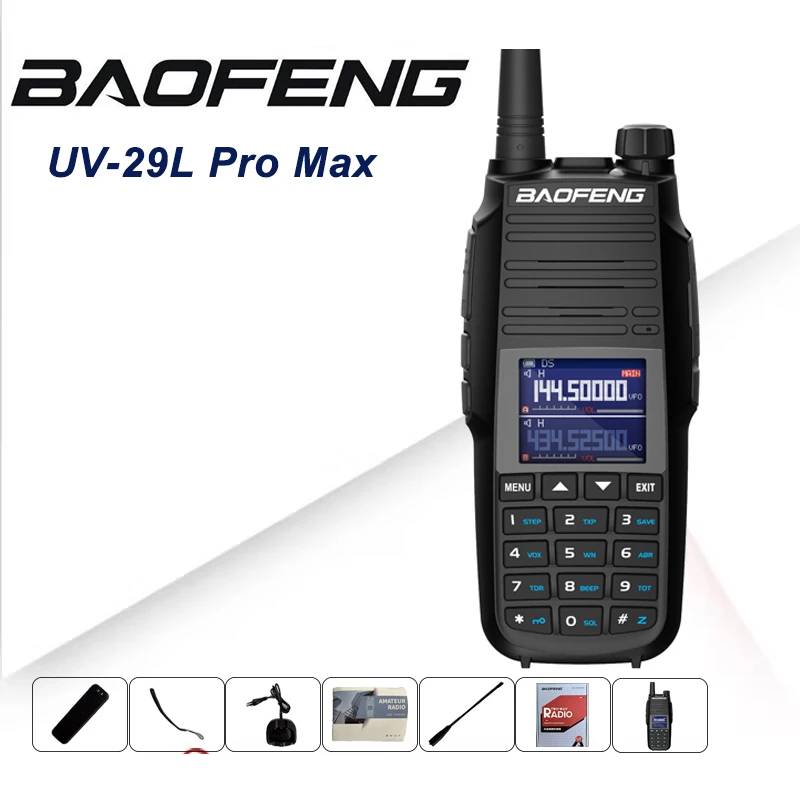

Package Included:
1 x Radio
1 x Battery
1 x Antenna
1 x Charger
1 x Belt Clip
1 x Strap
1 x User Manual
