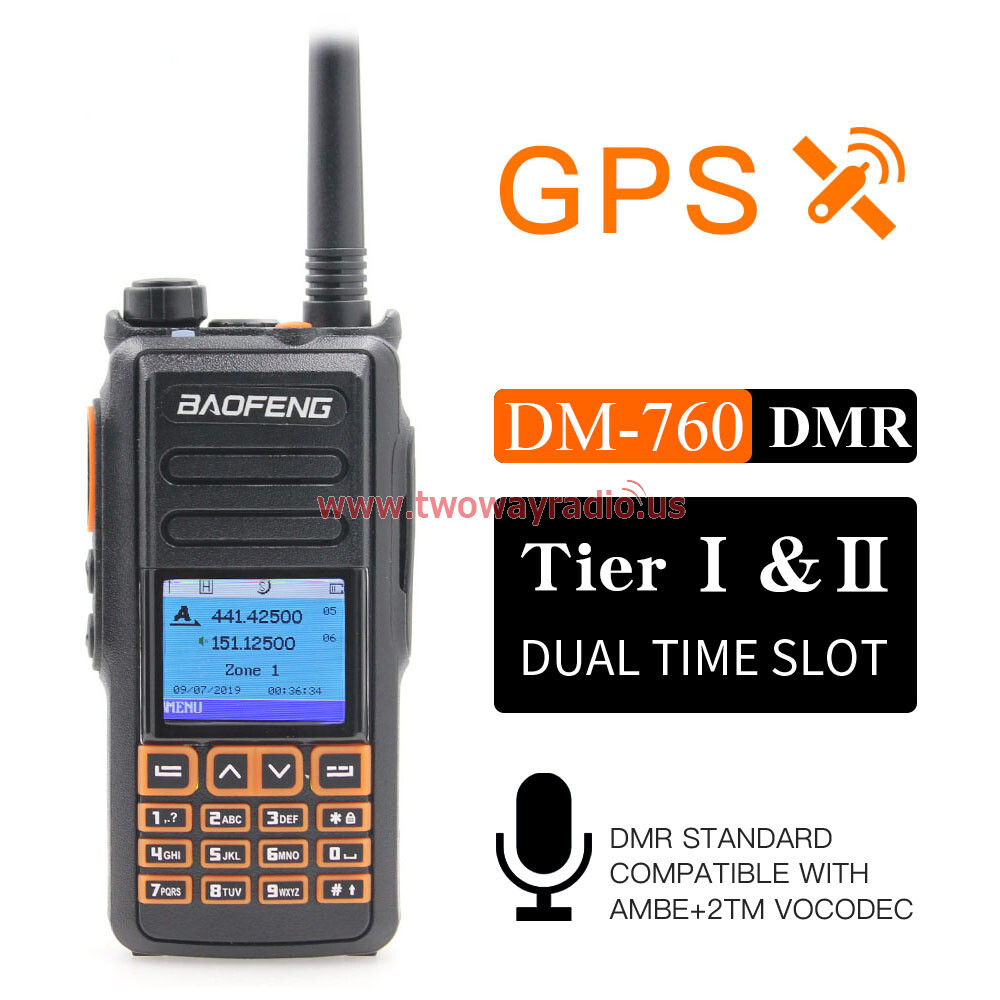

New BaoFeng DM-760 With GPS function Dual Band 136-174&400-470mhz DMR Digital Radio Tier 1&2 Dual Time Slot Walkie Talkie

$89.00

& Free Shipping

Out of stock

Guaranteed Safe Checkout
Sold By: Two Way Radio

New BaoFeng DM-760 With GPS function Dual Band 136-174&400-470mhz DMR Digital Radio Tier 1&2 Dual Time Slot Walkie Talkie

Main Features:

1. Support Tier 1&2  Dual Time Slot

2. DMR standard compable with AMBE+2TM VOCODEC

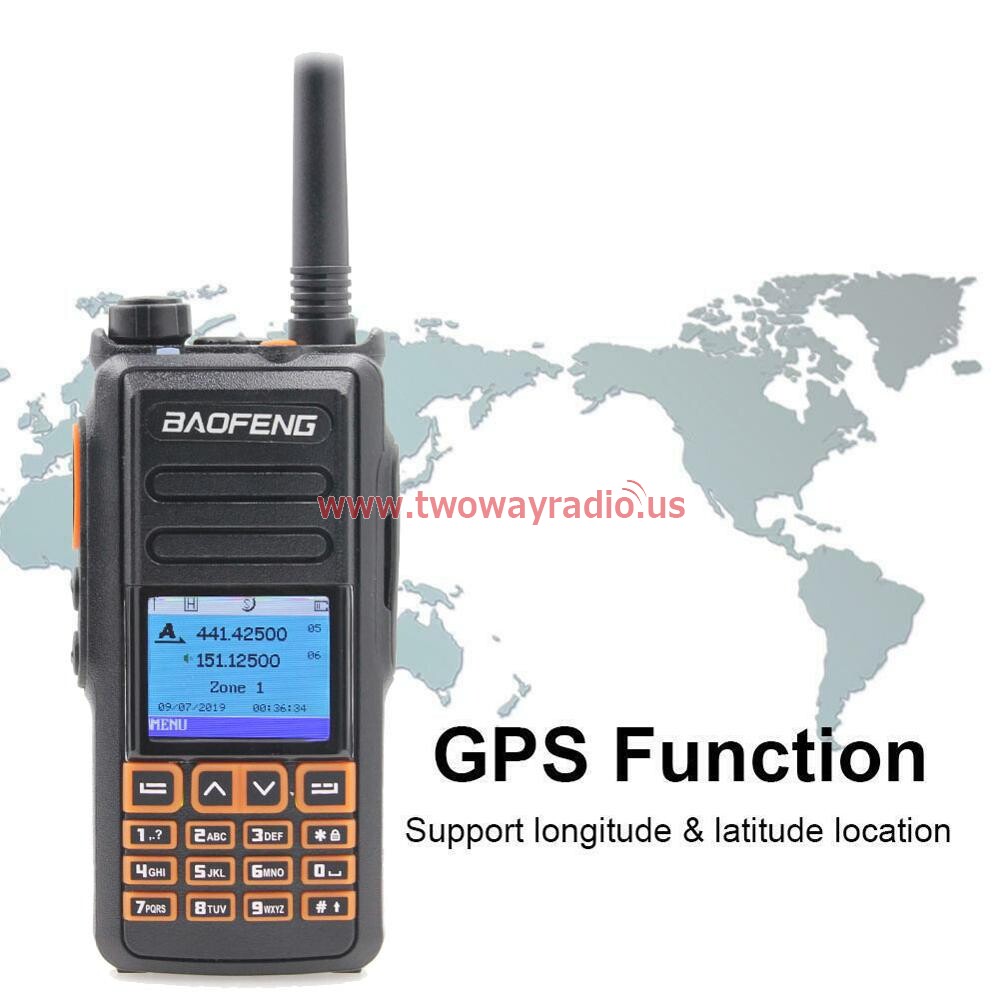

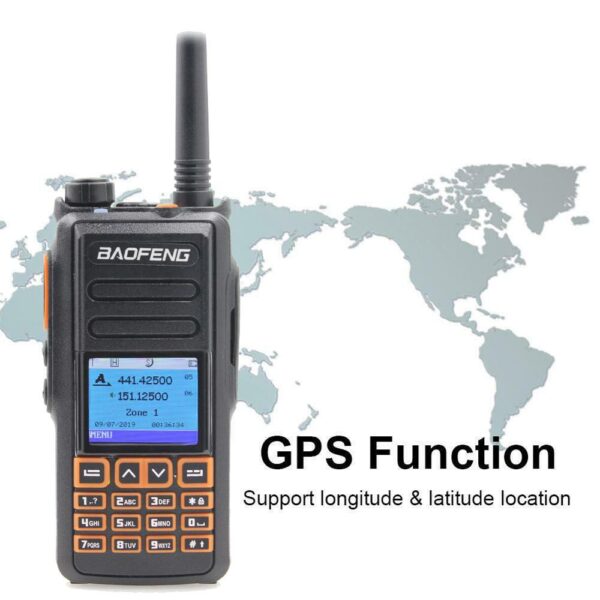

3. GPS Function: Support  longitude & latitude position.

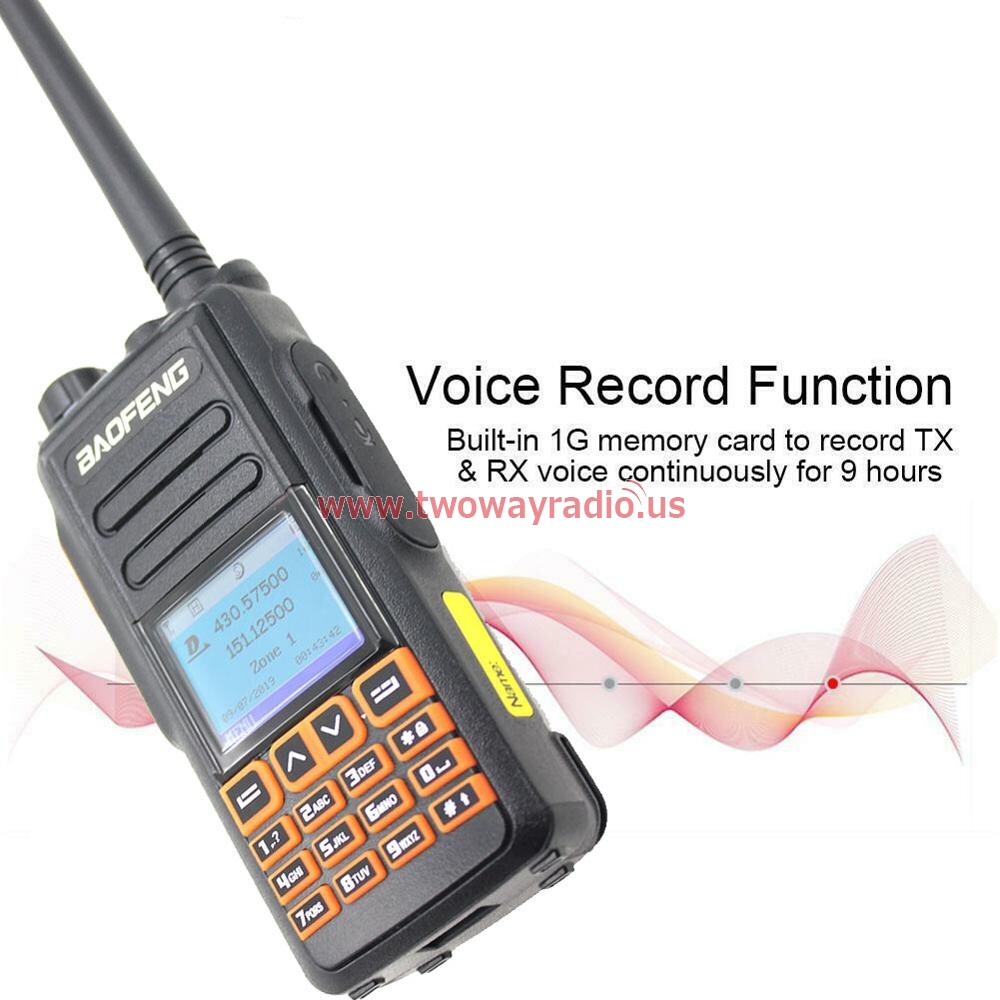

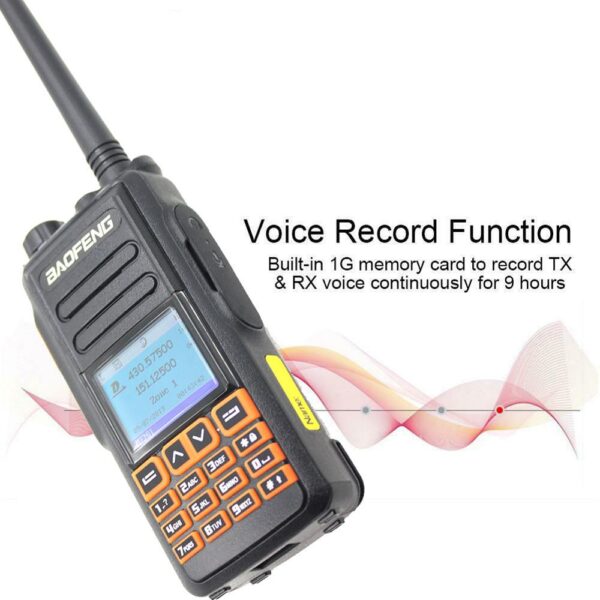

4. Voice Record function: Built-in 1G memory card to record TX & RX voice continuously for 9 hours

5. Larger keyboard buttonthandm-860 dm-5r dm-1701 dm-1702,so that you can Easy to operate by your finger.

6. Larger full-Color Led Screen

7. Dual Band VHF 137-174MHz & UHF 400-470MHz

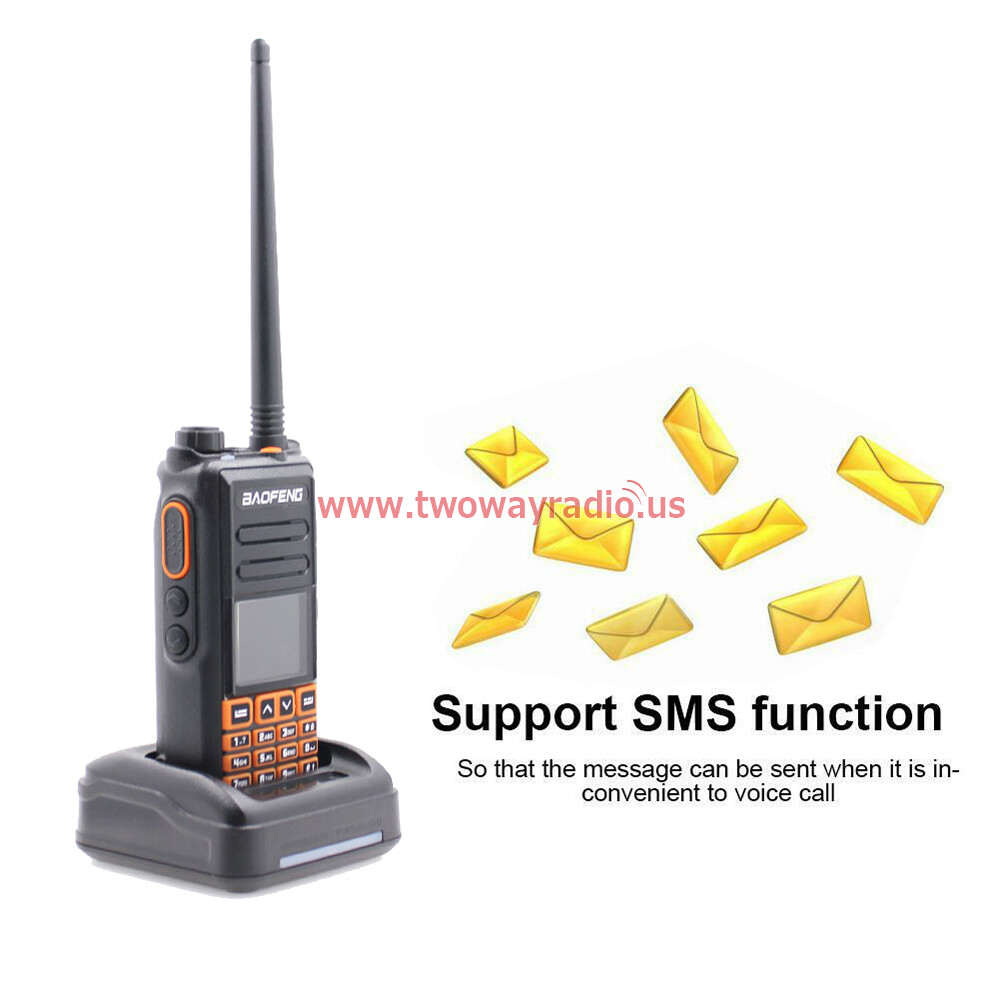

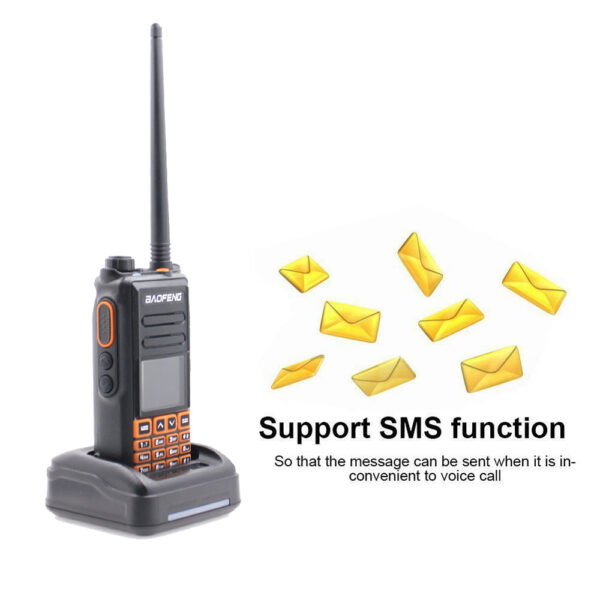

8. SMS fuction

Supports SMS ,text editing and draft in 64 characters in englsih,so that the text message calls can be sent when voice call is inconvenient.

9. Manual writing -frequency

10. High/Low power mode

11. Larger Capacity Li-ion Battery Equipped with a 2200mAh Li-ion battery



Specifications:

General

Frequency Range

VHF:136-174MHz, UHF:400-470MHz (Dual Band)

Memory Channel

1024

Operating Voltage

DC 7.4V

Frequency stability

±1.0ppm

Demission

136*62*36mm (no including the antenna)

Operating environment

-30℃-+60℃

Weight

Approach.274g(including the battery and antenna)

Transmitter

Output power

High:5W Low:1W

Adjacent channel power

≤65dB ≤60dB

Output consumption

Analog≤1.6A Digital≤0.9A

Audio response

+1~3dB

Standby current consumption

≤0.18A

Digital Protocol

ETSI-TS102 361-1,-2,-3

Modulation distortion

≤5%

Vocoder type

AMBE+2 TM

FM/FM modulation:

16K¢F3E,25KHz 141K¢F3E,20KHz 11K¢F3E,12.5KHz

4FSK/4FSK digital modulation

12.5KHz for data:7K60FXD 12.5KHz for data and voice:7K60FXE

Signal-to-noise(wide/narrow)

≥45dB,25KHz  ≥40dB,12.5KHz

Antenna Port Spurious

9KHz-1GHz  ≤-36dBm  1GHz-12.75GHz:  ≤-30dBm

Receiver

Analog receive sensitivity

-122dBm (12dB SINAD)

Digital receive sensitivity

-122dBm (BER≤5%)

Audio power

1W

Audio distortion

<10%

Signal imitation

≥70dB

Audio response

+1~3dB

Receive current

≤380mA

Intermediation(wide/narrow)

≥62dB/≥58dB

Adjacent channel selectivity

≥65dB/≥60dB

PM noise

≥45dB,25KHz / ≥40dB,12.5KHz

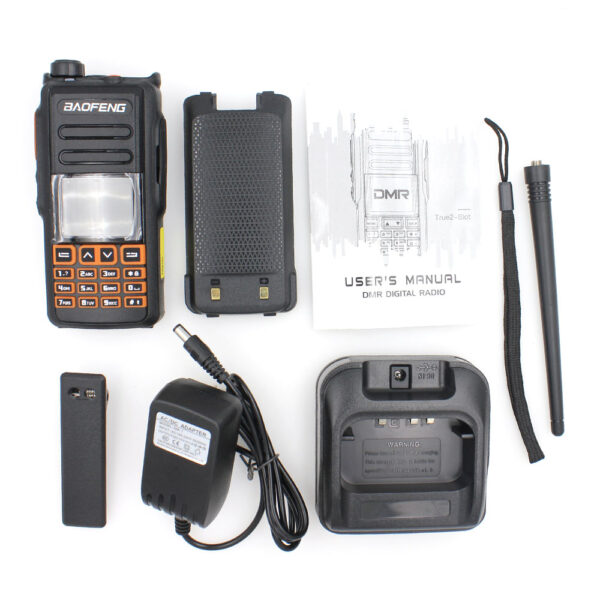

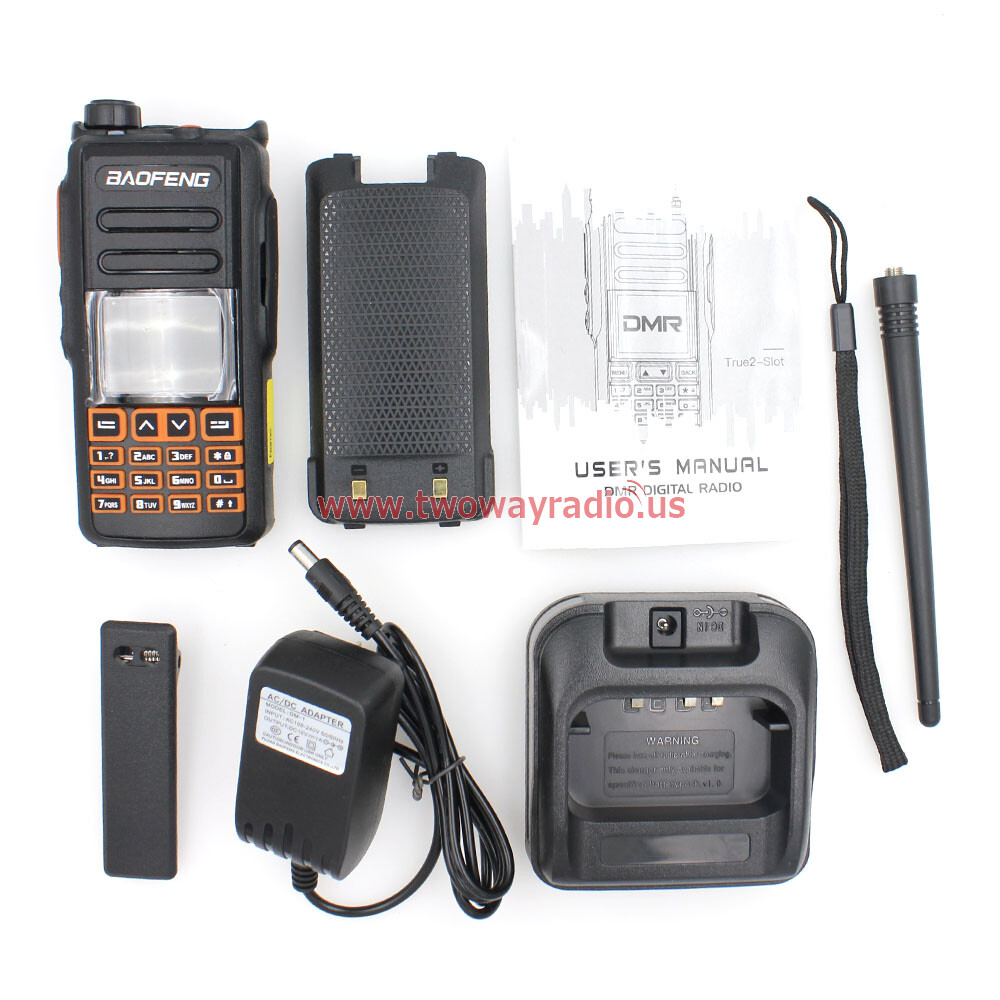

Package Contain:

1× BaoFeng DM-760

1× 2200mAh Li-ion Battery Pack

1× Charger Unit with AC Adapter

1× Antenna

1× Hand Strap

1× Belt Clip

1× Earpiece

1× User Manual
