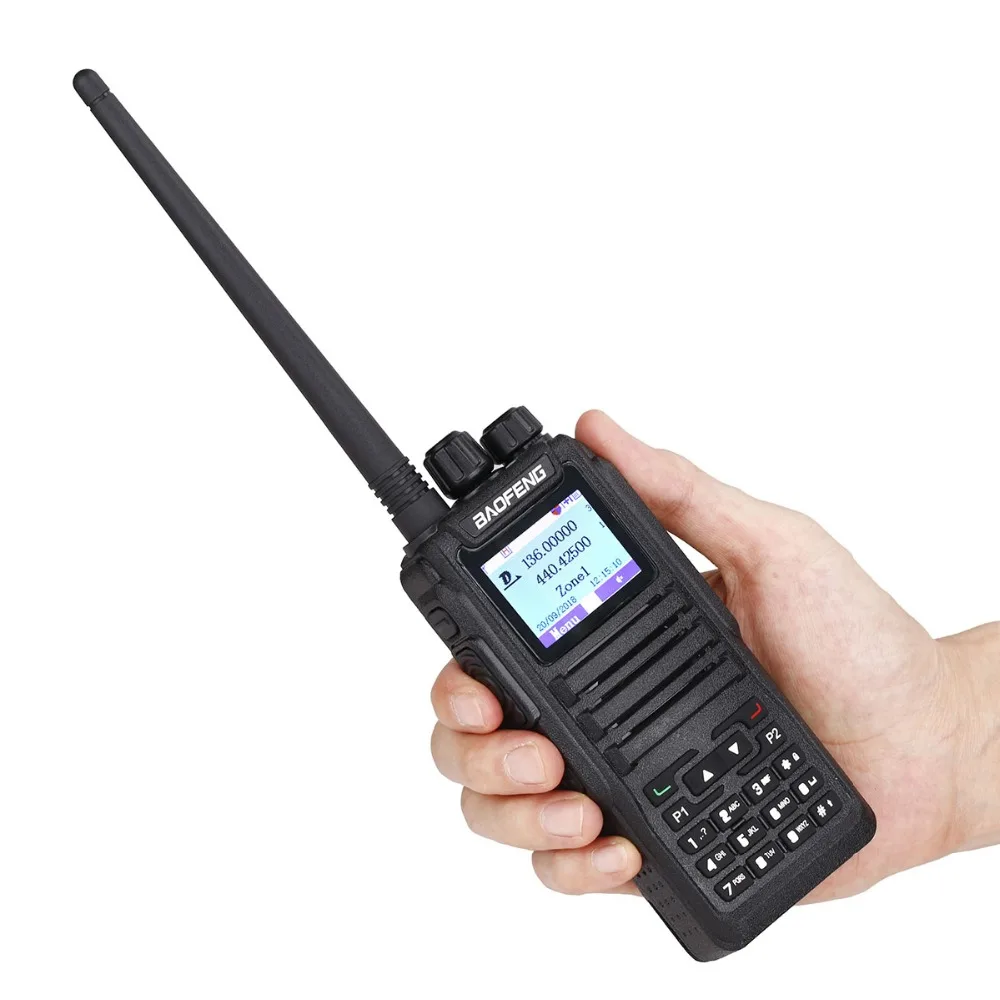

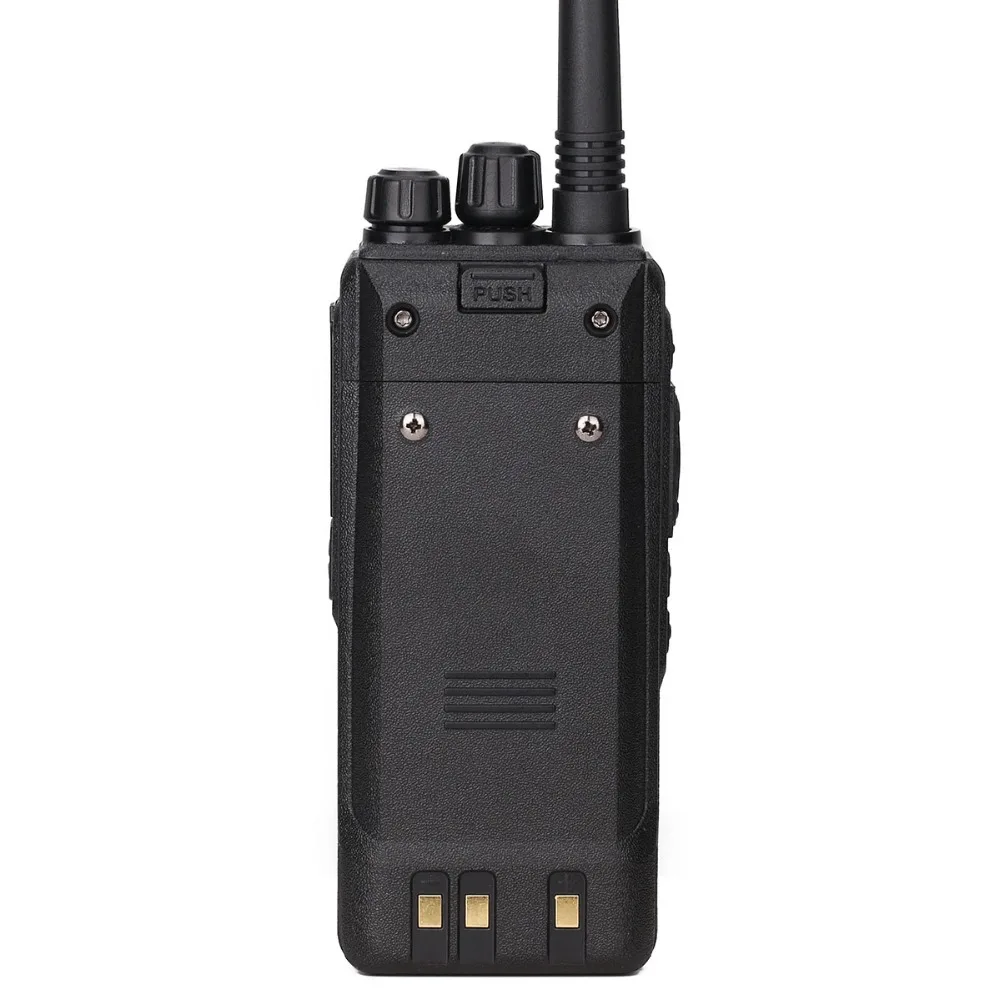

Baofeng DM-1701 Dual Band Dual Time Slot DMR Digital/Analog 3000 Channels DMR Repeater SMS Function Compatible with Motorola Hytera TierⅠ&Ⅱ
Baofeng DM-1701 dmr digital radio frequency range: VHF 136-174 MHZ UHF 400-470MHZ; Up to 3000 channel and 10000 contacts list; 2200mAh battery enable it normal use for about 8-12 hours, standby time for about 150 hours;
Dual watch supports to monitor 2 frequencies at the same time; Dual time slot for point to point give you chance to experience two group calls in one channel under direct model;
Private/Group call match(Mashup) make you call freely with out the without the group restrictions
Digital /Analog mode switchable radio is compatible with Mototrbo Tier 1&2
Support manually programming and PC programming (easily by loading code plug) and software
Main Feature
· Use time-division multiple-Access
· (TDMA)digital function
· Dual time slot for repeater
· Dual time slot for point to point
· Firmware upgradeable
· Lone worker
· Encryption function
· Compatible with for Motorola TierⅠ&Ⅱ
· Single call,group call and all call
· Analog and digital combiend
· Remote kill /stun and activate
· Comply with digital protocol ETSI TS 102 361-1,-2,-3
· Color LCD display
· Up to 3000 channels
· Transmit interruption
· Group call match(promiscuous)
· Private call match(promiscuous)
· CTCSS/DCS
· Emergency Alarm
· Monitor
· VOX
· TOT
· Talkaround
· Backlight
· Keypad Lock
· Password Lock
· Squelch
· Keypad lock
· LED Indicator
· Clock
· SMS function
| General specifications | |
| Frequency | 136-174&400-470MHz |
| Channels | 3000 |
| Frequency Stability | ±1ppm |
| Operating Temperature | -30℃~+60℃ |
| Operating Voltage | 7.4V DC |
| Dimension | 133x 36 x 62mm(no including antenna) |
| Weight | 300g (with battery and antenna ) |
| Battery Type | Li-ion |
| Battery Capacity | 2200mAh |
| Antenna Impedance | 50Ω |
| Audio Impedance | 1W/16Ω |
| Channel Spacing | 12.5KHz |
| Vocoder | AMBE+2™ |
| Transmitter | |
| Power | UHF≤5W, VHF≥4W |
| Transmit current | Analog≤1.6A Digital≤0.9A |
| Standby current | 0.18A |
| FM modulation mode | 11K0F3E/12.5KHz 14K0F3E/20KHz 16K0F3E/20KHz |
| 4FSK digital mode | 12.5KHz(data only):7K60FXD 12.5KHz(data and voice):7K60FXW |
| Modulation distortion | ＜5% |
| Hum and noise | ≥45dB/25KHz ≥40dB/12.5KHz |
| Adjacent channel power | ≤60dB/12.5KHz |
| Audio Response | +1~-3dB |
| Digital Protocol | ETSI-TS102 361-1,-2,-3 |
| Receiver | |
| Analog Sensibility | 0.2µV /12dB SINAD |
| Digital Sensibility | 0.25µV(BER:5%) |
| Adjacent Channel Selectivity | ≤-60dB/12.5KHz |
| Co-Channel Rejection | ≥65dB |
| Spurious Response | ≥70dB |
| Audio Response | +1~-3dB |
| Rated Audio Distortion | ＜5% |
| Audio Power | 1W |
| Modulation | ≥45dB /25KHz ≥40dB /12.5KHz |
Package Contain:
1× BAOFENG DM-1701
1× 2200mAh Li-ion Battery Pack
1× Charger Unit with AC Adapter
1× Antenna
1× Hand Strap
1× Belt Clip
1× Earpiece
1× User Manual
(And other accessory depend on your choice in the link)
