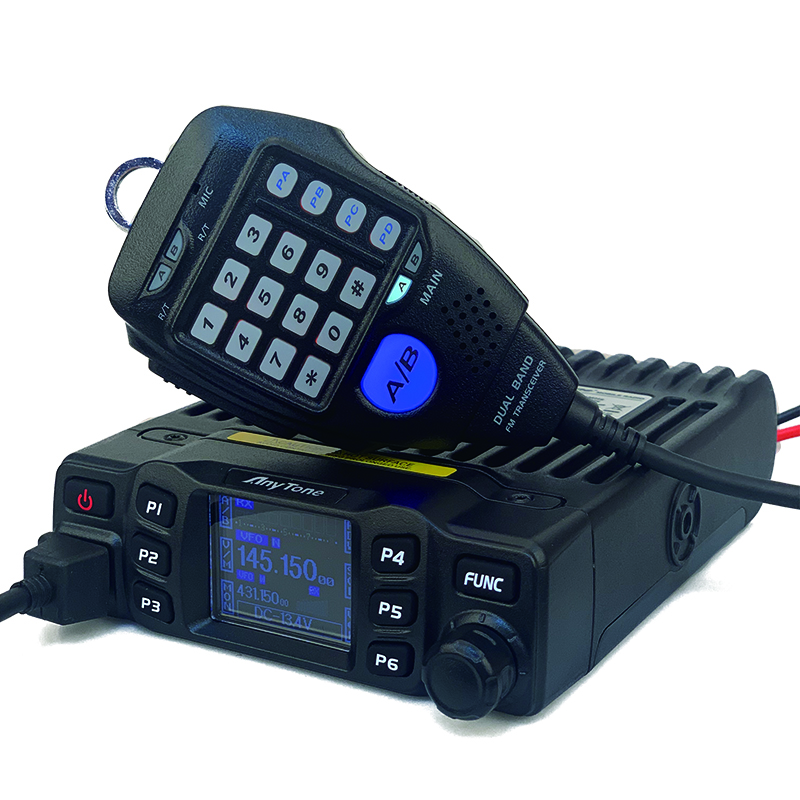

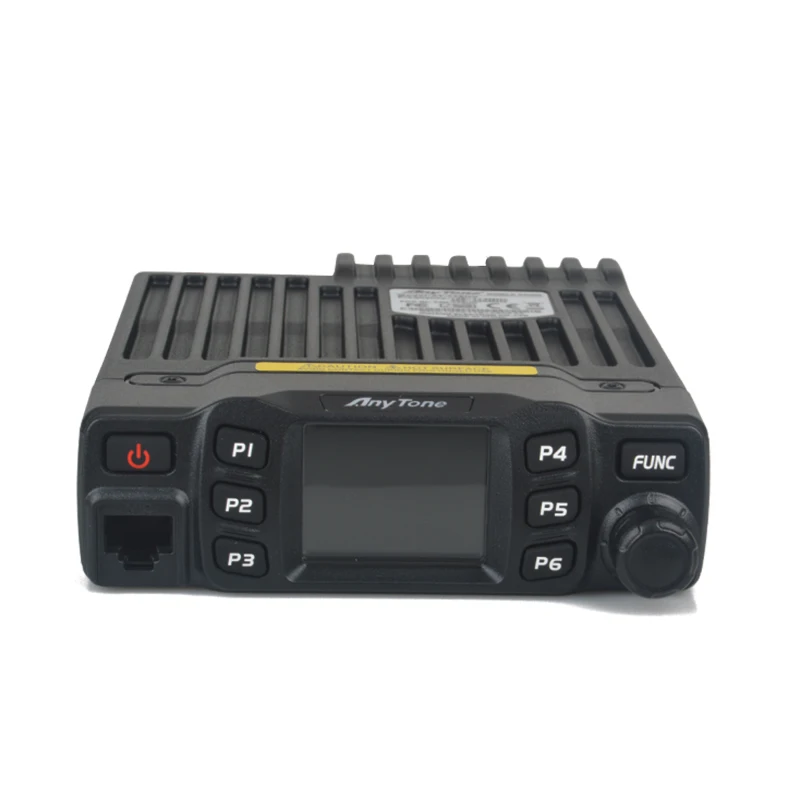

Anytone Walkie Talkie AT-778UV Dual Band VHF UHF Mobile Radio

Anytone Walkie Talkie AT-778UV Dual Band VHF 136-174MHz UHF 400-490MHz 25Watt 200CH FM Mobile Radio

Features:

Adopt Superior quality material, better technology and high quality radiator to ensure stable and durable operation

180 degree rotatable TFT LCD display

Full alloy body for heat radiation

Amateur mode and professional mode for different operation requirement

Distribute buttons reasonably, convenient for operation

Separate band width setting for each single channel, Wide 25K, Middle band 20K, Narrow band 12.5K

200 programmable memory channels, identified by editing name

Separate CTCSS, DCS, DTMF, 5 Tone setting for each single channel, rejecting extra calling from other radios

Various scan functions including CTCSS/DCS scan function

Smart menu control and PC programming control

Voltage level control

LCD brightness control

Automatic power on function

Main unit and microphone key lock function

5 Tone signaling for data transfer, alarm, all call, ANI, remote kill, remote waken

DTMF-ANI or 5 Tone-ANI for automatical calling recognition

Specifications:

General
Frequency Range	Dual Band, VHF 136-174MHz & UHF:400-490MHz
Number of Channels	200
Channel Spacing	25K(Wide band),20K(Middle band),12.5K(Narrow band)
Phase-locked Step	5/6.25/6.25/10/12.5/20/25/30/50KHz
Operating Voltage	13.8V DC ±15%
Squelch	Carrier/CTCSS/DCS
Frequency Stability	±5ppm
Operating Temperature	-20°c~+60°c
Dimensions	124(W)*163(D)*39(H)mm
Weight	About 0.64kg
Receiver(ETSI EN 300 086 Standard testing)
	Wide band	Narrow band
Sensitivity(12dB SINAD)	≤0.25uV	≤0.35uV
Adjacent Channel Selectivity	≥60dB	≥60dB
Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~2.55KHz)
Hum & Noise	≥45dB	≥40dB
Audio distortion	≤5%
Audio Power output	>2W@8 OHM
Transmitter(ETSI EN 300 086 Standard Testing)
	Wide Band	Narrow Band
Power Output	25W/15W/5W
Modulation	16KØ F3E	11KØ F3E
Adjacent Channel Power	≥70dB	≥60dB
Hum & Noise	≥40dB	≥36dB
Spurious Emission	≥60dB	≥60dB
Audio Response	+1~-3dB(0.3~3KHz)	+1~-3dB(0.3~2.55KHz)
Audio Distortion	≤5%

Package Contains:

1× AT-778UV Dual Band Mobile Radio

1× Microphone

1× Mobile Bracket

1× DC power cable with Fuse Holder

1× Screw sets

1× Spare Fuse

1× English User Manual

1× USB Programming Cable
