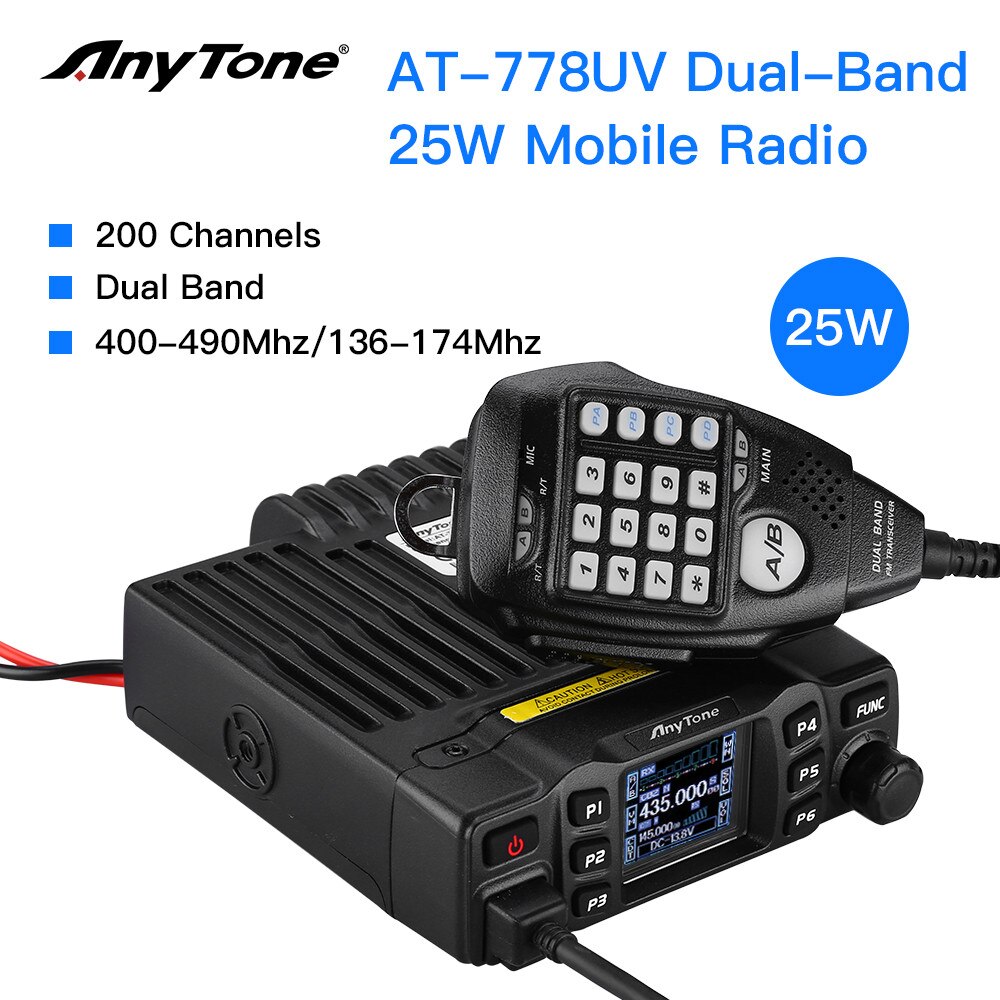

Anytone AT-778UV Dual Band Transceiver Mobile Radio VHF 136-174MHz/UHF 400-480MHz Two Way Amateur Radio with CTCSS DCS

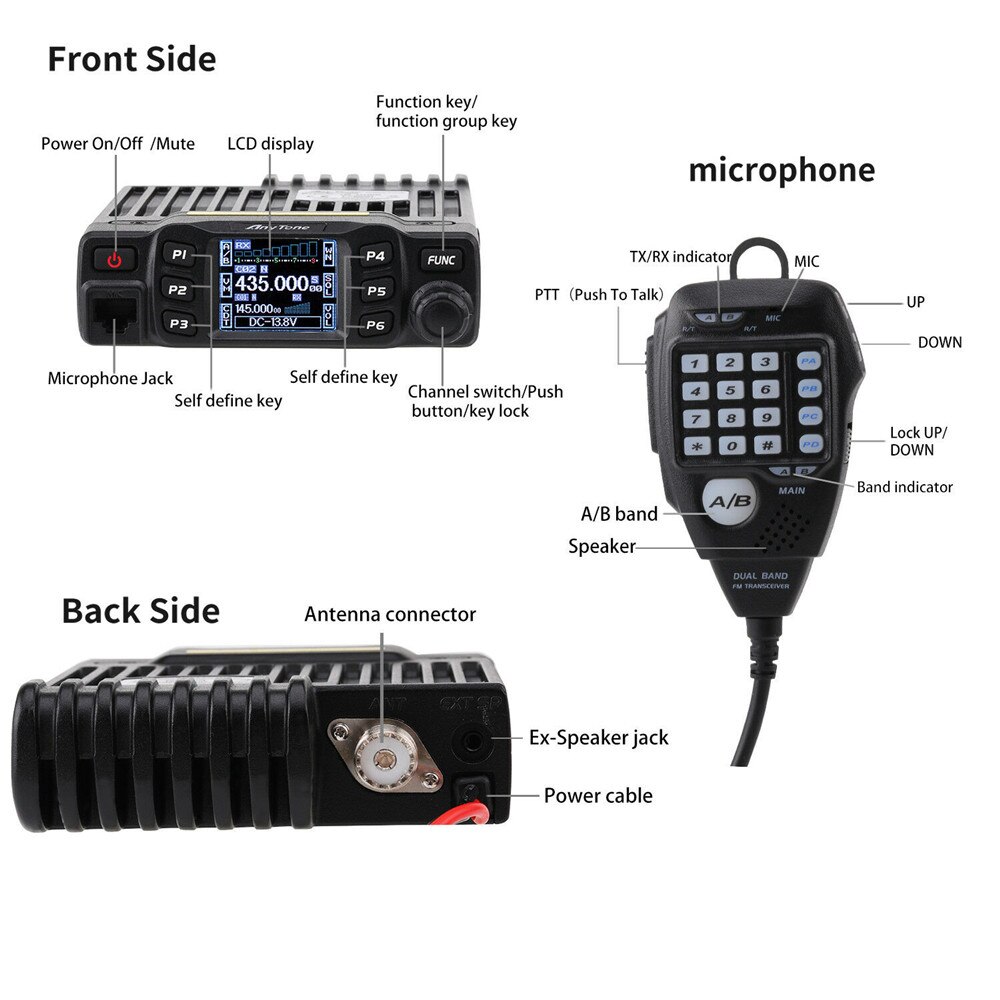

Main Features:
• 25W/15W/5W DualBand VHF/UHF Mobile Radio Transceiver!
• Color LCD. 180 degree rotatable TFT LCD display.• Frequency Range: VHF:136-174MHz UHF:400-480MHz
• Features CTCSS, DCS, 200channels & more!
• Single Call, Group Call, Selective Call and Emergency call are all available.
• Narrow Band compliant,Lighted Keypad mic, Built-in Speakers in both Radio & Mic,Built-In cooling Fan,DC power cable with fuse holder & More!
Functions:
Adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation;
180 degree rotatable FTF LCD display.Full alloy body for heat radiation;
louder speaker inside microphone and radio base;
Amateur mode and professional mode for different operation requirement;
Distribute buttons reasonably, convenient for operation;
Sperate band width setting for each single channel, Wide 25K, Middle 20K, arrow 2.5K;
200 programmable memory channels, identiied by editing name;
Sperate CTCSS, DCS setting for each single channel, rejecting extra calling from other radios;
Various scan functions including CTCSS/DCS Scan function;
Smart menu control and PC programming control;
Voltage level protection;
LCD brightless control;
Automatic power on function;
Main unit and microphone key lock function;
Specifications:
General:
Frequency Range: VHF:136-174MHz UHF:400-480MHz
Number of Channels:200 channels
Channel Spacing:25K(Wide Band) 20K(Middle Band) 12.5K(Narrow Band)
Phase-locked Step:2.5KHz, 5KHz,6.25KHz,8.33KHz,10KHz,12.5KHz,20KHz, 25KHz,30KHz,50KHz
Operating Voltage:13.8V DC ± 15%
Squelch:Carrier/CTCSS/DCS
Frequency Stability:±2.5ppm
Operating Temperature:-20℃~+60℃
Dimensions(W*H*D):124(W)*163(H)*39(L)mm
Weight:About 0.65Kg
Receiver
Sensitivity(12dB Sinad): Wide band: ≤ 0.25μV Narrow band:≤ 0.35μV
Adjacent Channel Selectivity: Wide band: ≥60dB Narrow band:≥60dB
Audio Response Wide band: +1~-3dB(0.3~3KHz) Narrow band:+1~-3dB(0.3~2.55KHz)
Hum&Noise :Wide band:≥45dB Narrow band:≥40dB
Audio distortion:≤5%
Audio power output:>2W@8Ω
Transmitter:
Power Output: Wide band:25W/15W/5W Narrow band:25W/15W/5W
Modulation:Wide band:16KΦF3E Narrow band:11KΦF3E
Adjacent Channel Power:Wide band:≥70dB Narrow band:≥60dB
Hum&Noise:Wide band:≥40dB Narrow band:≥36dB
Spurious Emission:Wide band:≥60dB Narrow band: ≥60dB
Audio Response:+1~-3dB(0.3~3KHz) Narrow band:+1~-3dB(0.3~2.55KHz)
Audio Distortion:≤5%
Package Included:
1x Anytone AT-778UV Dual Band Mobile Radio
1x Handheld Microphone
1x Mounting bracket & screw
1x DC Power cable.
1x User’s manual
