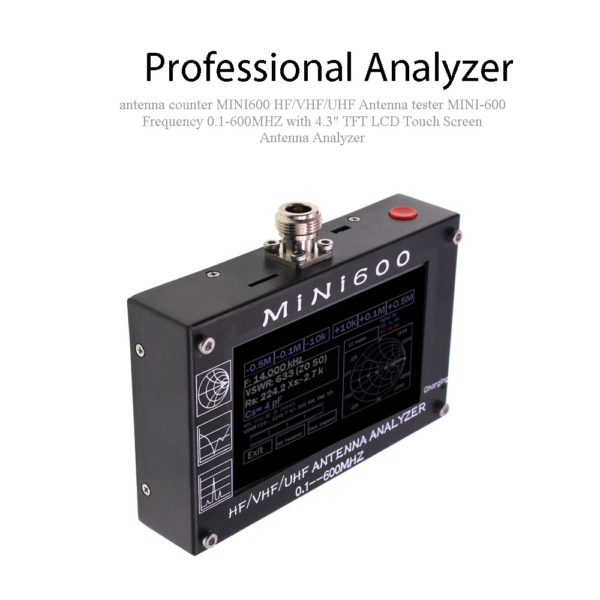

Antenna Counter MINI600 0.1-600MHZ HF/VHF/UHF Antenna tester MINI-600 with 4.3′ TFT LCD Touch Screen Antenna Analyzer

Original price was: $390.00.Current price is: $258.00.

& Free Shipping

Out of stock

Guaranteed Safe Checkout
Sold By: Two Way Radio

Antenna Counter MINI600 0.1-600MHZ HF/VHF/UHF Antenna tester MINI-600 with 4.3′ TFT LCD Touch Screen Antenna Analyzer

MINI600 Antenna Analyzer 0.1-600MHZ HF/VHF/UHF Antenna Counter

UHF N-Type Connector MINI600 Antenna Analyzer 0.1-600MHz HF VHF UHF SWR Antenna Analyzer with 4.3′ TFT Capacitive Touch screen



Functions:

  • Panoramic Scan
  • Measurement
  • Generator
  • Time Domain
  • Multi SWR
  • Setup
  • Find Frequency
  • Tune SWR/Sound
  • View Pictures
  • USB HS Cardrdr

Specifications:

– Frequency Range: 0.1-600MHz

– HF/VHF/UHF continuous coverage

– In/Out Impedance: 50

– Measurement Parameters: SWR, R, +Jx, -Jx, |Z|, Returnloss

– Measurement Mode: Single point measurement, Scanning (Frequency Sweep), and TDR Mode

– SWR Measurement Range: 1.0-1999(Single Point Mode), 1.0-20.0 (Scan Mode)

– Display Modes: Numerical display, curve display, simith chart

– Connector Type: UHF N-type connector

– SMA OPEN-SHORT-LOAD Calibration Kit x 1

– LCD size: 480×272, 4.3′ TFT LCD display

– Touch Screen Type: Capacitive

– All capacitive touch screen on the display – no buttons are needed

– Power Source: USB or Internal Li-ion battery

– Built-in Li-ion charging circuitry and DC-DC booster

– Maximum charging current: 5V/1.5A

– External Storage Method: TF card

– Dimensions: 133 x 85 x 29 mm (Not including prominent ports)

– N.W.: 550g

Pack List:

1× 0.1-600MHz Antenna Counter MINI600

1× N-Male to SO239 Adapter

1× N-Male to SMA-Male Adapter
