2pc Baofeng BF-9700 High Power Walkie Talkie BF 9700 Long Range Walky Talky Professional Ham Radio Uhf Radio Comunicador 10 Km
Main Feature:
1) Output : 7W(H)/5W(M)/1W(L)
2) Frequency Range: 400-520MHz

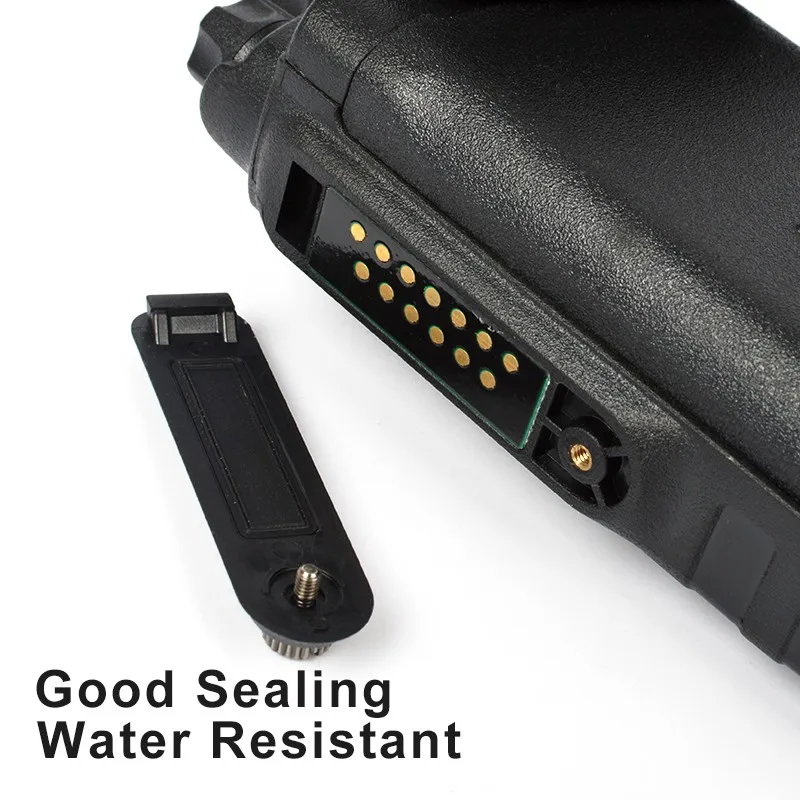

3) IP57 waterproof and dustproof
4) High &Low Power Switchover
5) Battery Saving
6) VOX Function
7) Wide/Narrow Band Selection
8) Auto-Back Light
9) Dual Band Standby
10) Time-out Timer (TOT)
11) 50 CTCSS and 104 DCS Codes
12) Voice Prompt
13) ANI Code
14) PC or Manual Program
15) DTMF Code
16) PTT-ID
17) ATUO Keypad Lock
18) Busy Channel Lock Function
19) Dual Band, Dual Display and Dual Standby
20) Emergency Alarm
21) Priory Scanning Function
22) Relay Forwarding Confirmed (1750 HZ)
23) Low Battery Warning
24) U/V Cross Band Dual Watch
|
Frequency Range: |
|
|
UHF 400.00- 520.00MHz |
|
|
Storage Channel |
16 |
|
Step Frequency |
2.5 KHz,6.5 KHz,10 KHz,12.5 KHz,25 KHz |
|
Rated voltage |
DC 7.4V |
|
Frequency Stability |
±2.5ppm |
|
Work Temperature |
-20 to +60 |
|
Battery Capacity |
2800m Ah (Li-ion Battery) |
|
Battery Life |
About 12 Hours |
|
Frequency Combination |
PLL frequency synthesis |
|
Antenna Impedance |
50 Ω |
|
Wok Mode |
Same Frequency simplex Operation or Different Frequency simplex Operation |
|
Dimension |
135(H)*64(W)*40(D)mm (Excluded Antenna) |
Transmitter
|
Output Power |
7W(H)/5W(M)/1W(L) |
|
Modulation Mode(W/N Band) |
16KΦF3E |
|
Maximum Frequency Deviation (W/N Band) |
≤5 KHz |
|
Spurious Power |
≤7.5 µW |
|
Adjacent channel power |
≤-65dB/≤-60dB |
|
Audio Distortion |
<5 % |
|
SNR |
≥-45dB/≥-40dB |
|
CTSCC/DCS Frequency Deviation(W/N Band) |
0.7±0.1KHz (W), 0.4±0.1KHz (N) |
|
Modulation Sensitivity |
8-12mV |
|
Transmitting Current |
≤1500mA |
Receiver
|
Sensitivity |
<0.20 µ V (12dB SINAD) |
|
Audio Power |
>2W@10% |
|
Inter modulation Interference Resistance |
≥65dB (W), ≥55dB (N) |
|
Adjacent channel Sensitivity (W/N Band) |
≥65dB (W), ≥55dB (N) |
|
Audio Distortion |
5 % |
|
Receiving Current |
≤ 380m A |
