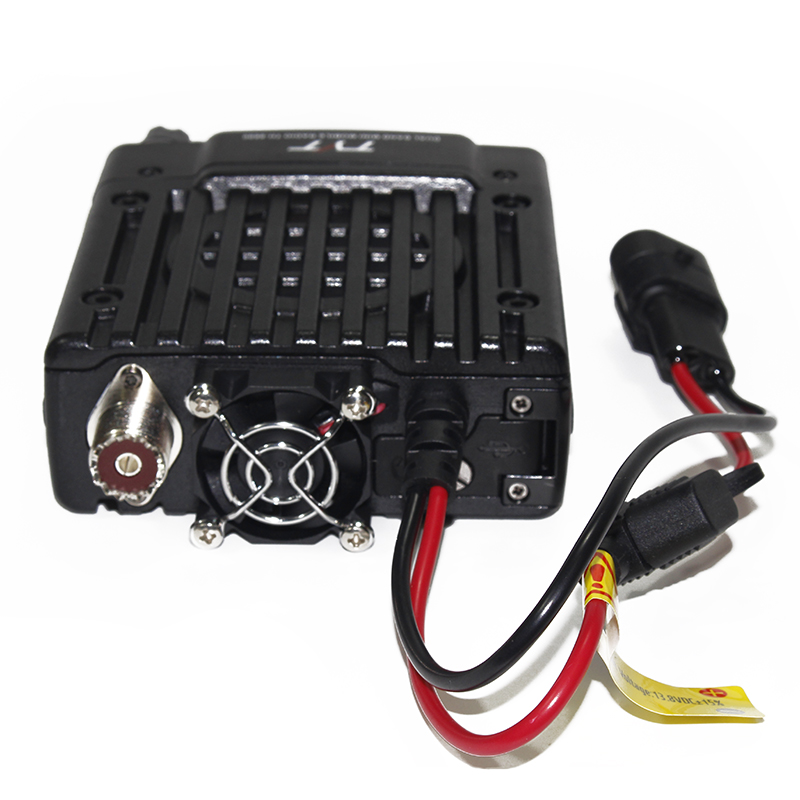

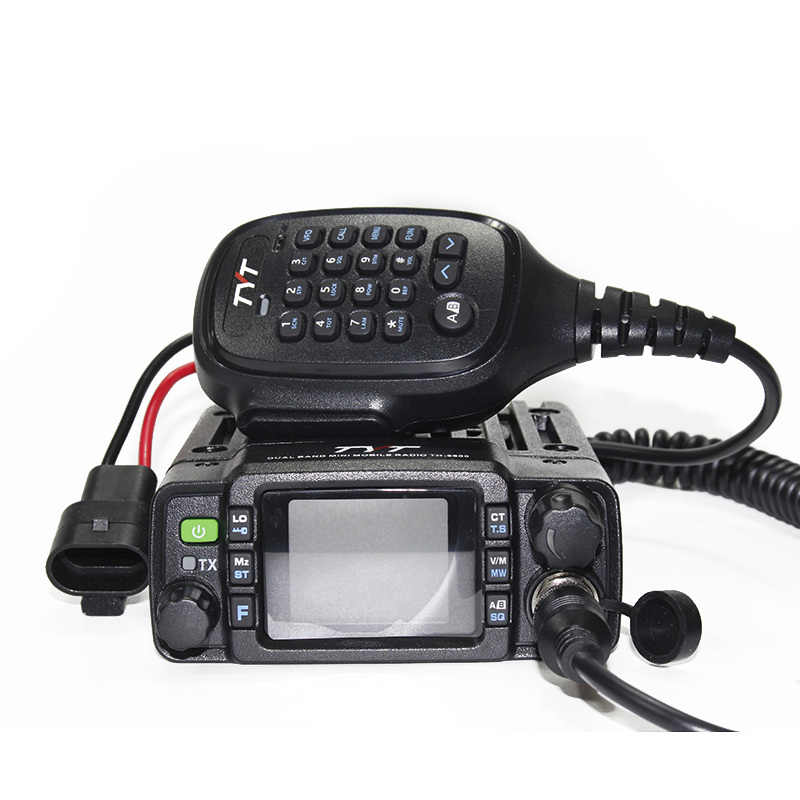

2018 Updated TYT TH-8600 IP67 Waterproof 25W VHF UHF Dual Band Mini Vehicle Mobile Radio
The TYT TH-8600 is IP67 waterproof 25W VHF UHF 136-174MHz/400-480MHz Dual band, dual standy, dual dispaly, LCD color display mobile radio.It is the solid choice for outdoor enthusiasts and motorcycle enthusiasts.In the above vedio, We fully soak TYT TH-8600 car radio in the water of 1.5m deep to test call.
Main Functions
Dual band, dual display and dual standby
25W for VHF and 20W for UHF
200 channels
P1-P4 programmable functional keys
IP67 waterproof
Color LCD display
DTMF
2Tone/5Tone
CTCSS/DCS
1750Hz tone
Remote stun/kill and activate
Specifications:
| General | |
| Frequency Range(MHz) | VHF: 136-174Mhz UHF:400-480Mhz |
| Channel | 200 |
| Frequency Stability | ±1ppm |
| Voltage Rating | DC 13.8V |
| Operating Temperature | -30℃~+60℃ |
| Storage Temperature | -30℃ ~+85℃ |
| Dimention | 107*125*45mm |
|
Transmitter |
|
| Output power | 25W(VHF) 20W(UHF) |
| Transmitting Current | 4A13.8V |
| Standby Current | 0.2A 13.8V |
| FM Modulation | Wide band:16K0F3E |
| Modulation distortion | ＜5% |
| FM Hun and Noise | ≥45dB 25KHz ≥40dB 12.5KHz |
| Adjacent Ch. power | ≥60dB 12.5KHz ≥70dB 25KHz |
| Audio response | +1~-3dB |
|
Receiver |
|
| Frequency stability (-20℃ +60℃,+25℃) | +/-1.0ppm |
| Sensibility | 0.2μV |
| Adjacent Ch. Selectivity | 60dB 12.5KHz 70dB 25KHz |
| Intermodulation | ≥60dB/≥65dB |
| Spurious Rejection | ≥70dB |
| Audio response | +1~-3dB |
| RF Sensitivity | -122dbm(12db SINAD) |
| Audio Distortion | <5% |
| FM Hum and Noise | -40dB 12.5KHz -45dB 25KHz |
| Rated audio | Rated audio |
Package include:
1 x Mobile radio
1 x Power cable
1 x Handheld mic
1 x One pack of screw and accessories
1 x User’s manual
