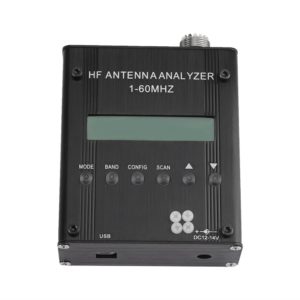

2018 Newest Mini60 Bluetooth Android Antenna Analyzer for Ham Radio Hobbyists

Original price was: $269.00.Current price is: $169.00.

& Free Shipping
Guaranteed Safe Checkout
Sold By: Two Way Radio

2018 Newest Mini60 Bluetooth Android Antenna Analyzer for Ham Radio Hobbyists

This is an antenna analyzer for ham radio hobbyists. It can measure 50 ohms source impedance. It is also a meter for magnetic loop resonance, standing wave ratio, impedance…

Features:
Frequency generation & control: 1-60MHz.
External power supply: 2.1mm power jack(center pin positive).
6 operation buttons, easy and convenient to operate.
Installed black metal case, just connect the power(not included) and then work.
Step size: user configurable increments of 100Hz, 1KHz, 10KHz, and 100KHz.
Support measuring data waveform analysis via connecting computer with USB cable(not included).

Operation:
Manual control option displays SWR and complex impedance at selected frequencies
Automatic scanning results displayed as frequencies of lowest SWR and complex impedance
Battery operated for field use or use external 13.8V wall adapter
Power saving modes
Multi-point calibration for better accuracy

Instrument Capabilities:
Measure antenna electrical parameters: SWR, impedance(resistance+reactance), capacitance, inductance;
Measure feed point impedance;
Measure ground loss;
Adjust antenna tuners and determine loss;
Measure inductors and capacitors;
Measure coax transmission line(SWR, length, velocity factor, approximate Q and loss, resonant frequency, and impedance);
Measure and determine optimum settings for tuning stubs: SWR, approximate Q, resonant frequency, bandwidth, impedance;
Determine characteristic impedance of transmission line;
Determine length of ¼ and ½ wave phasing lines;
Coaxial Cable Loss;
Determine antenna tuner loss;
Measure balun loss;
Measure inductor Q;
Estimate quartz crystal parameters;
Measure magnetic loop resonance and SWR;

Specifications:
Version Type: Ordinary Version / BT Version(Optional)
Frequency Generation & Control: 1-60MHz
Source Impedance: 50 ohms
Stability: (+/-) 100 ppm
Spectral Purity: Harmonics Down >- TBD dB beyond 60MHz
Step Size: User configurable increments of 100Hz, 1KHz, 10KHz, and 100KHz
Usable Measurement Range: SWR: 1.0 to 9.99
Impedance: Approx. 5 to 2000 ohms
RF Output: Adjustable: 2.0 Volts pp (typ)
RF Out: BNC
Connectors: RF
Power Supply(3.7V Li-on Battery NOT Included): Powered by External: DC 12-14V, 500mA
External Power: 2.1mm Power Jack(center pin positive)
USB Interface: Mini USB Receptacle
Item Size: 10 * 5.2 * 2.8cm / 3.94 * 2.05 * 1.1in
Item Weight: 200g / 7.05oz
Package Size: Ordinary Version: 11.5 * 7 * 7cm; BT Version: 12 * 9 * 7cm
Package Weight: 240-252g / 8.47-8.92oz

Note:
The item is without the Battery!
BT Version supports for Android 2.2-4.0 or new version; supports 3-10 inch mobile phone and tablet; supports windows via software.

Package List:
1 * Antenna Analyzer
2 * Adapter



If any questions Or bulk order, please contact Ms. Amy Huang:

Email:  sales@twowayradio.us

WhatsApp / Skype: +8613860123881

Tel: 86(592)5995025

Fax: 86(592)3720556
