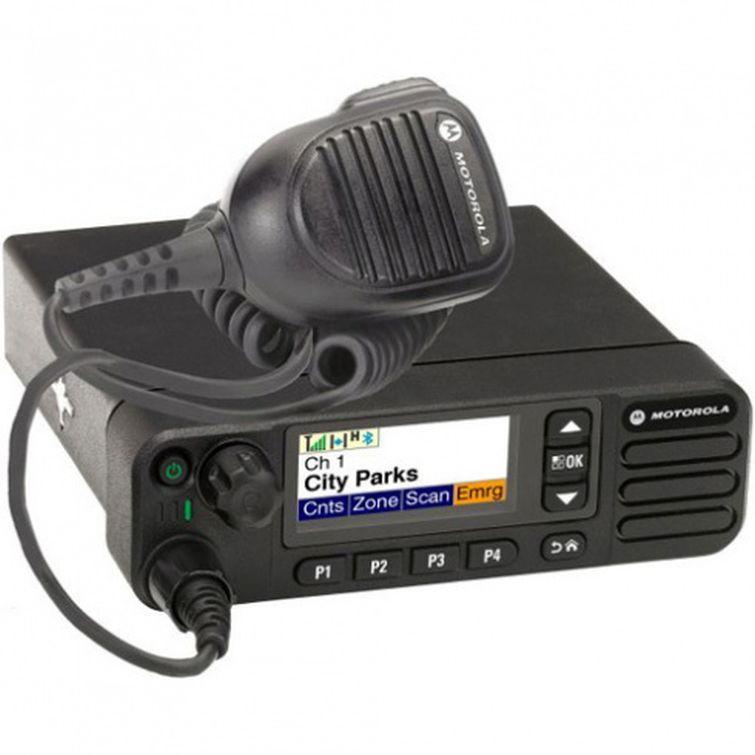

Motorola DM4601 GPS VHF UHF Digital Mobile Two Way Radio
The Motorola DM4601 is a top of the range advanced digital mobile radio packed with features. Available in UHF or VHF, GPS or non-GPS models, the DP4601 is the perfect mobile radio to unlock the full potential of your MOTOTRBO digital radio system.
The Motorola DM4601 is GPS enabled. For more details on this feature, please contact us.
Over 1000 channels and integrated bluetooth audio and data capabilities are included as standard in the DM4601 coupled with a standard 2 year warranty.
The Motorola DP4601 is analogue interoperable (analogue compatible), allowing you to operate on analogue frequencies with your existing equipment until you are ready to make the switch to a full digital system.
When fitted to a desktop power supply and an external base station aerial and you have a instant base station radio with the capability of miles of coverage.
If you need a magnetic mount aerial for your vehicle, please add one above. You can also find them in the accessories section. If you have any questions about fitting or need one of our engineers to fit your new equipment, please get in touch.
Specification | UHF or VHF |
Frequency Range (MHz) | UHF 403-470MHz or VHF 146-174MHz |
Typical RF Output | Low Power 1-25 W High Power 25-40 W |
Channel Spacing (kHz) | 12.5/25 |
No. of Channels | 32 |
Dimensions (H x W x D) | 51mm x 175mm x 206mm |
Weight | 1.8kg |
Current Drain | Standby 0.81 A max Rx @ Rated Audio 2 A max Transmit 1-25W: 11.0A max 25-40W: 14.5A max |
Each Motorola DM4601 includes:
- Motorola DM4601 UHF or VHF mobile radio body
- Remote speaker microphone RSM
- Motorola user guide
- Programmed to your own OFCOM licence frequencies- Free of charge
- Low profile mounting bracket
- Power cable
- 2 year waranty
Features of the Motorola DM4601 Mobile Radio:
- 1000 Channels
- GPS enabled (DP4601 only)
- Full 5 line intelligent display with day and night modes
- Integrated bluetooth audio and data capabilities
- Capacity plus
- Ancillary products (emergency switch, external speaker, desktop microphone, visor microphone)
- IP site connect
- Voice announcement
- Transmit interrupt
- Lone worker
- Memory channel
- Tough accessory connectors and plugs
- USB interface supported
- 4 programmable buttons for easy use
- Multi-coloured LED indicators for clear visual operating feedback
- Individual and group call capabilities
- Remote monitor features
- Analogue and digital modes
- Programmable text messaging
- PTT ID
- Competitive price
From the delivery driver crisscrossing the city to the sanitation crew clearing streets, your employees work smarter and safer with the MOTOTRBO™ DM4000 Series mobile two-way radio.
This fully-featured mobile transforms your enterprise, delivering unrivaled voice and data communications with integrated Bluetooth audio and data*, integrated GPS*, text messaging and a full 4-line colour display with day/night mode to make reading work order tickets and text messages easier. You also get best-in-class audio that includes Intelligent Audio and a customisable voice announcement feature.
* DM4601 model only
Features
Best-in-class audio
Loud front-facing speaker and Intelligent Audio feature automatically adjusts the radio volume according to the environment’s noise level
Large, full colour display
Enhanced 5-line display features a flexible menu-driven interface. Icons and large easy-to-use navigation buttons ease message reading and menu navigation
Day/night display mode
Day mode displays improved resolution for easier viewing even in broad daylight, while night mode makes the screen easier to read in dark environments
Flexible configurations and easy use
Available in UHF and VHF frequency bands with 1000 channel capacity, large, easy to access volume knob and four programmable buttons with option to use one as an emergency button
Integrated GPS
Locate mobile work teams using integrated GPS (DM4601 model only)
Bluetooth data
Share real-time information by connecting radios to Bluetooth-enabled data devices (DM4601 model only)
Productivity-enhancing data applications
Features the industry’s largest application developer program to enable a wide variety of customised applications including: location tracking, work order ticket management, Bluetooth data, email gateways, dispatch, telephony and man-down
Text messaging
Send update messages to team members when radio communications need to be delivered without interrupting workers or guests
Embedded Bluetooth audio
Enables connectivity with wireless accessories including Motorola’s unique Operations Critical Wireless earpieces designed for rugged and reliable communications (DM4601 model only)
Capacity Plus
Single-site digital trunking system that maximises the capacity of your MOTOTRBO system. Use it to enable a high volume of voice and data communication for over a thousand users at a single site
IP Site Connect
A digital solution that uses the internet to extend the voice and data capabilities of MOTOTRBO. Use it to link up to 15 sites for communication among geographically dispersed locations, to create wide area coverage or enhance coverage at a single site with physical barriers
Emergency button
Orange P4 button can be optionally programmed to send an alert to a supervisor or dispatcher during an emergency situation
Transmit interrupt
Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it’s needed
Basic or enhanced privacy
Built-in scrambling for increased security (Programmable)
Features
UHF1 (403-470MHz) LP/HP; VHF (136-174MHz) LP/HP; IP54 rated
1000 channels
4-line alphanumeric numerical display & icons
3 watt built-in loudspeaker for clear audio
Intuitive menu-driven user interface
Rugged front & rear accessory connectors
Accessory connector supports USB interface
Large, easy-to-use volume/channel knob
4 programmable buttons to increase operator efficiency
Multi-coloured LED indicators provide clear feedback on radio operating status
Quick, easy-to-use Group, Individual and All-call capability
PTT ID helps improve communications efficiency and system discipline
Remote Monitor features help ensure employee safety and enable fast assessment of remote user status
Elegant channel scanning schemes help ensure calls are received first time every time
Intelligent Audio feature automatically adjusts the radio volume according to the environment’s noise level
Built-in Bluetooth for wireless and data
Voice announcement of channel change and feature activation
5 Tone analogue feature support
Basic / Enhanced Privacy
VOX Capability
Lone Worker
IP Site Connect (Multiple Site Connectivity) and Capacity Plus (Single Site Trunking)
The basic package includes
Compact Microphone (RMN5052_)
Low Profile Trunnion (RLN6466_)
Power Cable (HKN4191_)
In-box Documentation (QRG option, Safety, RTTE Leaflet)
