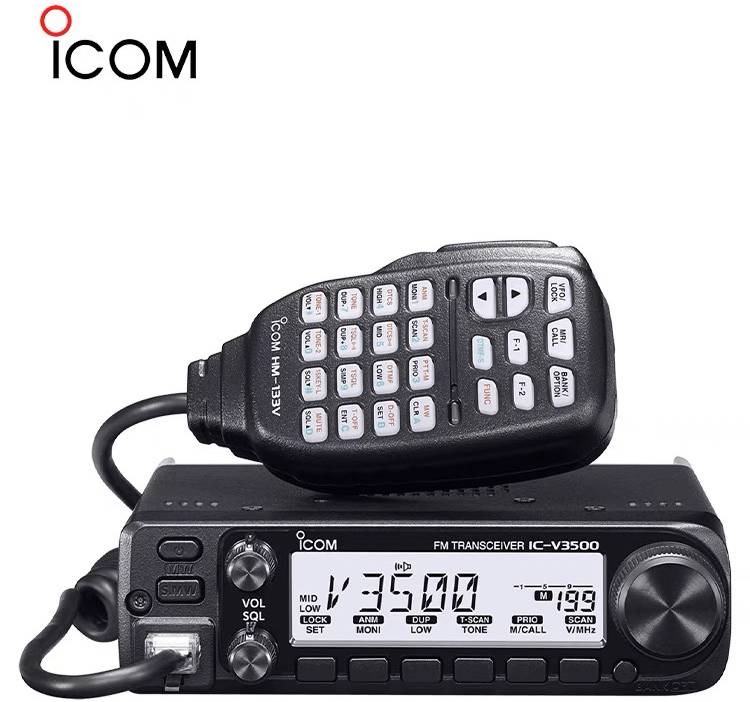

ICOM IC-V3500 2M VHF FM Mobile Transceivers IC-V3500

144 MHz FM TRANSCEIVER, Monoband, 2M, FM Mobile, TX 144-148 MHz, RX 136-174 MHz, 65 W, White Backlit LCD, Hand Microphone, 13.8VDC

The new ICOM IC-V3500 VHF FM Transceiver boasting enhanced features and a rugged, easy-to-use design. The white, back-lit LCD features a spacious layout that enhances readability and reduces eyestrain. This 2M analog FM mobile transceiver can transmit from 144-148 MHz at a full 65 W of stable output power and receive from 136-174 MHz. Enjoy new features like instant mute and loud, crisp speaker output with the new Audio Volume Boost feature. Includes new emergency safety functions that are required for some commercial use applications.

65 W Powerful RF Output Power

The IC-V3500 is a rugged 2 m mobile transceiver providing powerful 65 W* of output power. The output power level is selectable in four steps and the selected power is displayed.
* Output power differs depending on version and specific regulatory requirements.

Modern White Display and Simple Operation

While the IC-V3500 retains a simple user interface despite additional function updates for an easy to use radio. The white LCD backlight offers a better readability suitable for mobile operation. The bottom of the display indicates the available functions of the front panel buttons directly below the display.

4.5 W Loud and Clear Audio Output

The IC-V3500 provides class-leading 4.5 W loud audio from the built-in speaker. By improving the frequency response of the speaker and increasing opening slit, the voice is clearly audible and easy to hear.

Instant Volume Loud and Mute Functions

You can temporarily change the volume to a preset level with a simple operation. It can be used as a One-touch mute function by preset volume to zero.

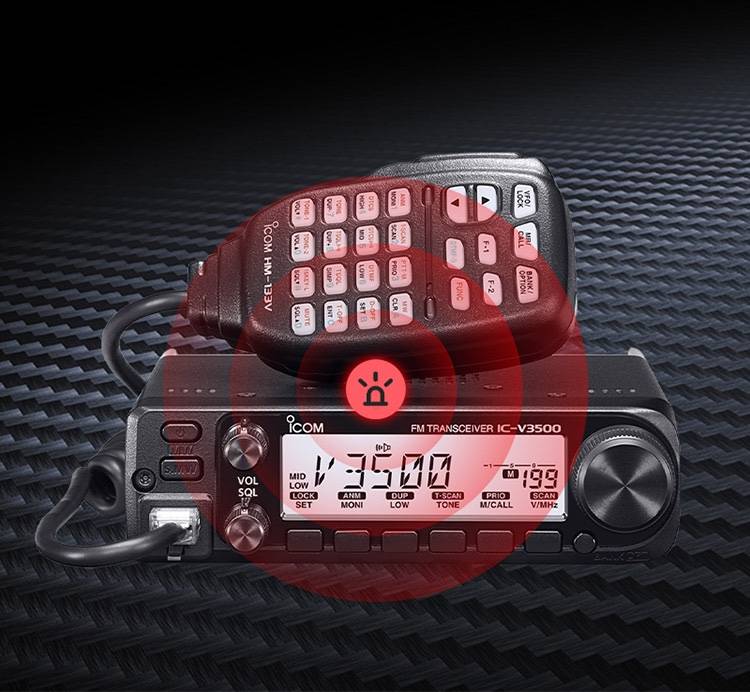

Emergency Call and Alert Functions

In the case of an emergency, the emergency call function alternatively sends an emergency beep and hot microphone audio to let the receiver to know that an emergency has occurred. At the same time, an emergency alarm sounds from the IC-V3500 speaker to notify the people around you of your existence and situation.


Model: ICOM IC-V3500

Frequency Range:
136-174MHz (RX)
144-148MHz (TX )
Number of memory channels: 207 channels (including 1 call and 6 scan edges)
Emission type: F2D, F3E (FM)
Frequency stability: ±3ppm
Power Requirements: 13.8V DC ±15%
Antenna impedance: 50Ω
Working temperature range: -10℃~+60℃
Size: 140*40*157mm
Weight: 1.1kg
Output power: 65W.25W.10W.5W
Maximum frequency deviation: ±5kHz/±2.5kHz (W/N)
Stray radiation: less than -60dBc
Microphone impedance: 600Ω (8-pin modular)

More practical functions

– A total of 207 memory channels with 6-character channel names.
– Built-in CTCSS and DTCS encoder/decoder for repeater access.
– Dynamic library link scan function, scans all memory channels in the selected library.
– Rugged construction, conforms to MIL-STD 810 G specifications.
– Up to 16 DTMF auto-dial memory channels.
-Most functions can be operated by hand microphone.
– Instant volume loud and mute function.
-Priority monitoring function.
– Wide/narrow channel settings.
– Mains voltage display
More features are waiting for you to discover. . . . . .

Number of memory channels 207 channels (including 1 call and 6 scan edges)
Type of emission F2D, F3E (FM)
Frequency stability ±3 ppm
Power supply requirement 13.8 V DC ±15%
Current drain (approximate) Tx 65 W 11 A
Rx Max. audio/Stand-by 1.5 A/0.4 A
Antenna impedance 50 Ω (SO-239)
Operating temperature range –10°C to +60°C; 14°F to +140°F
(W × H × D; Projections not included)
140 × 40 × 118 mm;
5.5 × 1.6 × 4.6 in
Weight (approximate) 1.1 kg; 2.4 lb

Shipping list:
IC-V3500 vehicle radio*1
hand microphone*1
Host bracket*1
Power cord*1
Screw bag*1
Spare fuse*1
